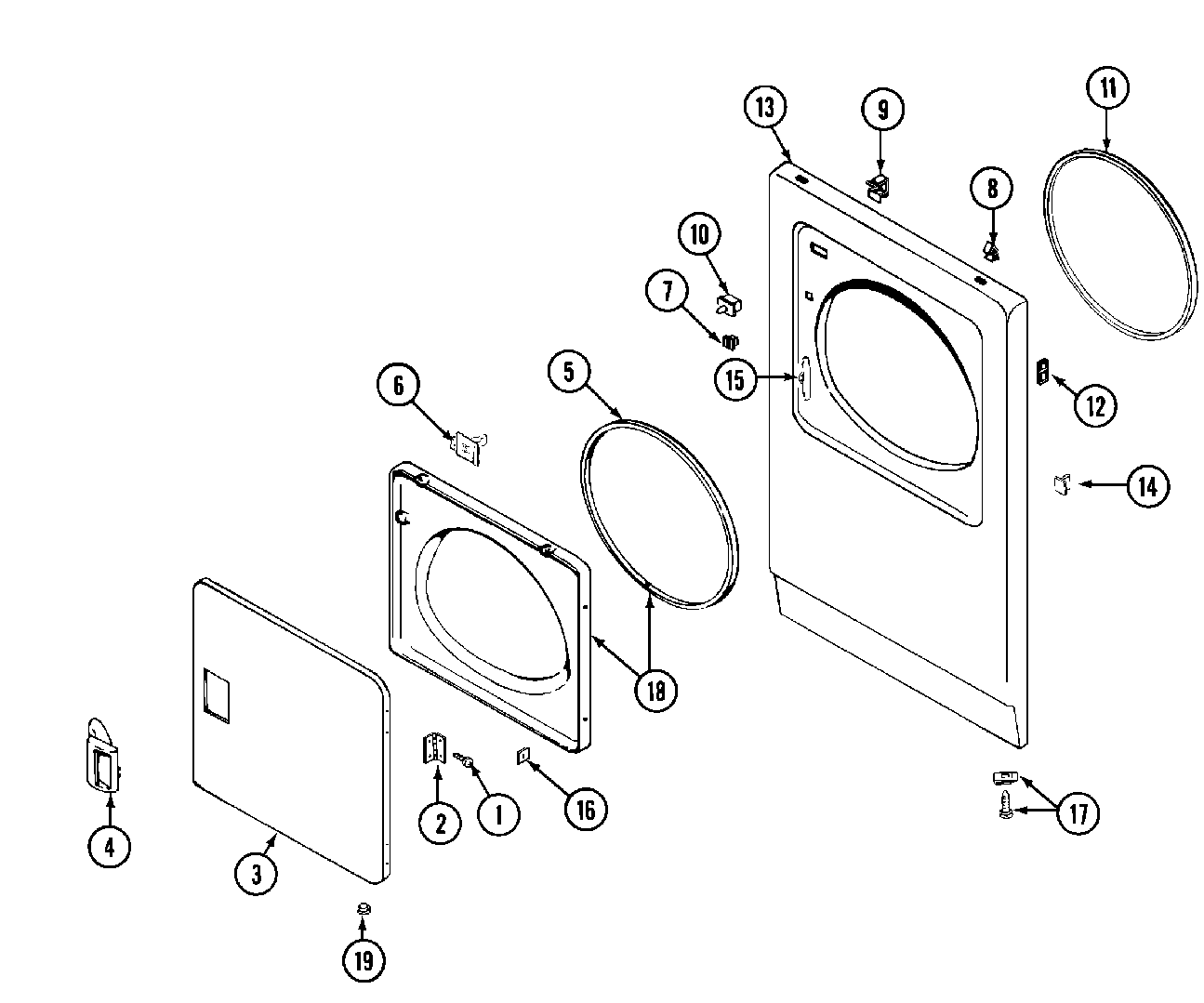

MDE13MNADW 04 – DOOR

MDE13MNADW 04 – DOOR

Written by

in

MDE13MNADW 04 – DOOR

Products

PositionProduct
002MAY 33001230
003MAY 33001240
005MAY 33001131
006WP33001305 Whirlpool Door Strike Assembly
007MAY Y304578
008MAY 212982
009MAY Y310376
010W10169313 Whirlpool Door Switch Kit
011MAY 314937
013WP98008544 Whirlpool Screw Assembly
014DOWEL PIN FOR HANDLE
015MAY 33001175
016CLIP, DOOR LINER
017WP22001496 Whirlpool Screw
018MAY 33001243
019MAY 33001132
