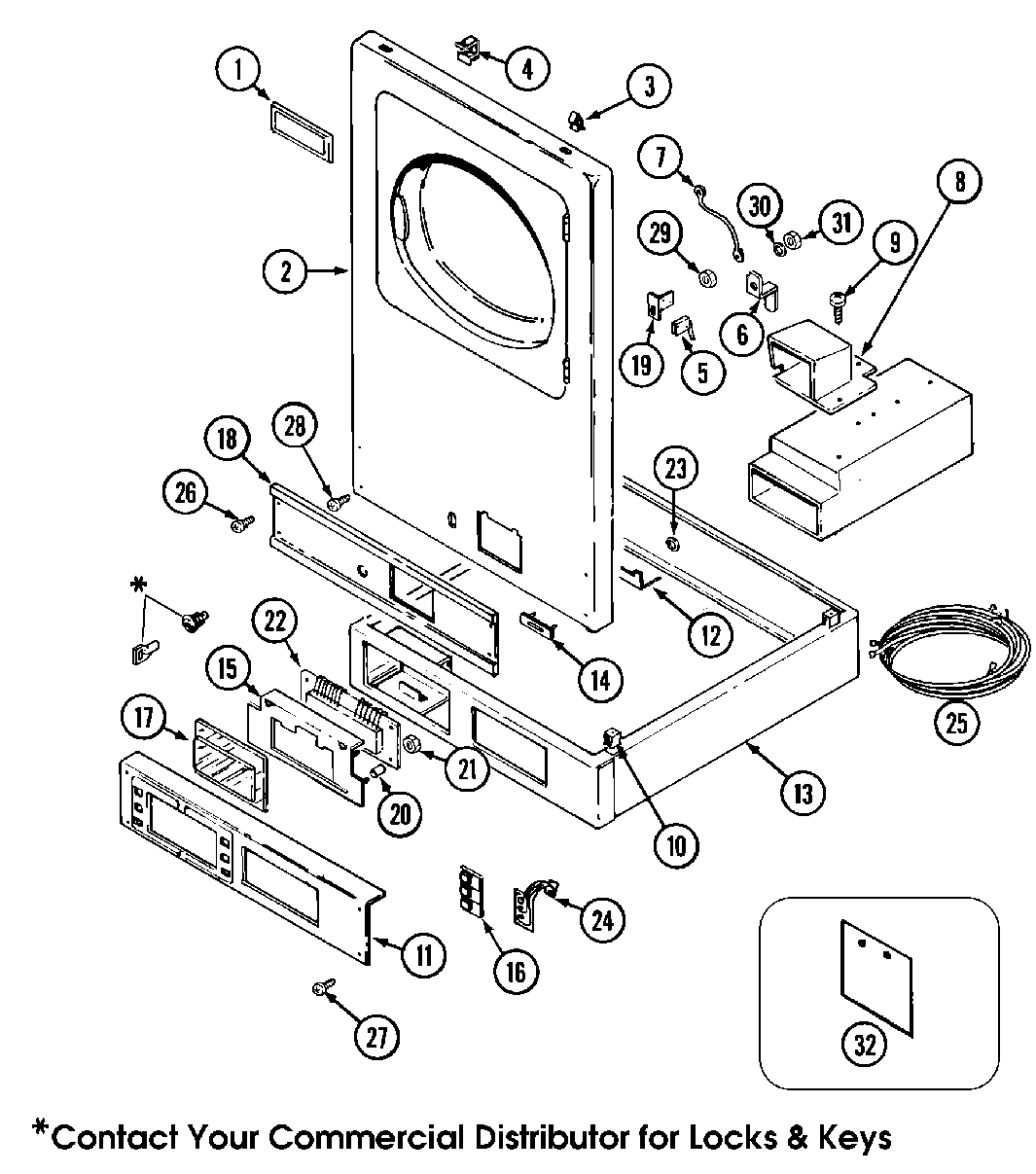

MDE13PRBCW 01 – CONTROLS & UPPER PANEL

Products

Position	Product
001	MAY 33001711
002	WP98008544 Whirlpool Screw Assembly
002	(WHT)
003	MAY 212982
004	MAY Y310376
005	MAY Y306232
005	MAY 912012
006	206637 Whirlpool Lock Kit
007	MAY Y303981
009	MAY 314654
010	MAY 310933
012	MAY Y313561
012	MAY 314631
012	MAY Y310632
014	MAY 306233
015	MAY 33001201
015	MAY 910186
016	WP33001156 Whirlpool Button
017	MAY 33001209
019	MAY 314634
020	MAY 33001204
021	M0282005 Whirlpool Nut
022	CIRCUIT BOARD ASSEMBLY
023	MAY Y052659
024	MAY 33001200
025	MAY 314522
025	CABLE STRAP-HARNESS TO BASE
026	SCREW, FRONT & EXTRUSION
027	WPW10131119 Whirlpool Screw
028	MAY 314666
029	W11395752 Whirlpool Nut
030	LOCKWASHER, LOCK CAM
031	MAY 22001355
032	MAY 33001157
033	DOWEL PIN FOR HANDLE
