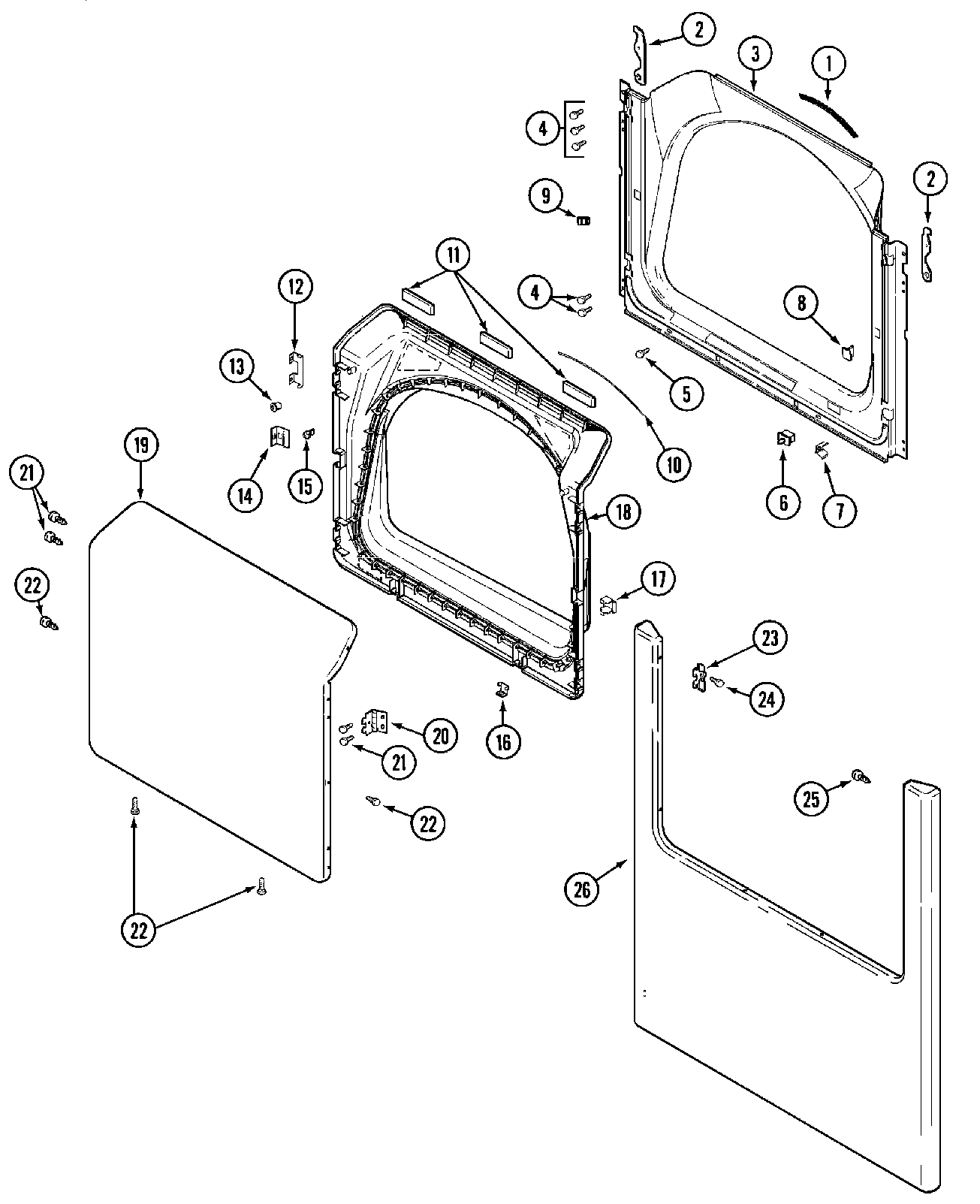

MDE14PDACL 04 – DOOR

Products

Position	Product
001	MAY 33001767
002	MAY 22002033
003	MAY 33001778
003	SHROUD (ALM)—-NA
005	MAY 33001768
006	W10169313 Whirlpool Door Switch Kit
007	MAY 33001760
009	MAY Y304578
010	WP33002094 Whirlpool Door Seal
011	MAY 33001268
012	MAY 22002038
013	MAY 33001771
014	WP33001793 Whirlpool Bracket Spring
015	MAY 33001761
016	MAY 22002039
017	MAY 33001763
018	MAY 33001750
018	INNER DOOR/ W SEAL (ALM)
019	MAY 22001980
019	MAY 22001979
020	WP33001759 Whirlpool Door Hinge
021	WP98006631 Whirlpool Screw
022	SCREW
022	MAY 22002063
023	WP33001764 Whirlpool Cover
023	COVER, HINGE HOLE (ALM)
024	WP33001787 Whirlpool Screw
025	WP22002012 Whirlpool Screw Assembly
025	MAY 22002244
026	MAY 22002241
026	DOWEL PIN FOR HANDLE
026	22002836 Whirlpool Oven Front Primary Panel
026	MAY 22002087
027	MAY 22002239
027	WP22001496 Whirlpool Screw
027	MAY 213280
027	W11573574 Whirlpool Screw
