MDE16CSAGW 08 – CONTROL CENTER

MDE16CSAGW 08 – CONTROL CENTER

Written by

in

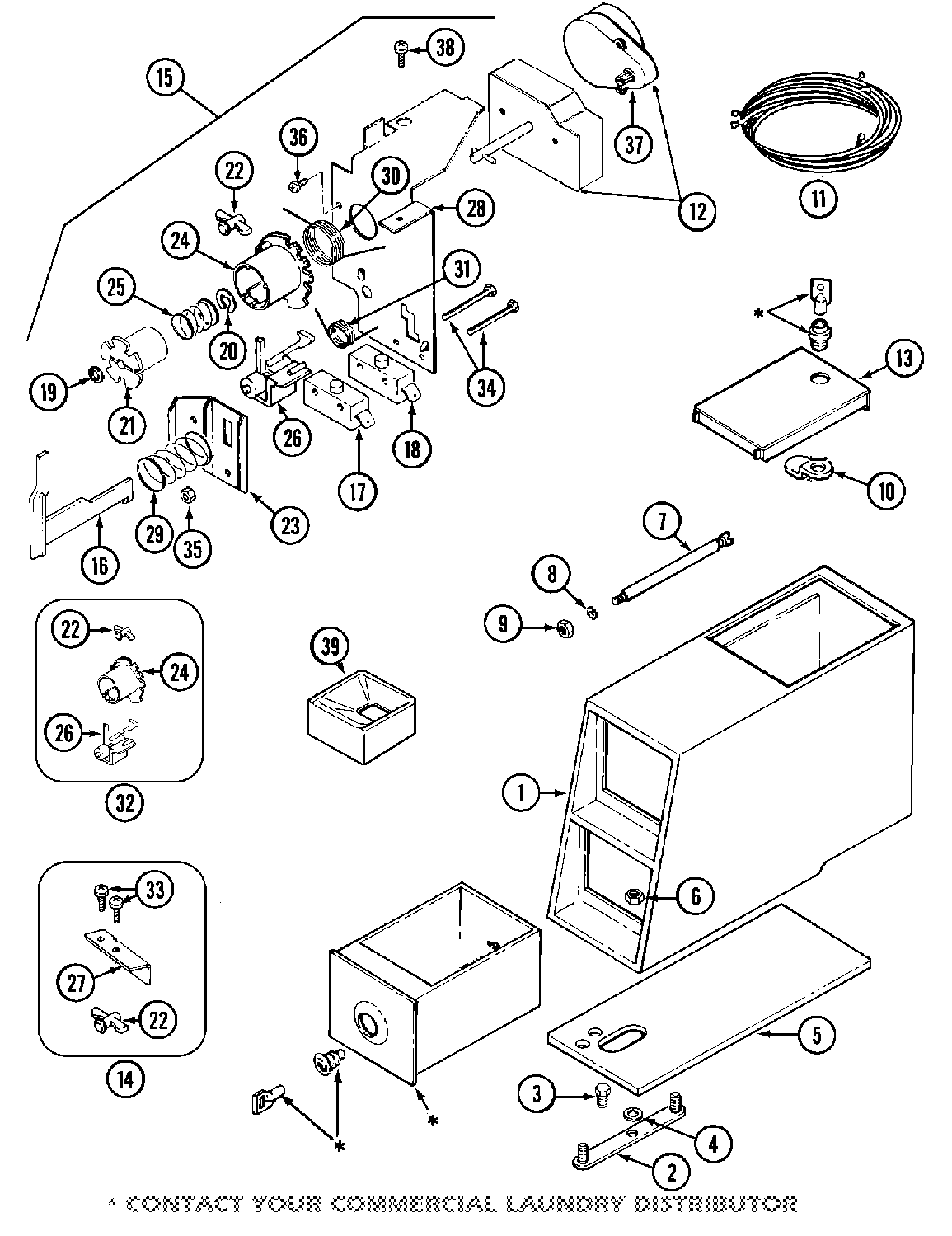

MDE16CSAGW 08 – CONTROL CENTER

Products

PositionProduct
001VAULT, COIN (ALM) (ORIGINAL COIN VAULT NLA USE
002MAY 22001810
003WP90767 Whirlpool Screw
004MAY 910309
005MAY 22002072
005(ALM)
006WP62739 Whirlpool Nut
007BOLT, LOCKING
008MAY 910387
009Y052721 Whirlpool Nut
011MAY 33001195
012MAY 33001155
012MAY 33001274
013MAY 22001881
013MAY 22001910
013MAY 22001882
013MAY 22001883
013(ALM)
014MAY 33001688
015MAY 33001276
015MAY 33001275
01633002968 Whirlpool Slider
017MAY 305798
018MAY Y305799
020MAY Y312270
021MAY 314330
022MAY 314547
022TIME ADJUSTMENT PEG
023MAY 314339
024MAY 314546
025WP211065 Whirlpool Timer Spring
026MAY 314548
027MAY 33001708
028MAY 33001207
031MAY 314332
032MAY 306104
033W11684507 Whirlpool Screw
034MAY 315277
035MAY Y052634
036MAY 910708
037MAY Y308991
038WPW10139210 Whirlpool Screw
039WP22002478 Whirlpool Case
039MAY 22002533
039MAY 22002534
040MAY 22001917
041DOWEL PIN FOR HANDLE
041(REMOVED AT SERIES 21)
