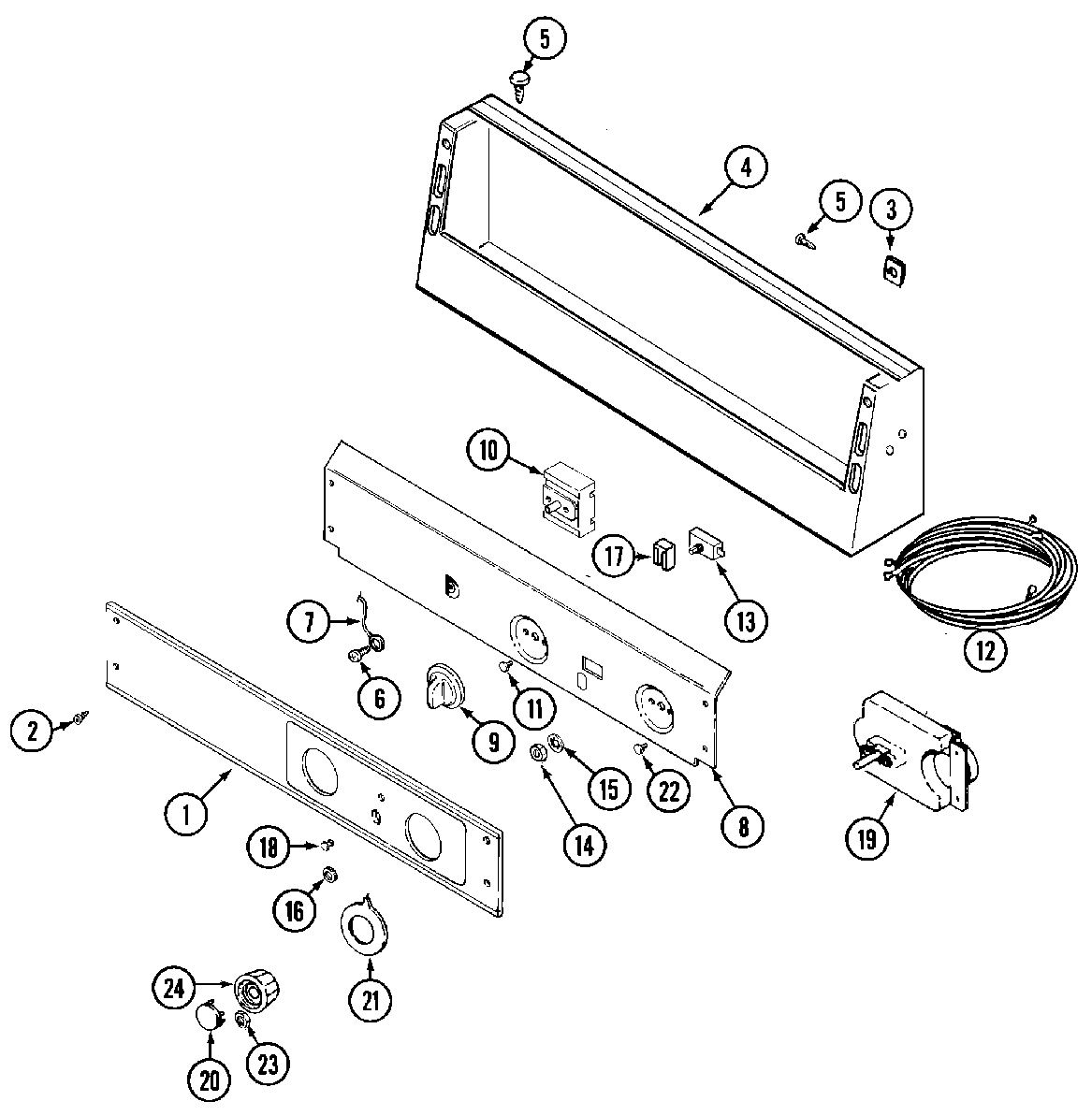

MDE16MNAYW 01 – CONTROL PANEL

MDE16MNAYW 01 – CONTROL PANEL

Written by

in

MDE16MNAYW 01 – CONTROL PANEL

Products

PositionProduct
001MAY 33001967
002WPW10131119 Whirlpool Screw
003MAY 215003
004MAY 33001957
005WP489128 Whirlpool Refrigerator Screw
006WP489399 Whirlpool Refrigerator Screw
007MAY 205810
008MAY 33001968
009MAY 306938
010MAY 33002276
010WPW10327105 Whirlpool Cycle Switch
012MAY 33001969
012MAY 33002241
012DOWEL PIN FOR HANDLE
012MAY 33002242
013WPW10149462 Whirlpool Push-to-Start Switch
014MAY Y312706
015WPW10139799 Whirlpool Washer
016MAY Y312702
017LIGHT, INDICATOR
017W10139459 Whirlpool Light Assembly
018WP215564 Whirlpool Indicator Lens
019MAY Y305758
019MAY 305214
020WPW10133501 Whirlpool Cap
021MAY 33001500
022WP488234 Whirlpool Air Conditioner Screw
023W10155650 Whirlpool Nut
025MAY 16009021
