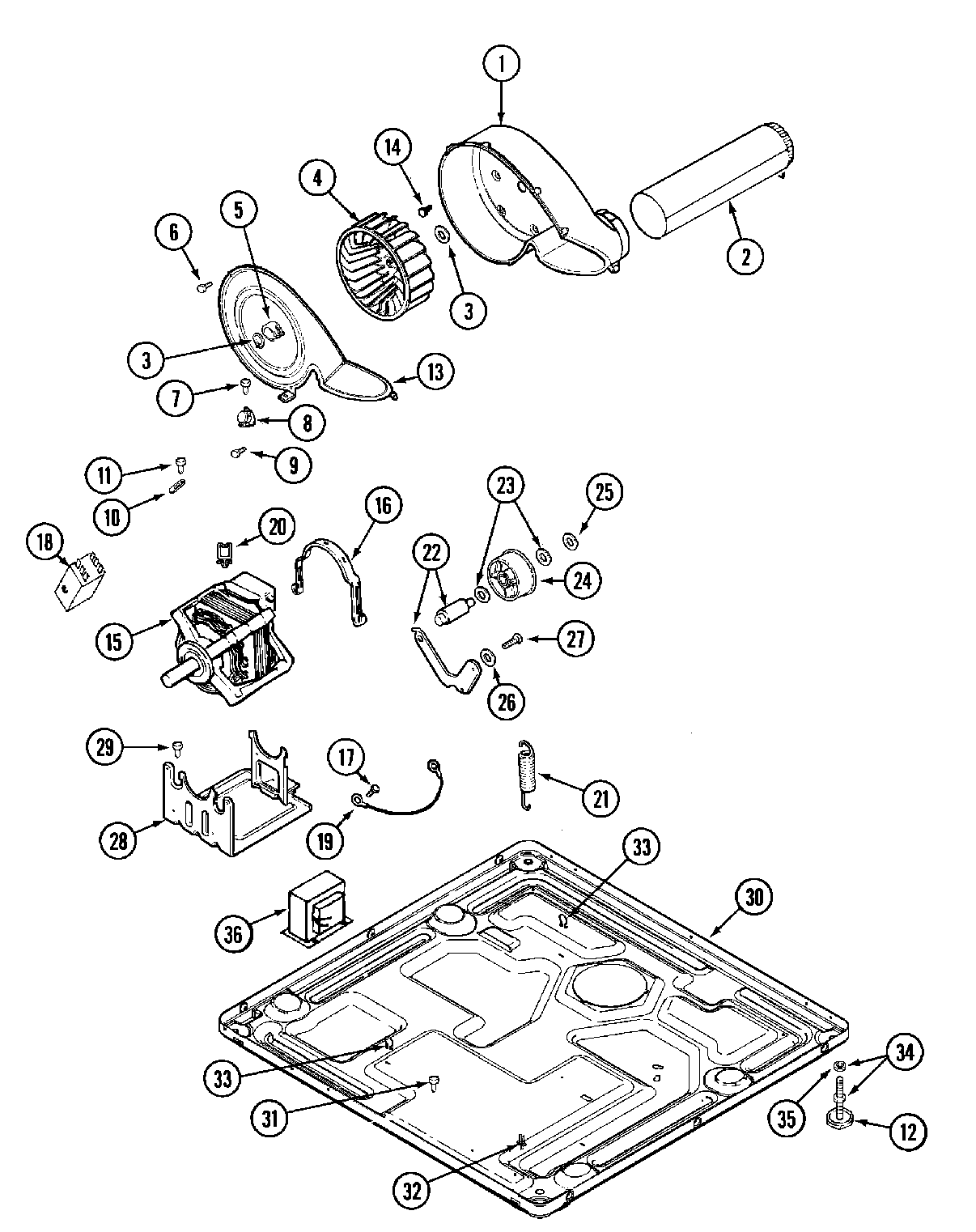

MDE16MNAZW 06 – MOTOR DRIVE

Products

Position	Product
001	WP33001789 Whirlpool Blower Housing Assembly
002	MAY 33001800
002	W11573574 Whirlpool Screw
003	WP9703438 Whirlpool Snap Retaining Ring
004	33001790 Whirlpool Blower Wheel
004	WP33002797 Whirlpool Wheel
005	WP312967 Whirlpool Clamp
006	WP3400065 Whirlpool Refrigerator Screw
008	WP694674 Whirlpool Cycling Thermostat
008	PART NOT USED
008	MAY 33001306
009	WP489128 Whirlpool Refrigerator Screw
010	WP33001762 Whirlpool Dryer Thermal Fuse
012	WPY314137 Whirlpool Rubber Foot
013	MAY 33001796
014	MAY 314818
015	MAY 33002463
015	MAY 33001945
015	W10197708 Whirlpool Drive Motor Assembly
015	MAY 33002462
015	W10410997 Whirlpool Drive Motor
015	WP33002795 Whirlpool Drive Motor
015	MAY 33002237
015	MAY Y305758
016	WPY015825 Whirlpool Motor Clip
017	MAY 910343
018	MAY 33001854
019	MAY 901220
020	MAY Y310376
021	33002459 Whirlpool Idler Spring
021	MAY 33002461
021	MAY 33002157
022	MAY 33001782
023	MAY Y312527
024	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
025	WP354987 Whirlpool C-Clip
026	WP315772 Whirlpool Sleeve
027	WPY014874 Whirlpool Screw
028	MAY 33001752
028	MAY 33002466
029	MAY Y313561
030	DOWEL PIN FOR HANDLE
030	MAY 33002622
031	WP3177991 Whirlpool Screw
032	MAY 315471
033	MAY 410490
034	W10176519 Whirlpool Leveling Feet
035	WP62739 Whirlpool Nut
036	MAY Y313559
036	WP90767 Whirlpool Screw
036	MAY 33001821
