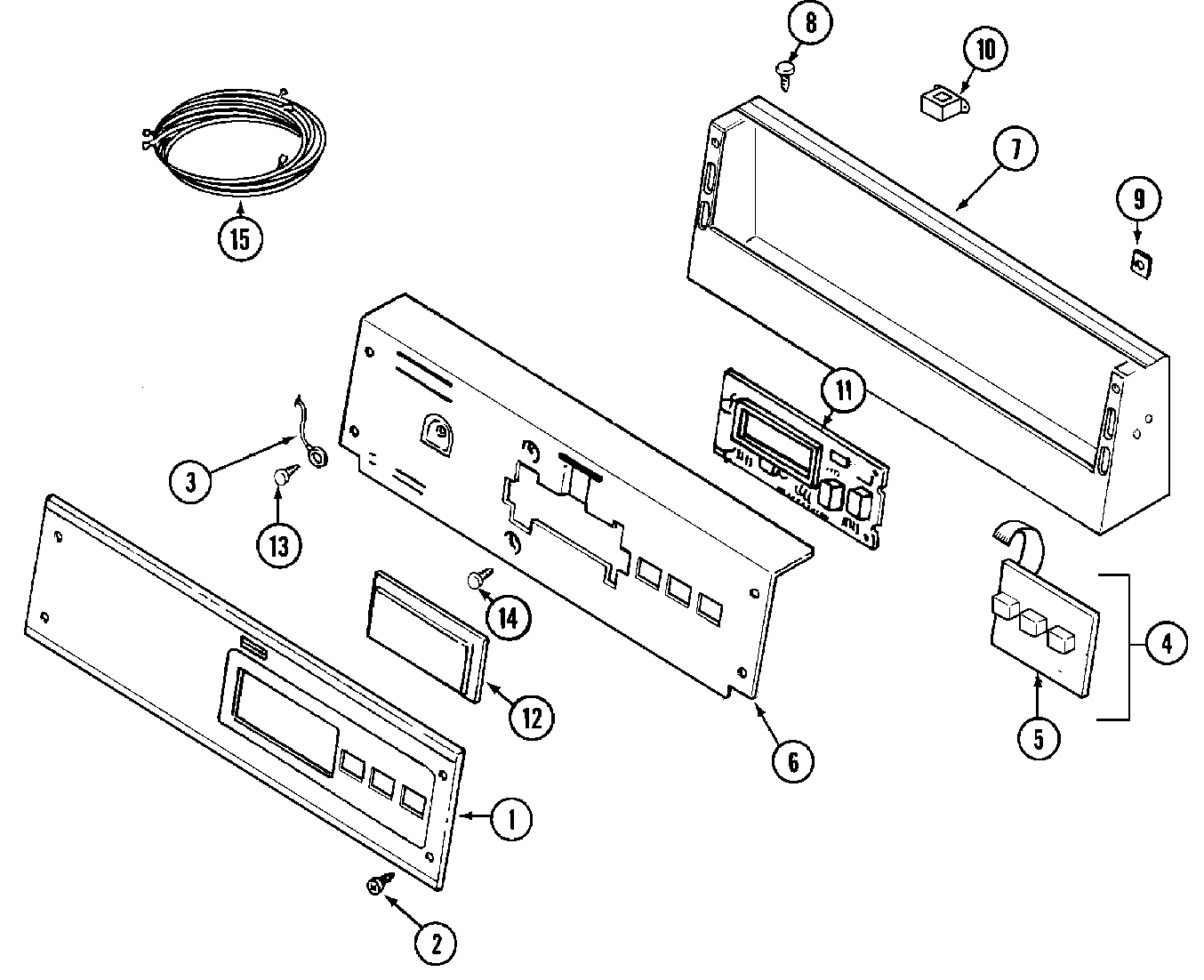

MDE16PDAYQ 05 – CONTROL PANEL (BSQ)

MDE16PDAYQ 05 – CONTROL PANEL (BSQ)

Written by

in

MDE16PDAYQ 05 – CONTROL PANEL (BSQ)

Products

PositionProduct
001MAY 33001784
002WPW10131119 Whirlpool Screw
003MAY 22001959
004W10756178 Whirlpool Screw
004BACKUP PLATE W/SWITCH
005WPW10424308 Whirlpool Push Button
006DOWEL PIN FOR HANDLE
006MAY 33002429
006MAY 22001511
007MAY 22003088
007MAY 22002889
008WP489128 Whirlpool Refrigerator Screw
009MAY 215003
010MAY 22001960
010MAY 211251
01074005230 Whirlpool Oven Lock Nut (8-32)
011MAY 33001204
011M0282005 Whirlpool Nut
012WPW10131114 Whirlpool Cover Assembly
013WP489399 Whirlpool Refrigerator Screw
014SCREW, CIRCUIT BOARD
015MAY 33001878
