MDE16PDAYW 04 – DOOR

MDE16PDAYW 04 – DOOR

Written by

in

MDE16PDAYW 04 – DOOR

Products

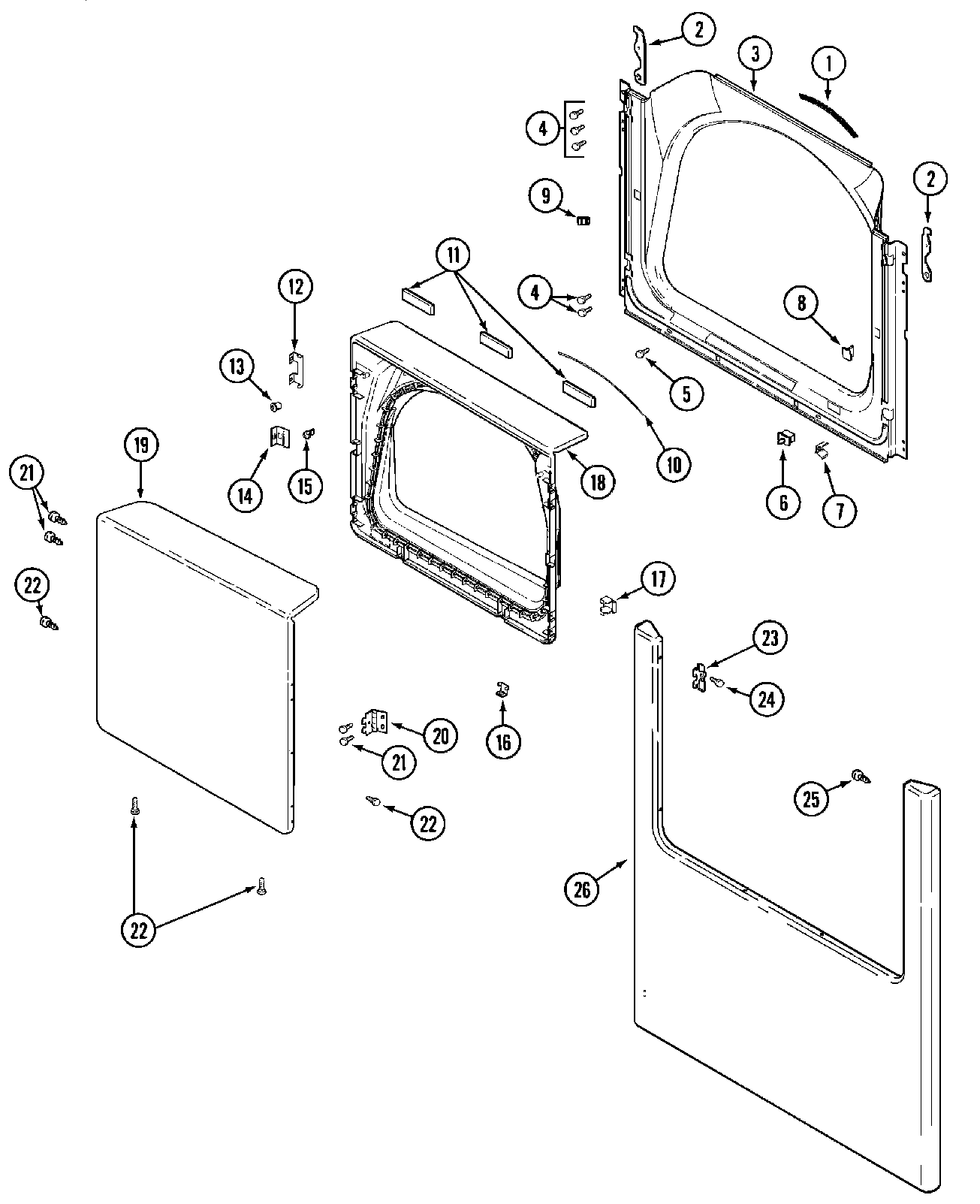

Position	Product
001	MAY 33001767
002	MAY 22002247
003	MAY 33001900
003	MAY 33001954
004	W11573574 Whirlpool Screw
005	MAY 33001768
006	WPW10139323 Whirlpool Door Switch
006	W10169313 Whirlpool Door Switch Kit
007	MAY 33001760
009	MAY Y304578
010	WP33002094 Whirlpool Door Seal
011	MAY 33001268
012	MAY 22002038
013	MAY 33001771
014	WP33001793 Whirlpool Bracket Spring
015	MAY 33001761
017	MAY 33001763
018	DOOR, INNER (ALM)
018	MAY 22002039
019	MAY 33001904
020	WP33001759 Whirlpool Door Hinge
021	WP98006631 Whirlpool Screw
022	SCREW
022	MAY 22002063
023	WP33001764 Whirlpool Cover
023	COVER, HINGE HOLE (ALM)
024	WP33001787 Whirlpool Screw
025	MAY 22002244
025	WP22002012 Whirlpool Screw Assembly
026	MAY 33001901
026	MAY 22002239
026	MAY 213280
026	DOWEL PIN FOR HANDLE
