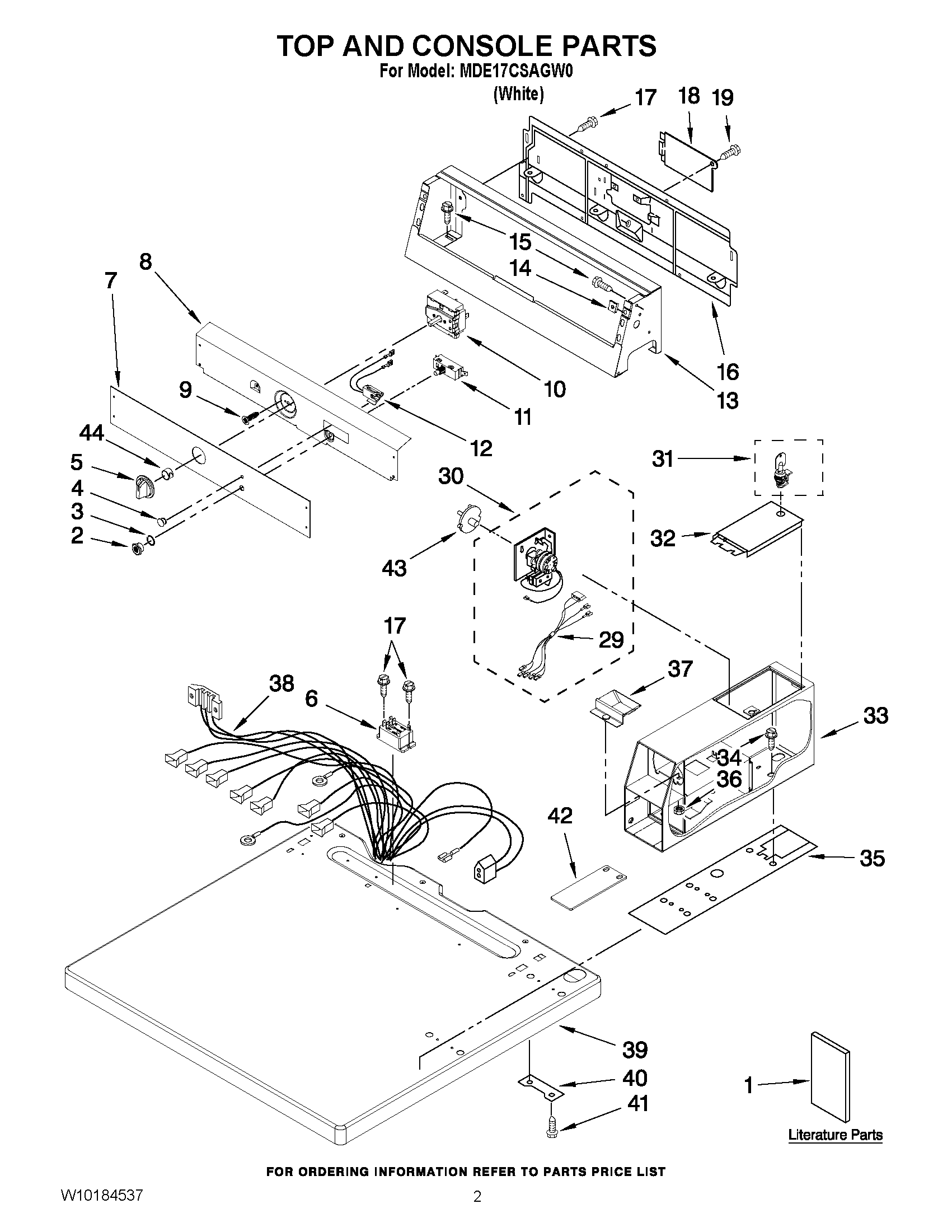

MDE17CSAGW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10184537
1	MAY W10184536
1	MAY W10163150
2	MAY W10146429
3	MAY W10139799
4	INDICATOR LIGHTS ASSEMBLY
5	KNOB
6	RELAY, HEATER 230V
7	MAY W10135190
8	MAY W10124213
9	SCREW
10	MAY W10137919
11	MAY W10181931
12	LAMP, INDICATOR
13	MAY W10205153
14	NUT, "U"
15	MAY W10139210
16	MAY W10135273
17	SCREW
18	MAY W10119283
19	SCREW
29	MAY W10111029
30	MAY W10135270
31	ASSEMBLY, CAM & SECURITY LOCK
32	ASSEMBLY, SERVICE DOOR
33	MAY W10136649
34	BOLT, METER CASE MOUNTING (SCREW)
34	METER CASE MOUNTING (BOLT)
35	CUSHION, METER CASE
36	MAY W10139060
37	MAY W10133509
38	MAY W10111042
39	TOP (WHITE MDE20PDAGW0)
40	MAY 3347825
41	SCREW
42	MAY W10153513
43	TIMING CAM (CAM – 4 PIN)
44	MAY W10140928
