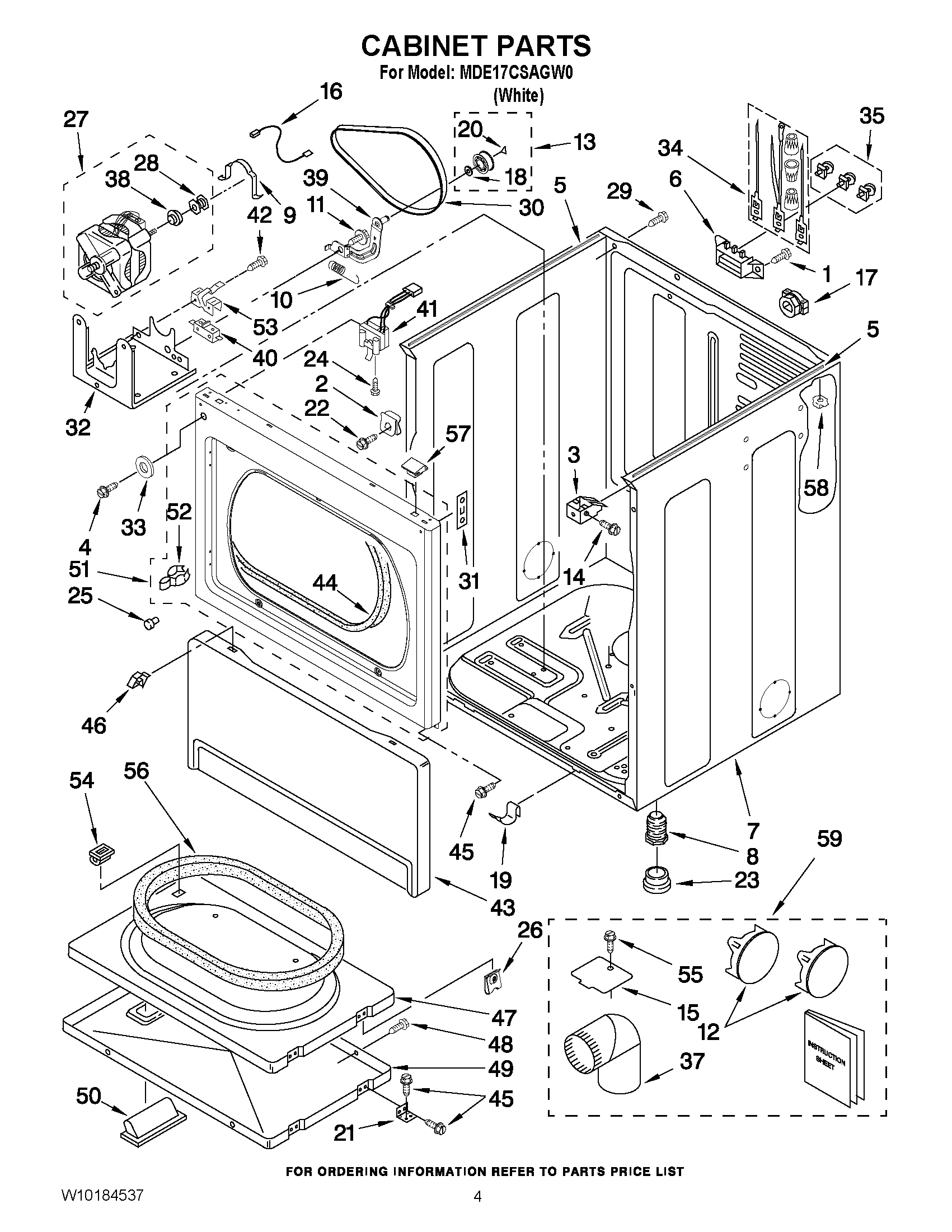

MDE17CSAGW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279818
NI	MAY 279810
1	SCREW, 10-16 X 1/2
2	NUT, "U"
3	CLIP, FRONT PANEL
4	SCREW
5	SEAL-FOAM (IEC)
6	MAY 3397659
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	MAY W10080670
12	MAY 697750
13	ASSEMBLY, PULLEY
14	SCREW
15	MAY 3394331
16	MAY 3394081
17	Clip, Strain Relief
18	MAY 233520
19	Clip (2)
20	WASHER, TRI RING
21	Hinge & Pin Assembly (2)
22	MAY W10131119
23	BOOT, FOOT
24	MAY W10080540
25	BUMPER
26	Nut, Inner Door (4)
27	Motor Assembly (50 Hz.)
28	PULLEY, MOTOR
29	MAY 8533974
30	BELT, DRIVE
31	MAY 3390902
32	MAY 3387118
33	WASHER
34	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
35	MAY 279393
37	MAY 279731
38	MAY 3393657
39	MAY W10118754
40	MAY 8318457
41	MAY W10237959
42	MAY W10118188
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	SCREW
46	RETAINER
47	MAY 3392563
48	MAY 694091
49	MAY 3387872
50	Handle, Door (White)
51	Front Panel
52	Strike, Door
53	Lever, Snap Switch
54	MAY 3392538
55	SCREW
56	MAY 3390735
57	LOCK TOP
58	NUT, CAGE
