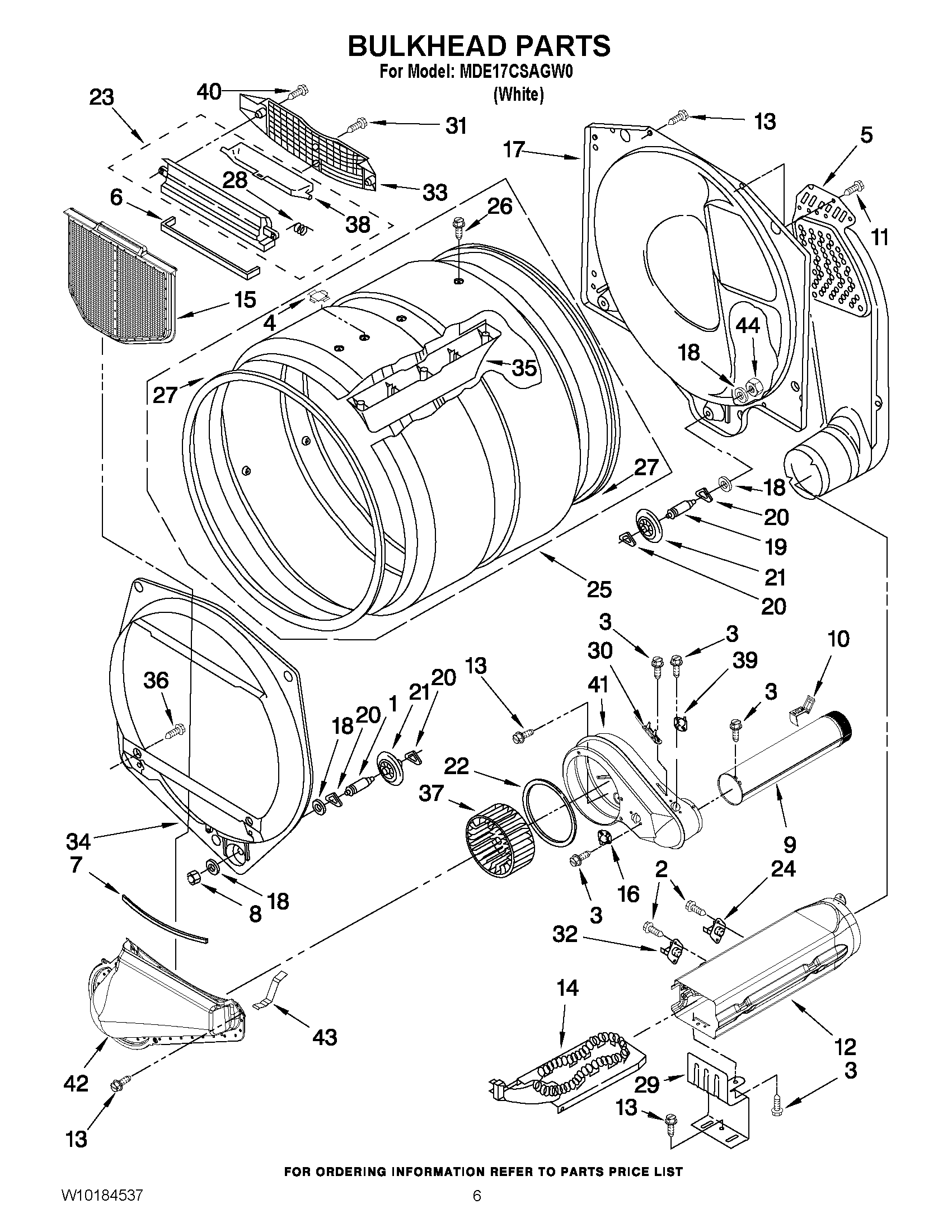

MDE17CSAGW0 03 – BULKHEAD PARTS

Products

PositionProduct
1MAY 8575324
2SCREW,8-18 X 3/8
3MAY W10080820
4Plug, Drum Hole
5ASSEMBLY, AIR DUCT
6MAY 697813
7MAY 697814
8NUT, 3/8 X 16 (R.H.)
9Exhaust Pipe
10CLIP, EXHAUST
11Screw
12HEATER BOX,
13SCREW
14Element, Heater
15MAY W10049370
16THERMOSTAT 155~F ELECTRONIC
17MAY 3387809
18MAY W10080960
19MAY 8575325
20WASHER, TRI RING
21MAY 8536973
22SEAL, PLATE COVER
23MAY W10181927
24Thermal Cut-Off
25Complete Drum Assembly
26MAY W10219342
27MAY W10166807
28Spring, Lint Screen Door
29MAY W10119253
30THERMAL-LIMITER (89 C)
31MAY 487909
32THERMOSTAT 250° F / 170F NC
33MAY W10181926
34BULKHEAD, FRONT
35BAFFLE, DRUM
36SCREW
37MAY W10168564
38MAY W10181925
39THERMOSTAT, CYCLING (140F)
40Screw, 10-16 x 3/4
41MAY W10151271
42Lint Duct Assembly
43CLIP-SPRING
44MAY W10080190
