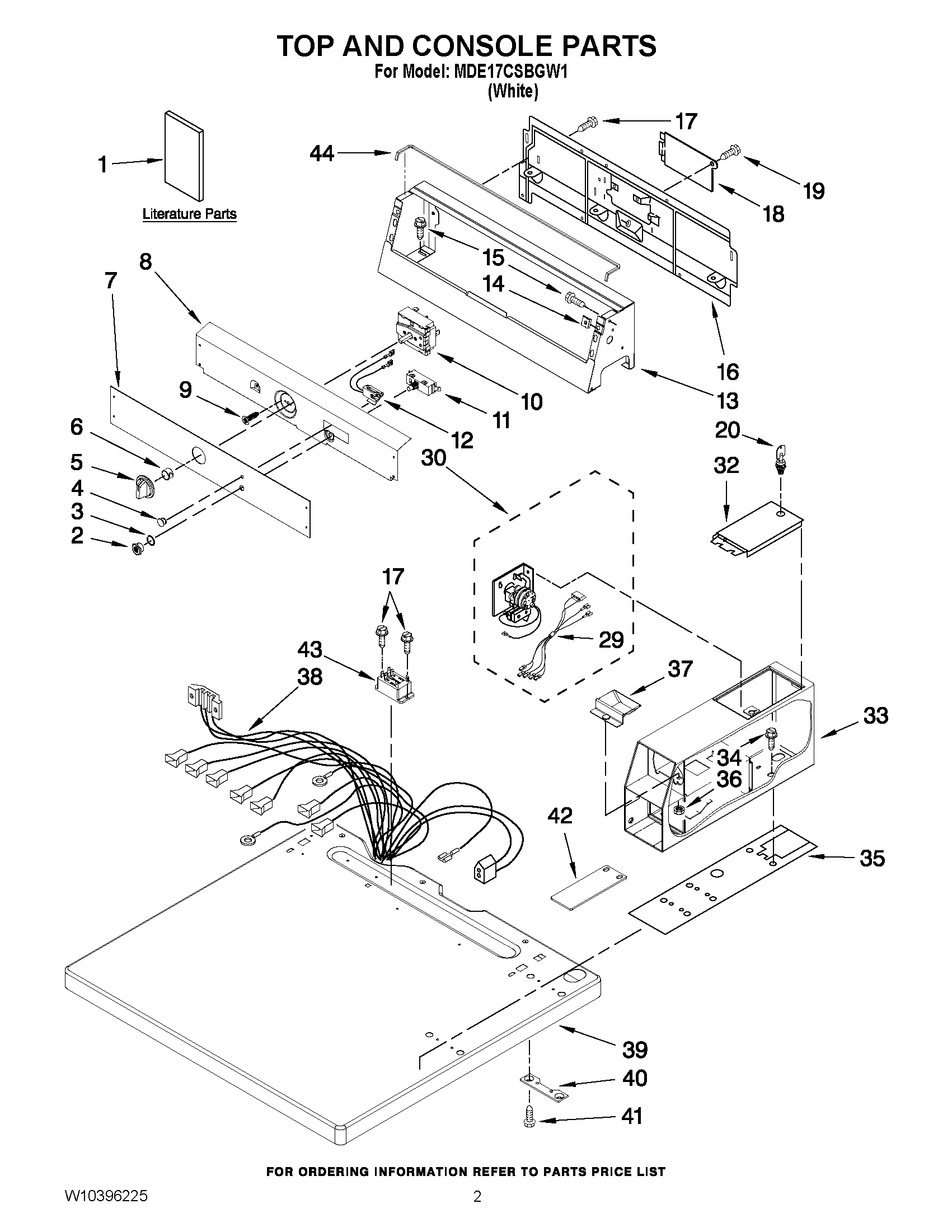

MDE17CSBGW1 01 – TOP AND CONSOLE PARTS

MDE17CSBGW1 01 – TOP AND CONSOLE PARTS

Written by

in

MDE17CSBGW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10297242
1	MAY W10396189
2	MAY W10146429
3	MAY W10139799
4	INDICATOR LIGHTS ASSEMBLY
5	KNOB
6	MAY W10140928
7	MAY W10135190
8	MAY W10124213
9	SCREW
10	SWITCH, CYCLE SELECTION
11	MAY W10181931
12	LAMP, INDICATOR
13	MAY W10205153
14	NUT, "U"
15	MAY W10139210
16	MAY W10135273
18	MAY W10096918
19	SCREW
20	ASSEMBLY, CAM & SECURITY LOCK
29	MAY W10111029
30	MAY W10135270
32	ASSEMBLY, SERVICE DOOR
33	MAY W10136649
34	BOLT
35	CUSHION, METER CASE
36	MAY W10139060
37	MAY W10133509
38	MAY W10353577
39	TOP (WHITE MDE20PDAGW0)
40	MAY 3347825
41	SCREW
42	MAY W10153513
43	RELAY, HEATER 230V
44	Foam Seal
