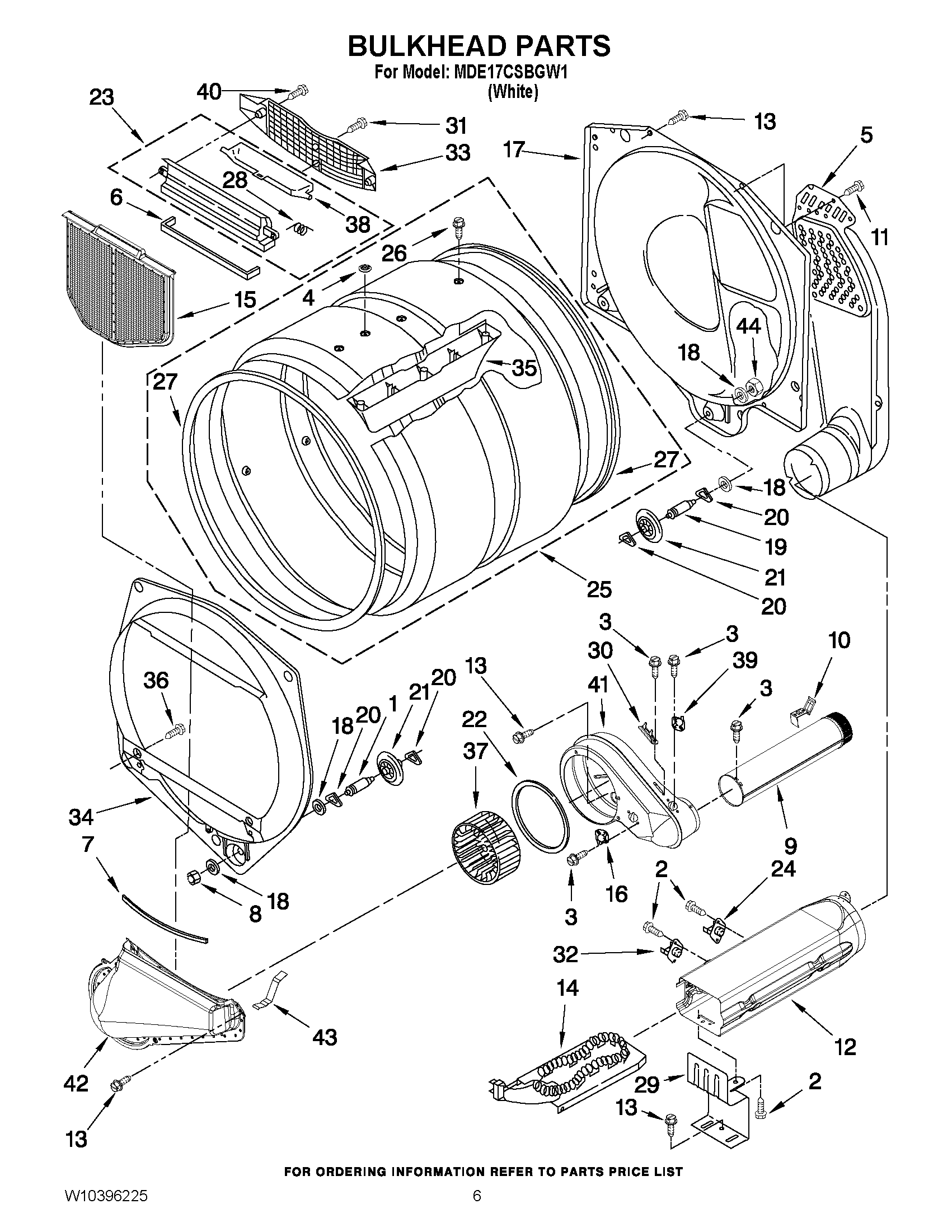

MDE17CSBGW1 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	MAY W10080300
3	MAY 8533971
4	CAP, PLUG
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	Exhaust Pipe
10	CLIP, EXHAUST
11	Screw
12	HEATER BOX,
13	SCREW
14	Element, Heater
15	MAY W10049370
16	THERMOSTAT, CYCLING (140F)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SEAL, PLATE COVER
23	MAY W10181927
24	Thermal Cut-Off
25	Complete Drum Assembly
26	MAY W10219342
27	MAY W10166807
28	Spring, Lint Screen Door
29	MAY W10119253
30	THERMAL-LIMITER (89 C)
31	Screw, 8-18 x 1/2
32	THERMOSTAT 250Â° F / 170F NC
33	MAY W10181926
34	BULKHEAD, FRONT
35	BAFFLE, DRUM
36	SCREW
37	MAY W10349492
38	MAY W10181925
39	THERMOSTAT 155~F ELECTRONIC
40	SCREW
41	MAY W10119255
42	Lint Duct Assembly
43	CLIP, SPRING
44	NUT, HEX (LEFT HAND THREAD)
