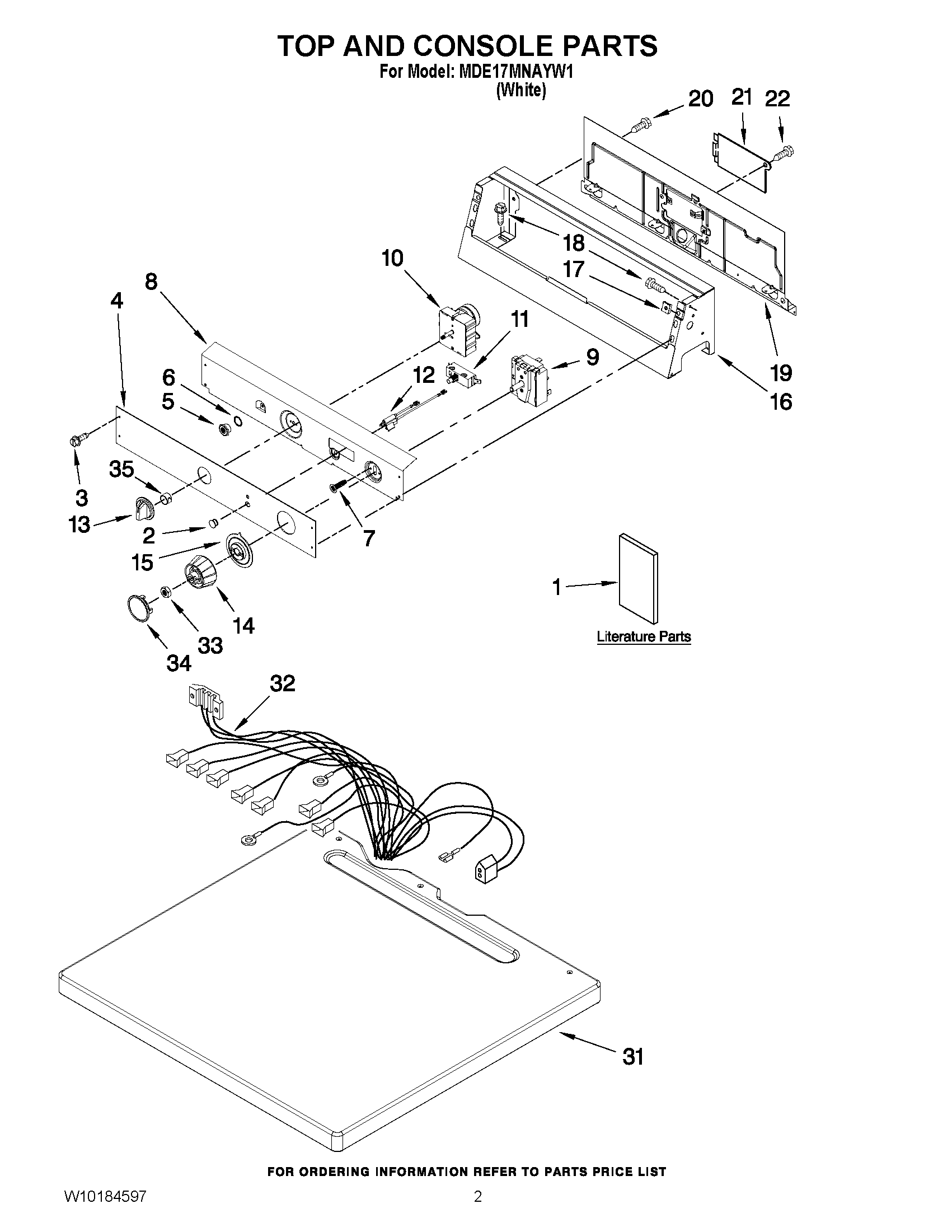

MDE17MNAYW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10163155
1MAY W10184576
1MAY W10184597
2INDICATOR LIGHTS ASSEMBLY
3MAY W10131119
4MAY W10135184
5MAY W10146429
6MAY W10139799
7SCREW
8MAY W10124216
9TIMER, DRYER
10MAY W10129712
11MAY W10149462
12Lamp-Indicator 120 V.
13KNOB
14MAY W10133505
15SKIRT, DIAL
16MAY W10205150
17NUT, "U"
18MAY W10139210
19MAY 8317305
20SCREW
21MAY 8576583
22Screw, 8-18 x 3/8
31TOP (WHITE)
32HARNESS, MAIN MDE20MNAYW0
33NUT, HEX
34CAP, KNOB
35MAY W10140928
