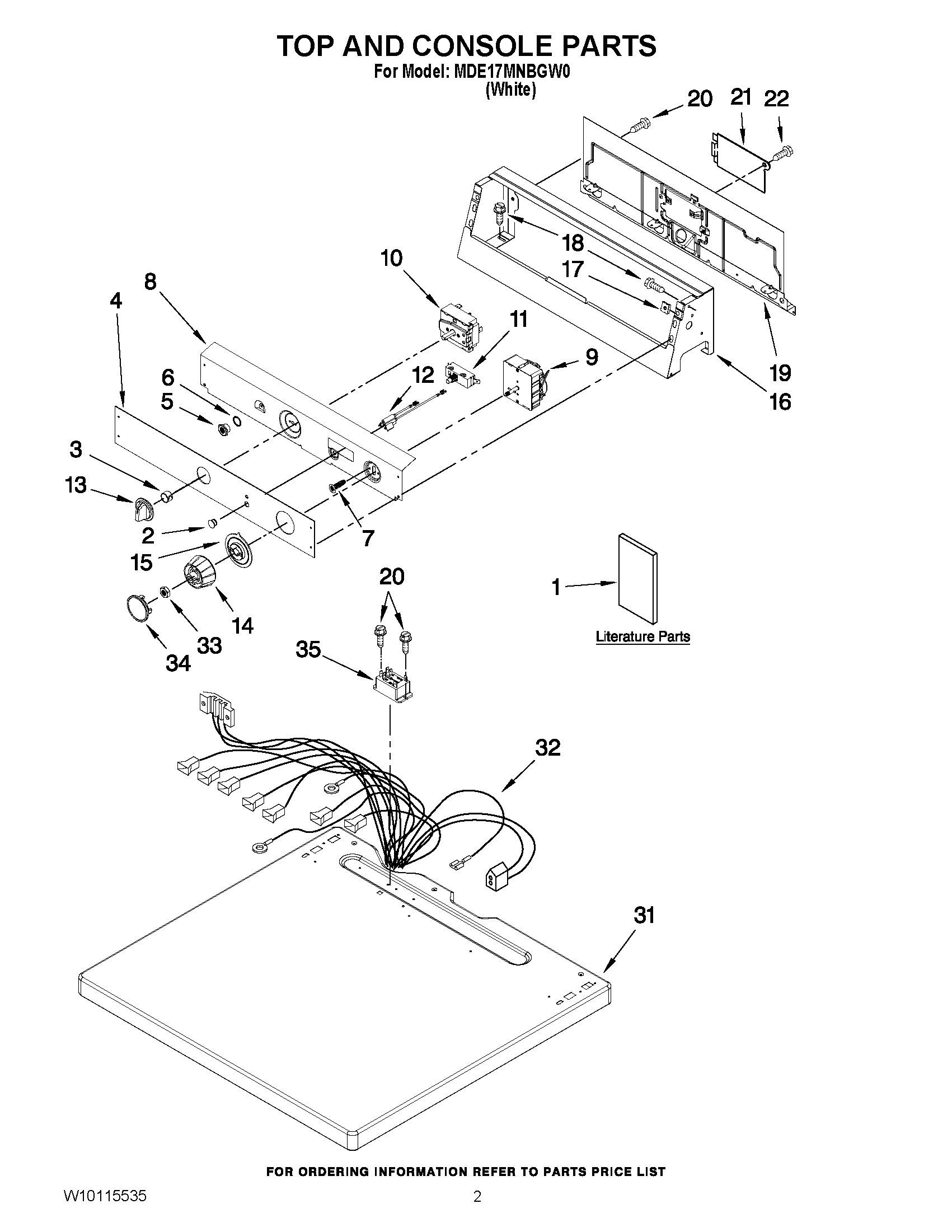

MDE17MNBGW0 01 – TOP AND CONSOLE PARTS

MDE17MNBGW0 01 – TOP AND CONSOLE PARTS

Written by

in

MDE17MNBGW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10115537
1MAY W10115535
1MAY W10163157
2INDICATOR LIGHTS ASSEMBLY
3MAY W10140928
4MAY W10135191
5MAY W10146429
6MAY W10139799
7SCREW
8MAY W10124216
9MAY W10157945
10MAY W10137919
11MAY W10181931
12LAMP, INDICATOR
13KNOB
14MAY W10133505
15SKIRT, DIAL
16MAY W10205150
17NUT, "U"
18MAY W10139210
19MAY W10121161
20MAY W10080700
21MAY W10096918
22SCREW
31TOP (WHITE)
32MAY W10242913
33NUT, HEX
34CAP, KNOB
35RELAY, HEATER 230V
