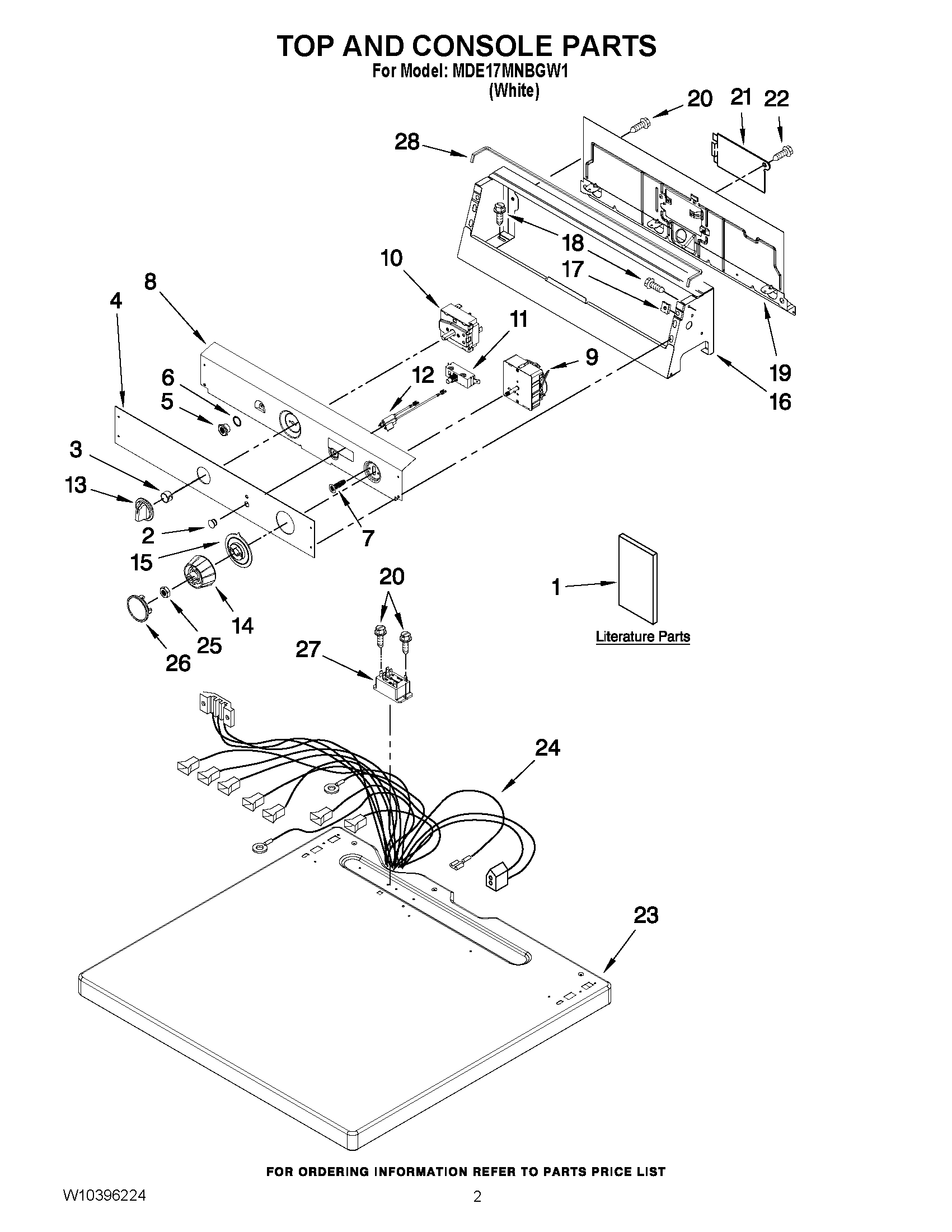

MDE17MNBGW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10396192
1	MAY W10297242
2	INDICATOR LIGHTS ASSEMBLY
3	MAY W10140928
4	MAY W10135191
5	MAY W10146429
6	MAY W10139799
7	SCREW
8	MAY W10124216
9	MAY W10157945
10	SWITCH, CYCLE SELECTION
11	MAY W10181931
12	LAMP, INDICATOR
13	KNOB
14	MAY W10133505
15	SKIRT, DIAL
16	MAY W10205150
17	NUT, "U"
18	MAY W10139210
19	MAY W10121161
21	MAY W10096918
22	SCREW
23	TOP (WHITE)
24	MAY W10386329
25	NUT, HEX
26	CAP, KNOB
27	RELAY, HEATER 230V
28	Foam Seal
