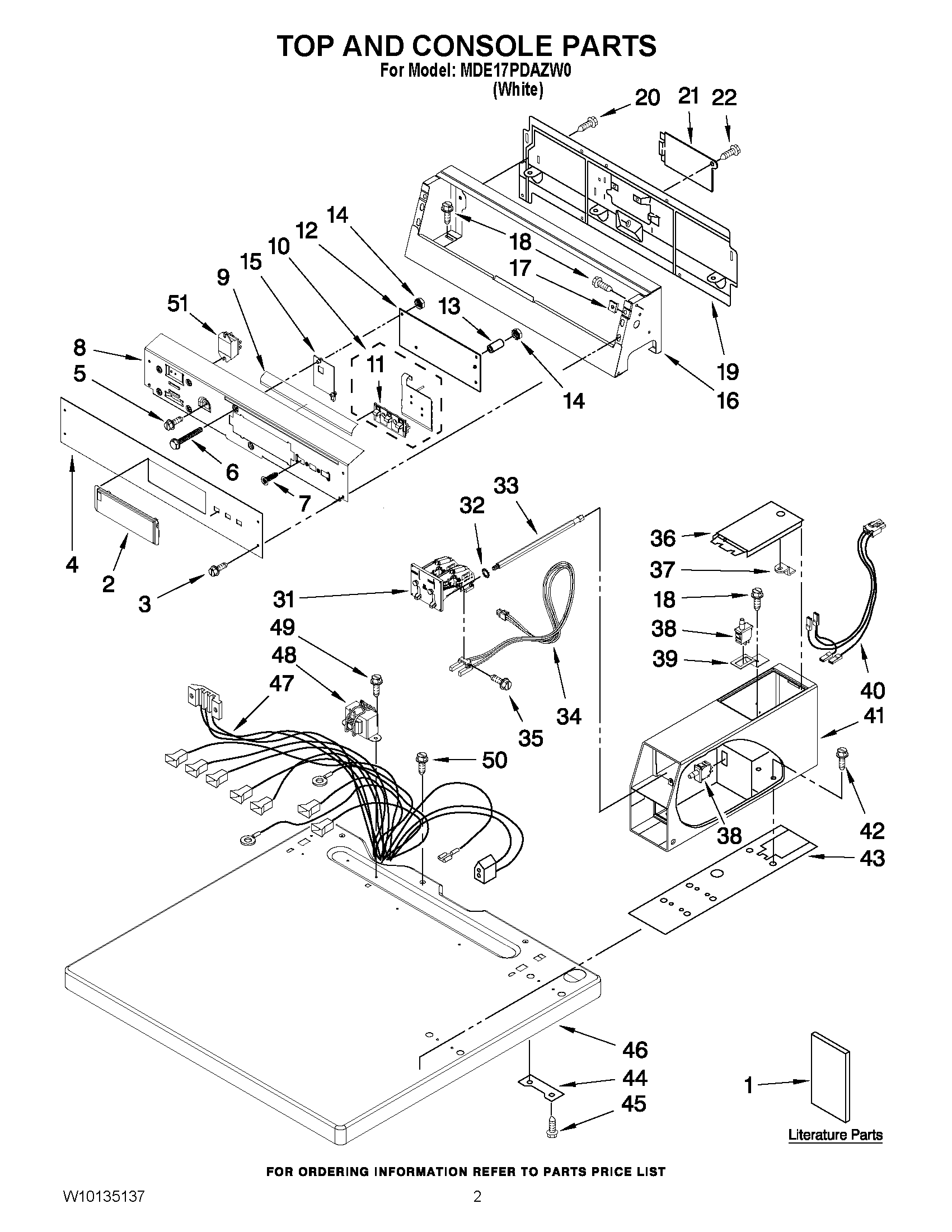

MDE17PDAZW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10135150
1	MAY W10135134
1	MAY W10135137
2	Cover, Display
3	MAY W10131119
4	MAY W10135181
5	SCREW
6	SCREW
7	MAY W10140652
8	MAY W10124214
9	MAY W10133515
10	MAY W10135233
11	BUTTON, PUSH
12	MAY W10130081
13	STANDOFF, CIRCUIT BOARD
14	NUT
15	MAY W10161476
16	MAY W10137299
17	NUT, "U"
18	MAY W10139210
19	MAY 3978608
20	SCREW
21	MAY 8576583
22	Screw, 8-18 x 3/8
31	Coin Drop Assy.
32	Washer
33	MAY W10137319
34	Coin Optic Sensor Assembly
35	SCREW
36	ASSEMBLY, SERVICE DOOR
37	CAM COMMERCIAL LOCK
38	MAY W10131838
39	MAY W10133508
40	MAY W10139456
41	MAY W10136645
42	BOLT
42	METER CASE MOUNTING (BOLT)
43	CUSHION, METER CASE
44	MAY 3347825
45	SCREW
46	TOP (WHITE MDE20PDAGW0)
47	WIRING HARNESS (MAIN MDE18PDAZW0)
48	MAY W10131839
49	MAY 8533971
50	SCREW
51	MAY W10133335
