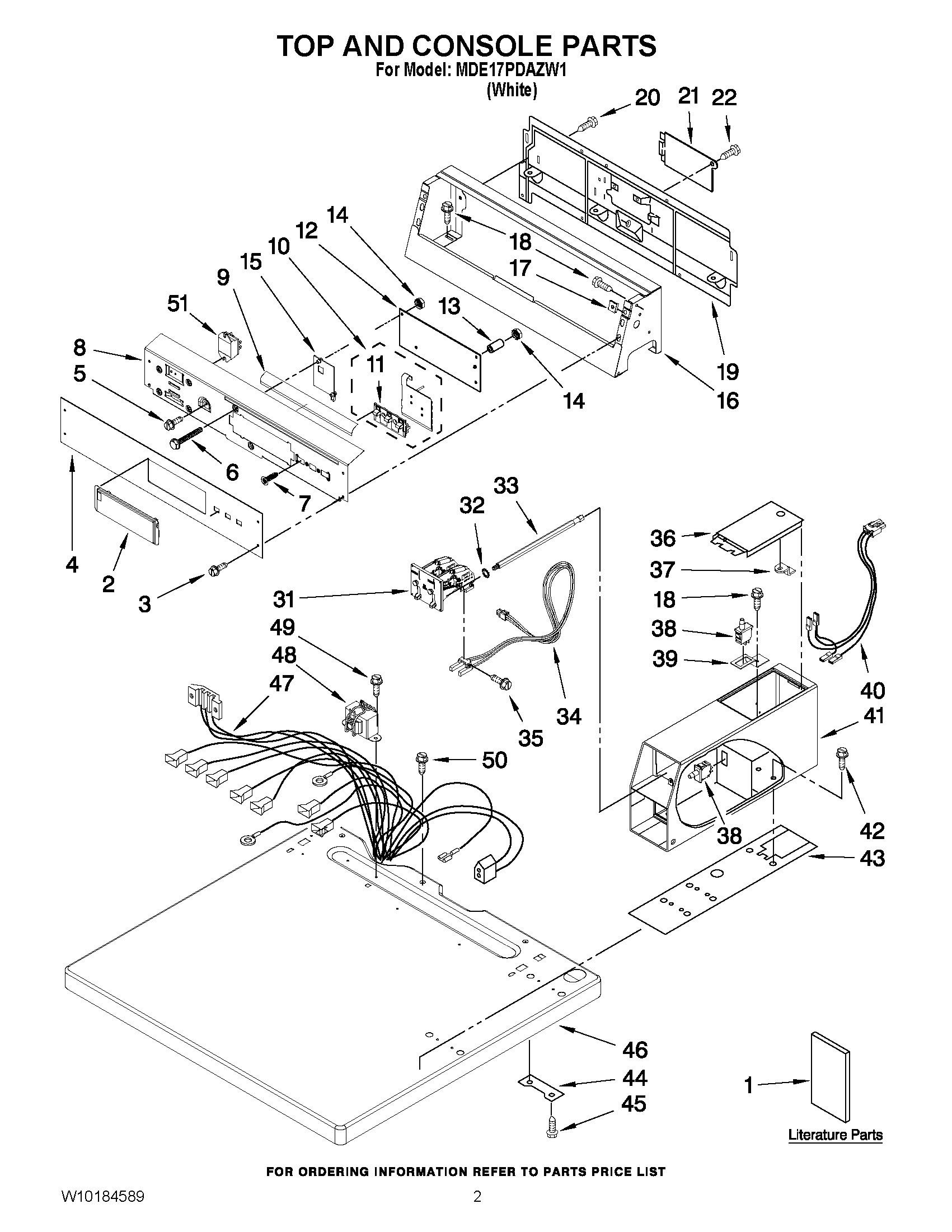

MDE17PDAZW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10184578
1	MAY W10183571
1	MAY W10184589
2	Cover, Display
3	MAY W10131119
4	MAY W10135181
5	SCREW
6	SCREW
7	MAY W10140652
8	MAY W10124214
9	MAY W10133515
10	MAY W10135233
11	BUTTON, PUSH
12	MAY W10130081
13	STANDOFF, CIRCUIT BOARD
14	NUT
15	MAY W10161476
16	MAY W10205153
17	NUT, "U"
18	MAY W10139210
19	MAY 3978608
20	SCREW
21	MAY 8576583
22	Screw, 8-18 x 3/8
31	Coin Drop Assy.
32	Washer
33	MAY W10137319
34	Coin Optic Sensor Assembly
35	SCREW
36	ASSEMBLY, SERVICE DOOR
37	MAY W10156125
38	MAY W10131838
39	MAY W10133508
40	MAY W10139456
41	MAY W10136645
42	METER CASE MOUNTING (BOLT)
42	BOLT
43	CUSHION, METER CASE
44	MAY 3347825
45	SCREW
46	TOP (WHITE MDE20PDAGW0)
47	WIRING HARNESS (MAIN MDE18PDAZW0)
48	MAY W10131839
49	MAY 8533971
50	SCREW
51	MAY W10133335
