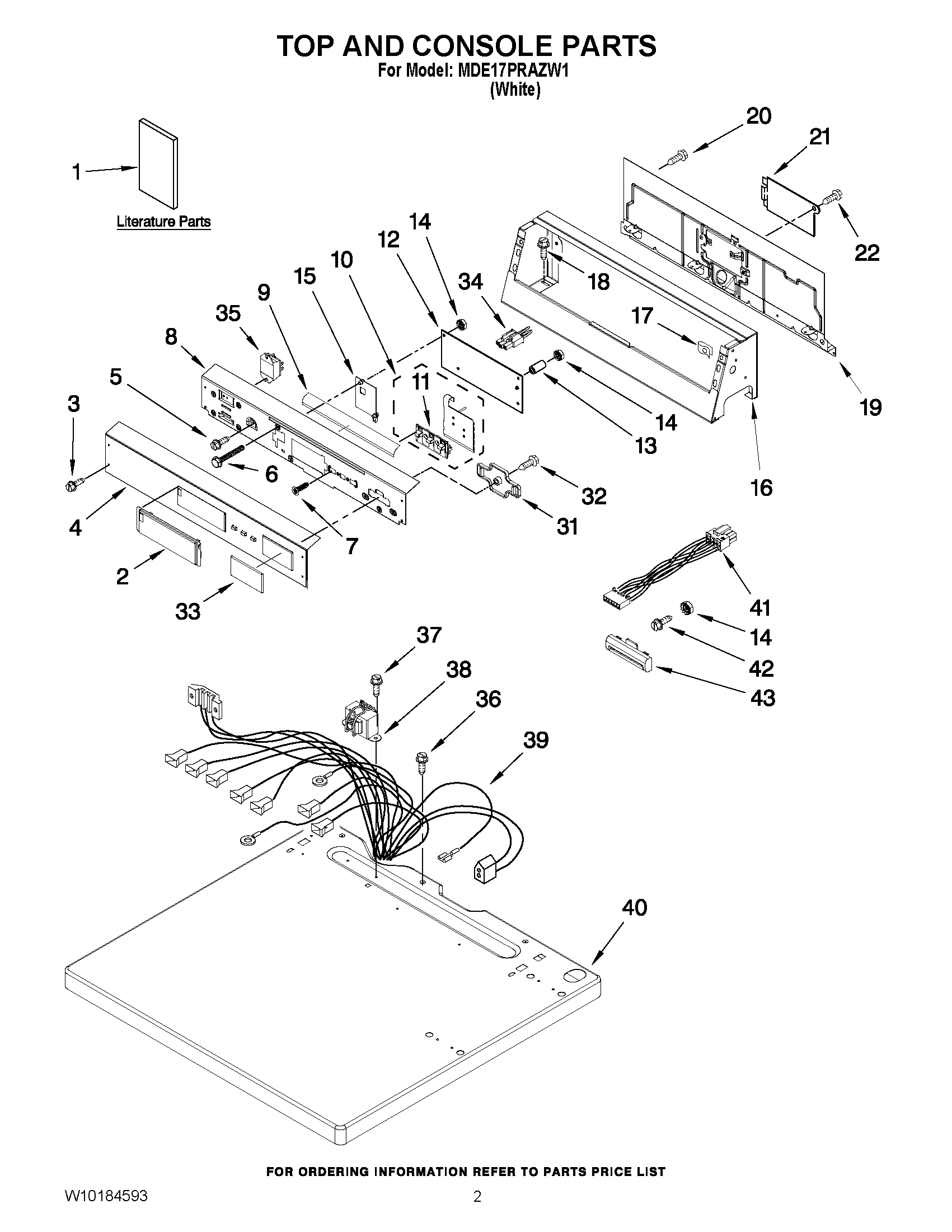

MDE17PRAZW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10184593
1	MAY W10184578
1	INSTALLATION INSTRUCTIONS CR
1	MAY W10183571
2	Cover, Display
3	MAY W10131119
4	MAY W10135182
5	SCREW
6	SCREW
7	MAY W10140652
8	MAY W10124215
9	MAY W10133515
10	MAY W10135233
11	BUTTON, PUSH
12	MAY W10130081
13	STANDOFF, CIRCUIT BOARD
14	NUT
15	MAY W10161476
16	MAY W10205150
17	NUT, "U"
18	MAY W10139210
19	MAY 8317305
20	SCREW
21	MAY 8576583
22	Screw, 8-18 x 3/8
31	RETAINER, CARD READER COVER
32	MAY 3400618
33	COVER, CARD READER
34	JUMPER, SWITCH SERVICE/VAULT
35	MAY W10133335
36	SCREW
37	MAY 8533971
38	MAY W10131839
39	WIRING HARNESS (MAIN MDE18PDAZW0)
40	TOP (WHITE)
41	CARD READER, HARNESS
42	SCREW
43	BEZEL
