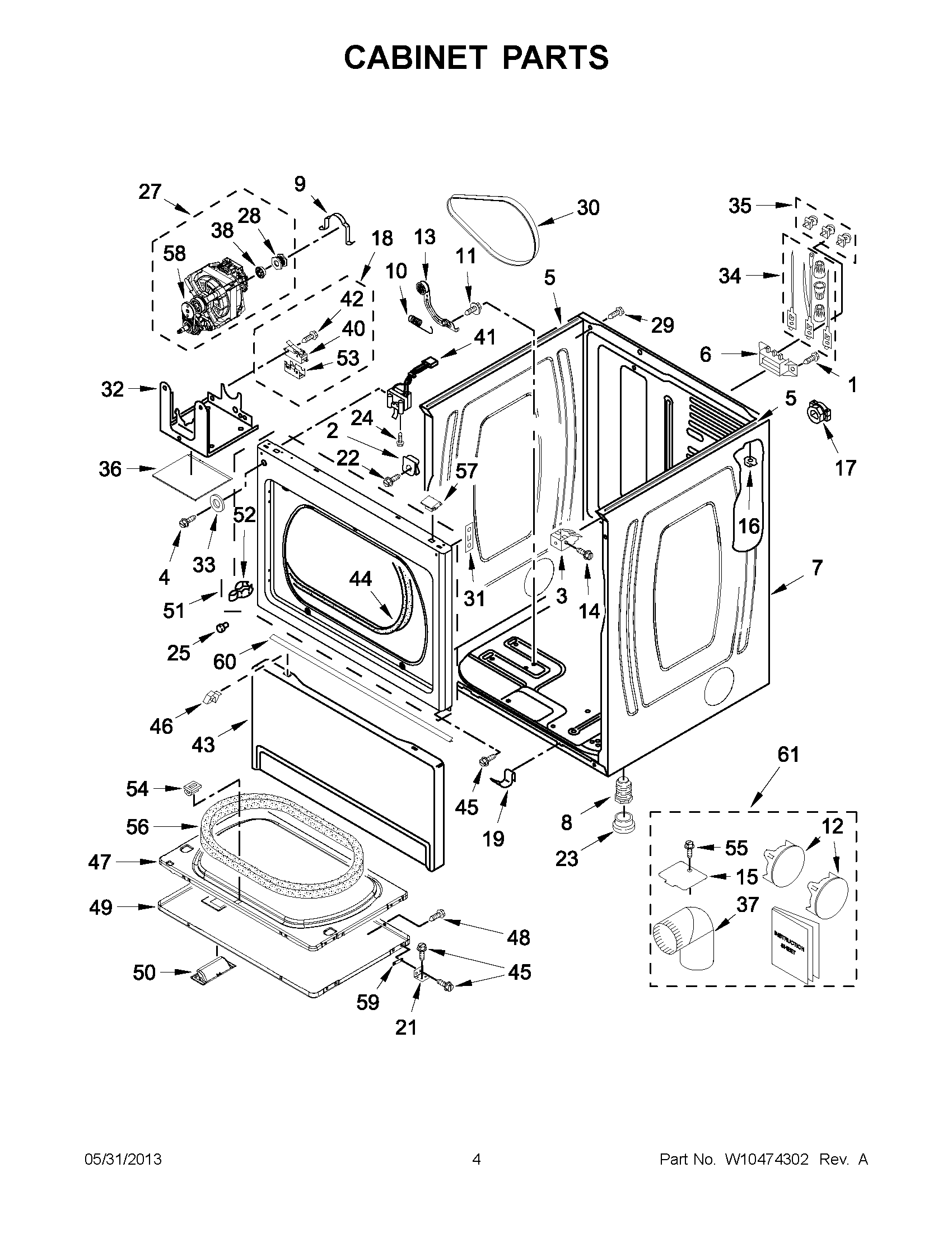

MDE18CSAGW0 02 – CABINET PARTSadmin2025-04-26T10:10:31+00:00MDE18CSAGW0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | SCREW, 10-16 X 1/2 |
| 2 | NUT, "U" |
| 3 | CLIP, FRONT PANEL |
| 4 | SCREW |
| 5 | SEAL-FOAM (IEC) |
| 6 | MAY 3397659 |
| 7 | MAY W10547697 |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | MAY 697750 |
| 13 | MAY W10344192 |
| 14 | SCREW |
| 15 | MAY 3394331 |
| 16 | NUT, CAGE |
| 17 | Clip, Strain Relief |
| 18 | ASSEMBLY, SWITCH |
| 19 | CLIP |
| 21 | ASSEMBLY, HINGE & PIN (SILVER) |
| 23 | BOOT, FOOT |
| 24 | SCREW |
| 25 | BUMPER |
| 27 | ASSEMBLY, MOTOR 50 HZ. |
| 28 | MAY W10167237 |
| 29 | MAY 8533974 |
| 30 | BELT, DRIVE |
| 31 | MAY 3390902 |
| 32 | MAY W10135695 |
| 33 | WASHER |
| 34 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 35 | MAY 279393 |
| 36 | DAPENING PANEL |
| 37 | MAY 49026 |
| 38 | MAY 3393657 |
| 40 | ASSEMBLY, SWITCH ACTUATOR |
| 41 | MAY W10237959 |
| 42 | SCREW |
| 43 | Toe Panel (Includes Item. 2) (White) |
| 44 | MAY 3387242 |
| 45 | MAY 342055 |
| 46 | RETAINER |
| 47 | MAY W10323061 |
| 48 | MAY W10080300 |
| 49 | DOOR, FRONT |
| 50 | Handle, Door (White) |
| 51 | PANEL, FRONT (WHITE) |
| 52 | MAY 696144 |
| 53 | MAY 8564011 |
| 54 | MAY 3392538 |
| 55 | SCREW |
| 56 | MAY 3390735 |
| 57 | LOCK TOP |
| 58 | MAY 3405160 |
| 59 | PLUG, HINGE SCREW |
| 60 | MAY W10576519 |
| 61 | MAY 279818 |
