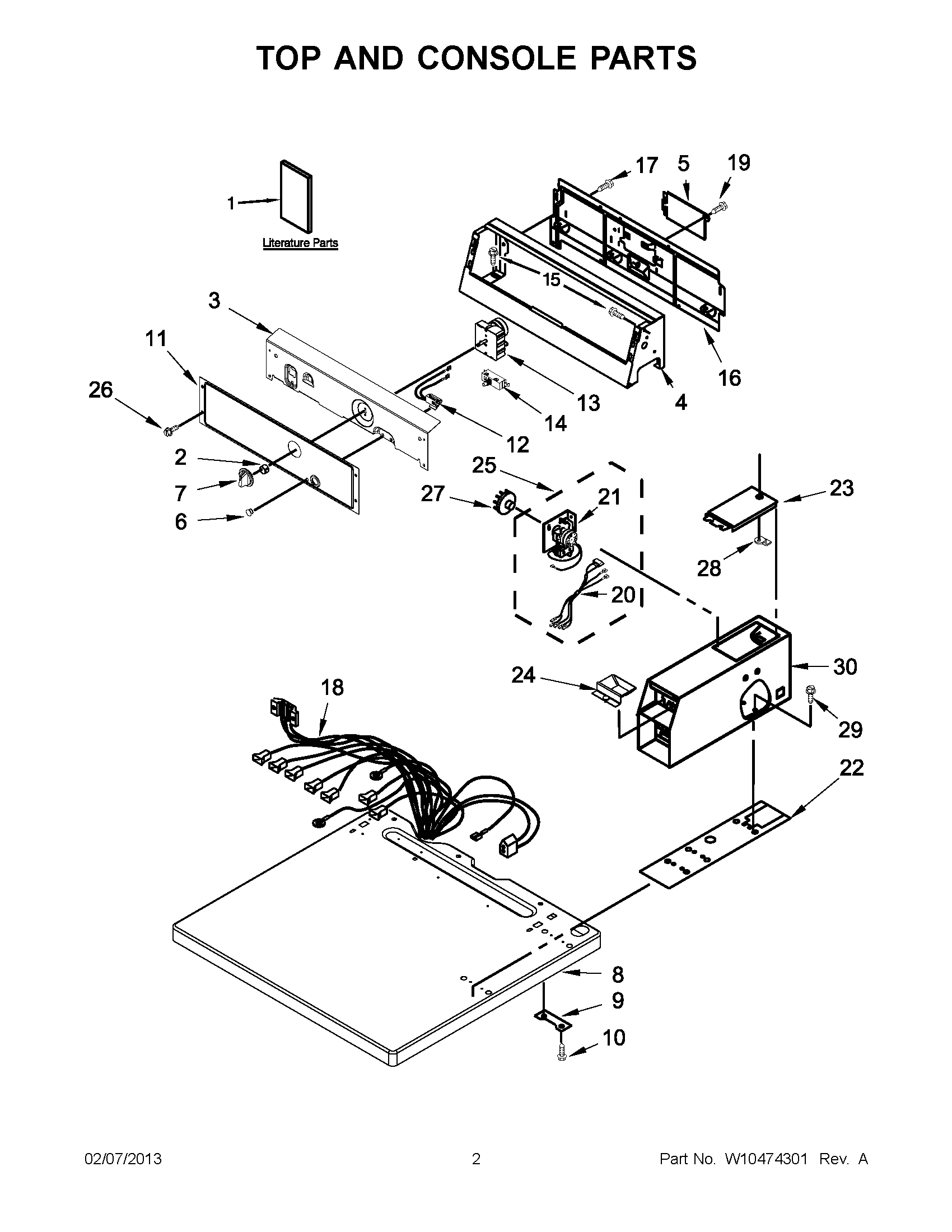

MDE18CSAYW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10474273
1	WIRING DIAGRAM (MDE18CSAZW0)
1	MAY W10296776
2	MAY W10140928
3	MAY W10461070
4	CONSOLE MDE20PDAGW0
5	MAY W10286180
6	INDICATOR LIGHTS ASSEMBLY
7	KNOB
8	TOP (WHITE MDE20PDAGW0)
9	MAY 3347825
10	SCREW
11	MAY W10461109
12	Lamp-Indicator 120 V.
13	SWITCH, CYCLE SELECTION
14	MAY W10488054
15	MAY 8533971
16	MAY 3978608
17	SCREW
18	MAY W10129843
18	MAY W10164588
19	Screw, 8-32 x 1/32
20	MAY W10177791
21	MAY W10135258
22	CUSHION, METER CASE
23	ASSEMBLY, SERVICE DOOR
24	MAY W10133509
25	MAY W10135259
26	SCREW
27	Timing Cam (Cam – 6 Pin)
27	Timing Cam (Cam – 3 Pin)
28	NUT, CAGE
29	BOLT
30	MAY W10529172
