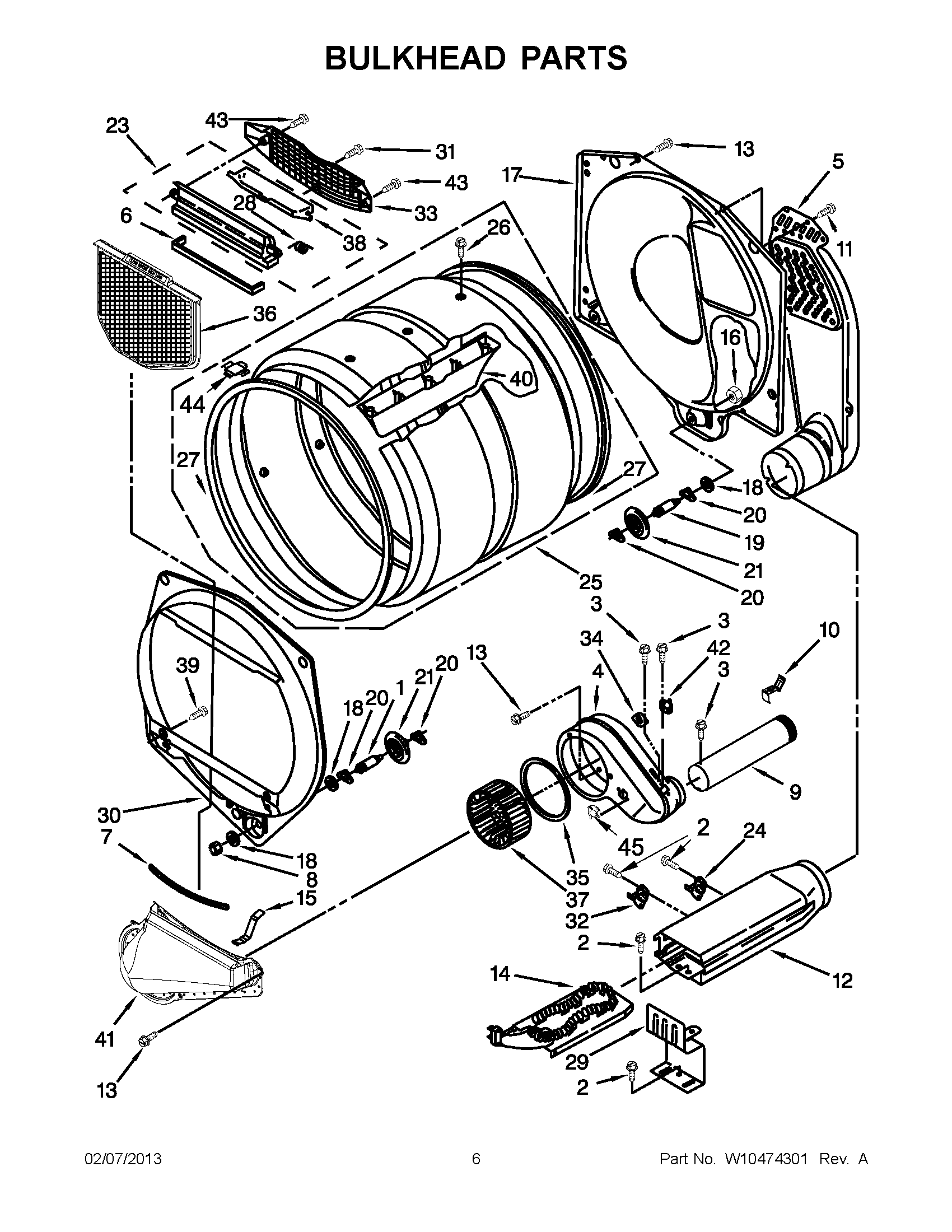

MDE18CSAZW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	MAY 8533971
4	MAY 8544362
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	Screw
12	HEATER BOX,
13	SCREW
14	ELEMENT, HEATER MDE20MNAZW0
14	Heater Element
15	CLIP, SPRING
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER - LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
23	OUTLET HOUSING ASSEMBLY
24	MAY 8318314
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	Spring, Lint Screen Door
29	MAY 8066099
30	BULKHEAD, FRONT
31	Screw, 8-18 x 1/2
32	MAY 3391914
33	MAY W10181926
34	Fuse, Thermal (91 C)
35	SEAL, PLATE COVER
36	MAY W10049370
37	MAY W10349492
38	MAY W10181925
39	SCREW
40	BAFFLE, DRUM
41	Lint Duct Assembly
42	THERMOSTAT
43	SCREW
44	Plug, Drum Hole
45	THERMOSTAT 155~F ELECTRONIC
