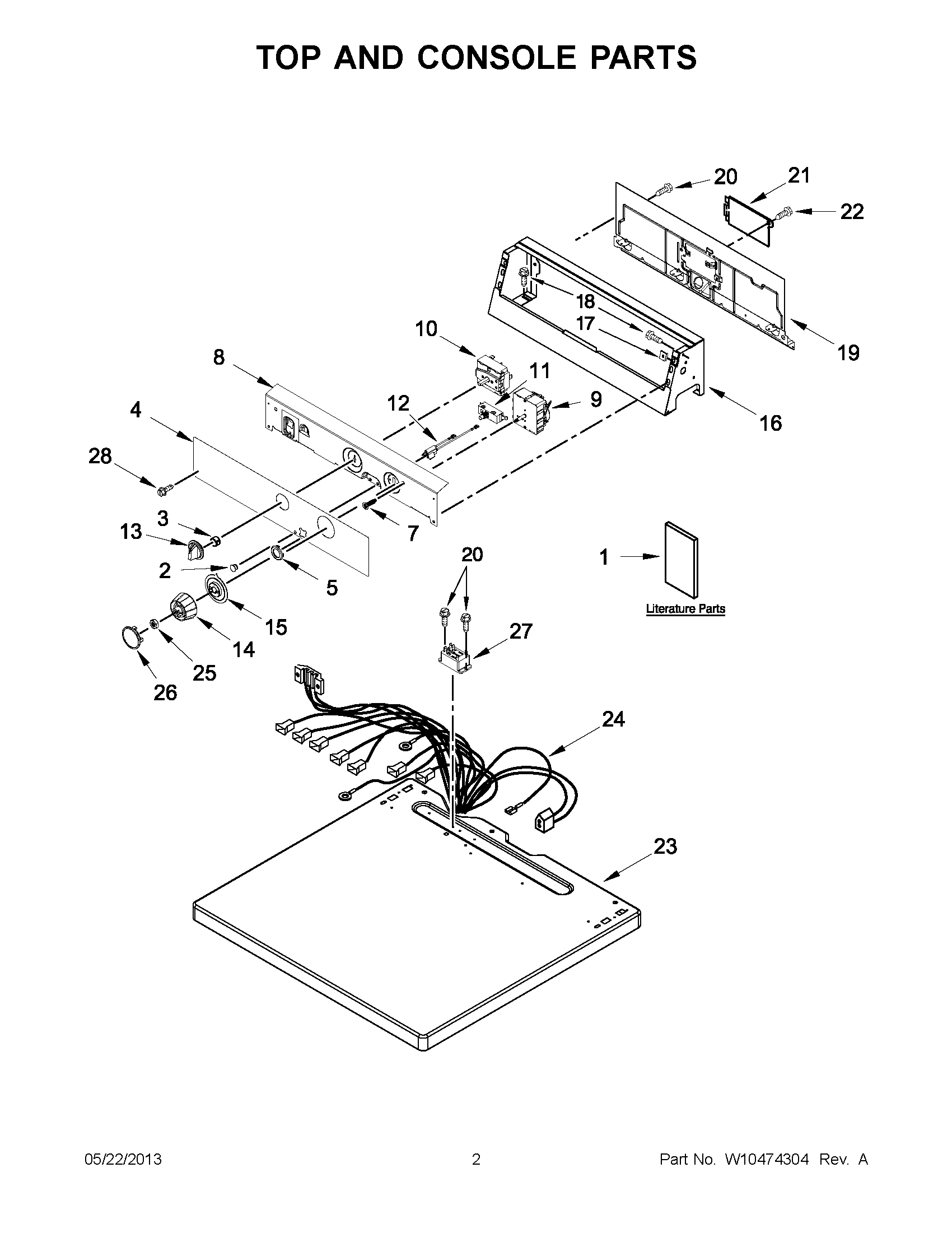

MDE18MNAGW0 01 – TOP AND CONSOLE PARTS

MDE18MNAGW0 01 – TOP AND CONSOLE PARTS

Written by

in

MDE18MNAGW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10474275
1MAY W10396192
2INDICATOR LIGHTS ASSEMBLY
3MAY W10140928
4MAY W10506025
5BEZEL – PTS
7SCREW
8BACK BRACKET, NON-COIN
9MAY W10157945
10SWITCH, CYCLE SELECTION
11MAY W10488054
12LAMP, INDICATOR
13KNOB
14MAY W10133505
15SKIRT, DIAL
16CONSOLE
17NUT, "U"
18MAY 8533971
19MAY W10121161
20SCREW
21MAY W10096918
23TOP (WHITE)
24MAY W10386329
25NUT, HEX
26CAP, KNOB
27RELAY, HEATER 230V
28SCREW
