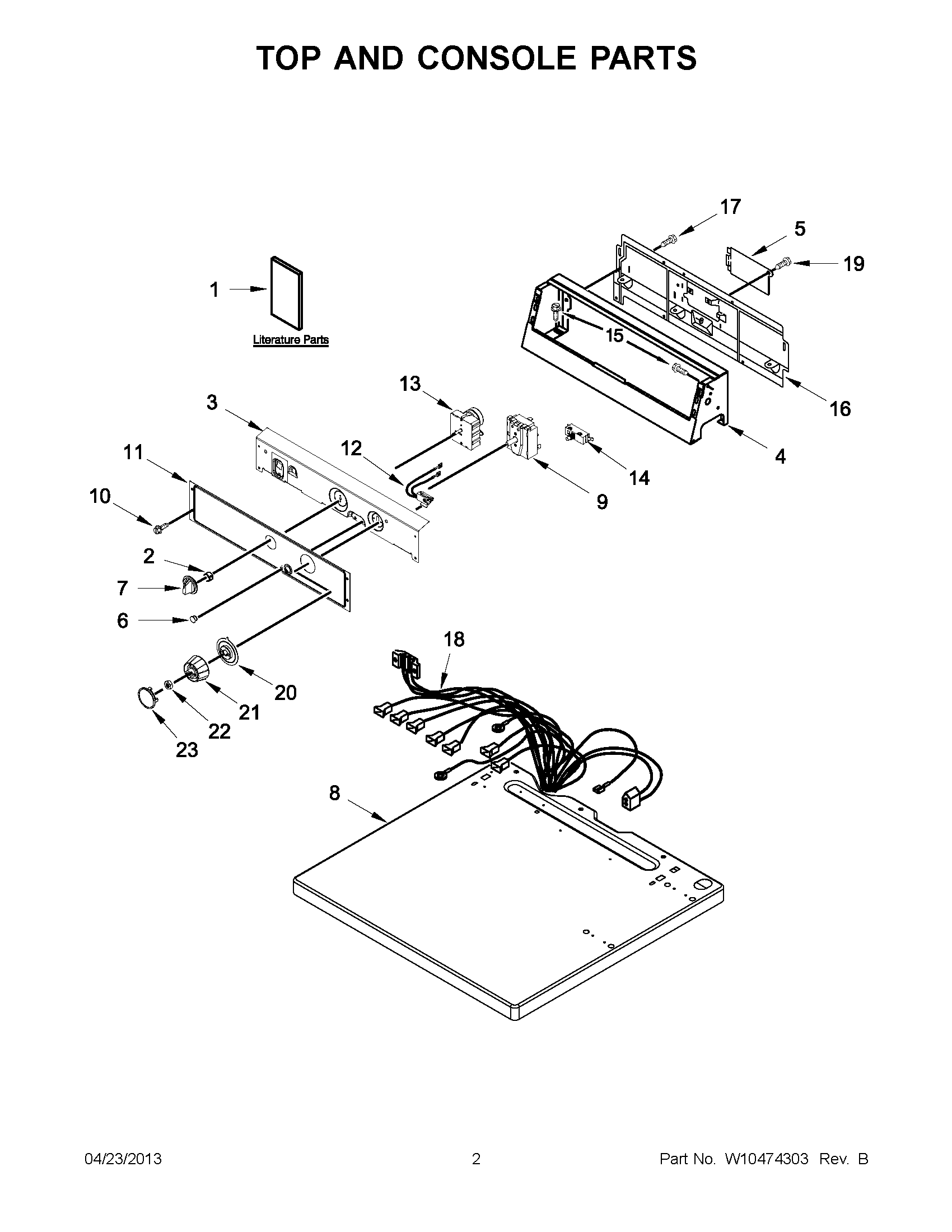

MDE18MNAZW0 01 – TOP AND CONSOLE PARTS

MDE18MNAZW0 01 – TOP AND CONSOLE PARTS

Written by

in

MDE18MNAZW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM MDE20MNAYW0
1MAY W10474273
1WIRING DIAGRAM MDE20MNAZW0
2MAY W10140928
3BACK BRACKET, NON-COIN
4CONSOLE
5MAY W10286180
6INDICATOR LIGHTS ASSEMBLY
7KNOB
8TOP (WHITE)
9TIMER, DRYER
10SCREW
11MAY W10461110
12Lamp-Indicator 120 V.
13SWITCH, CYCLE SELECTION
14MAY W10488054
15MAY 8533971
16MAY 8317305
17SCREW
18HARNESS, MAIN MDE20MNAZW0
18HARNESS, MAIN MDE20MNAYW0
19Screw, 8-32 x 1/32
20SKIRT, DIAL
21MAY W10133505
22NUT, HEX
23CAP, KNOB
