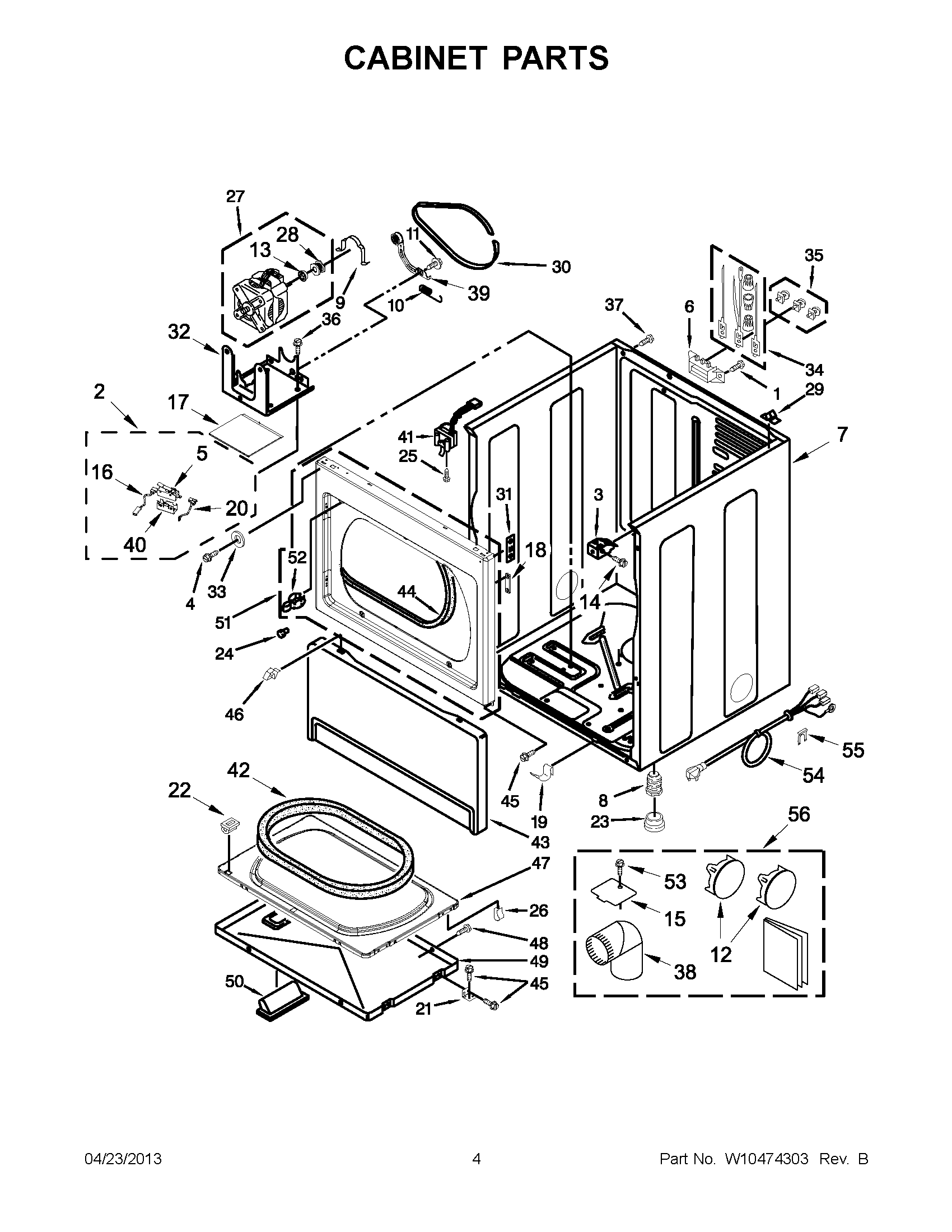

MDE18MNAZW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW, 10-16 X 1/2
2	MAY W10155571
3	CLIP, FRONT PANEL
4	SCREW
5	Switch, Broken Belt
6	MAY 3397659
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY 3393657
14	SCREW
15	MAY W10354249
16	Wire, Belt (To Protector)
17	DAPENING PANEL
18	PLUG, HINGE SCREW
19	CLIP
20	MAY 8539892
21	ASSEMBLY, HINGE & PIN (SILVER)
22	MAY 3392538
23	BOOT, FOOT
24	BUMPER
25	SCREW
26	NUT, "U"
27	MAY W10396034
28	PULLEY, MOTOR
29	LOCK TOP
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	WASHER
34	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
35	MAY 279393
36	SCREW
37	MAY 8533974
38	MAY 49026
39	MAY W10344192
40	MAY 8564011
41	MAY 3406109
42	MAY 3390735
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	MAY W10323061
48	SCREW
49	DOOR, FRONT
50	Handle, Door (White)
51	PANEL, FRONT (WHITE)
52	MAY 696144
53	Screw
54	Power Cord
55	STRAIN-RELIEF CLIP
56	MAY 279818
