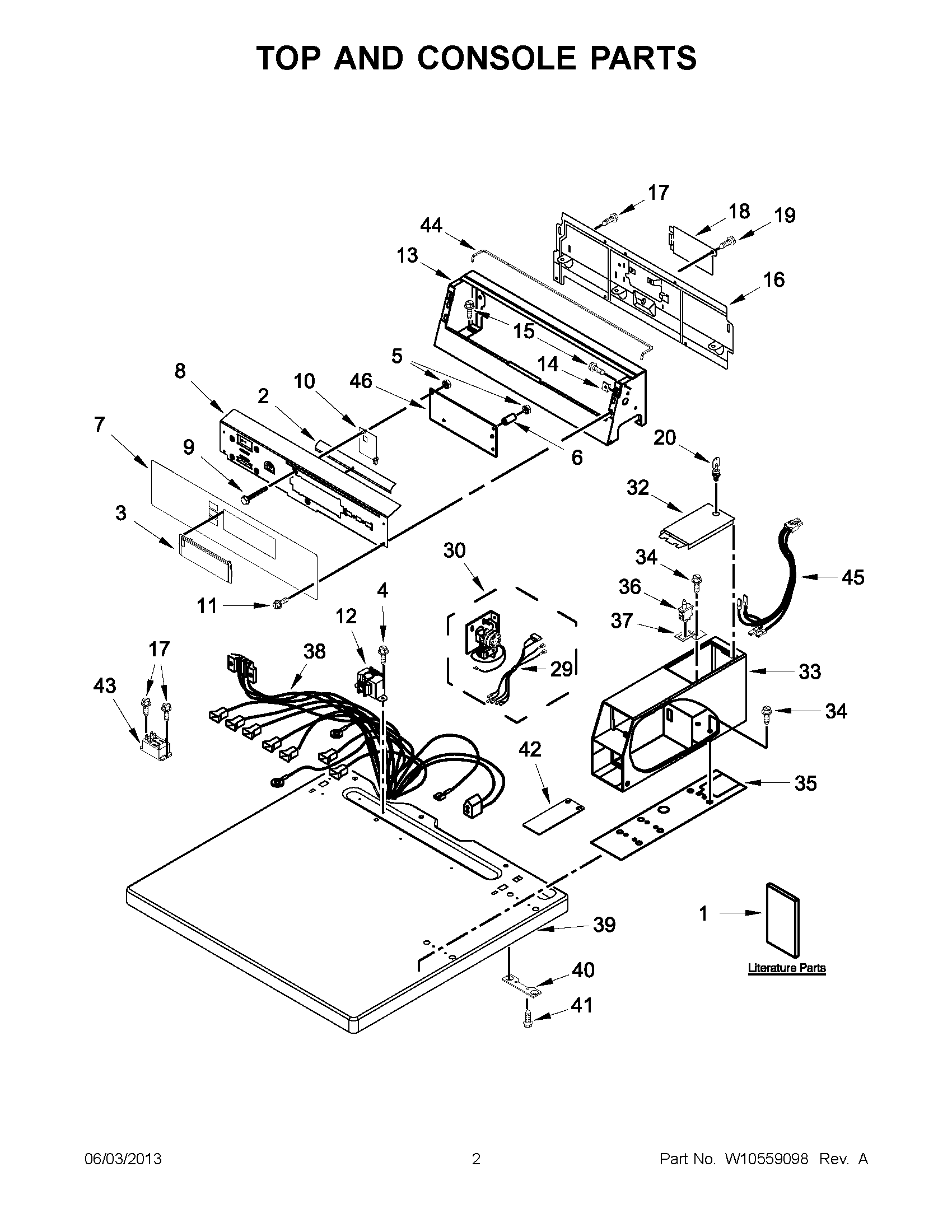

MDE18PDAGW0 01 – TOP AND CONSOLE PARTS

MDE18PDAGW0 01 – TOP AND CONSOLE PARTS

Written by

in

MDE18PDAGW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10146385
1MAY W10474275
2MAY W10133515
3COVER, DISPLAY
4MAY 8533971
5NUT
6STANDOFF, CIRCUIT BOARD
7MAY W10461123
8MAY W10461121
9SCREW
10MAY W10161476
11SCREW
12MAY W10277669
13CONSOLE MDE20PDAGW0
14NUT, "U"
15MAY W10139210
16MAY W10135273
18MAY W10096918
19SCREW
20ASSEMBLY, CAM & SECURITY LOCK
29MAY W10111029
30MAY W10135270
32ASSEMBLY, SERVICE DOOR
33METER CASE
34BOLT
35CUSHION, METER CASE
36SWITCH, VAULT SERVICE DOOR
37MAY W10133508
38MAY W10353577
39TOP (WHITE MDE20PDAGW0)
40MAY 3347825
41SCREW
42MAY W10153513
43RELAY, HEATER 230V
44Foam Seal
45MAY W10211244
46MAY W10471563
