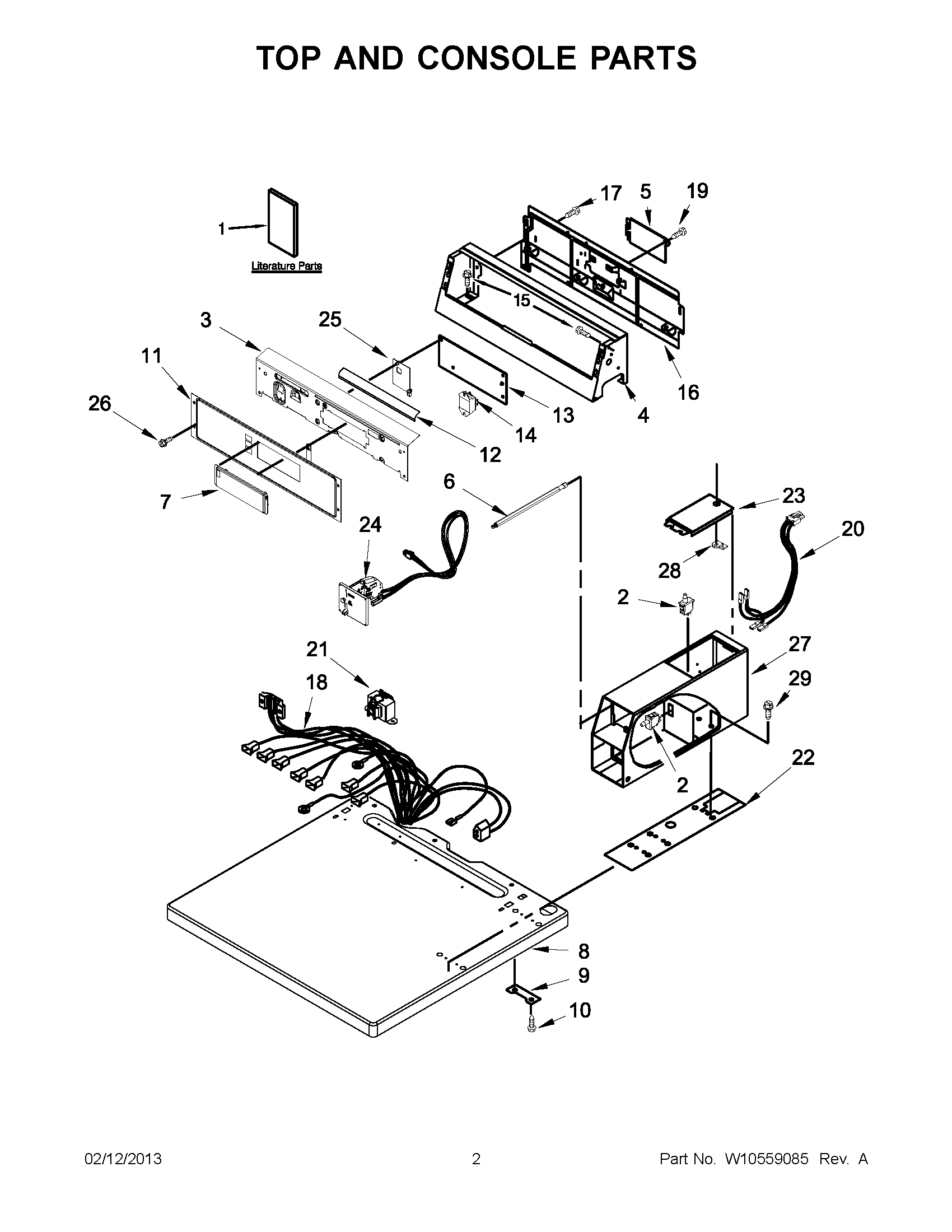

MDE18PDAYW0 01 – TOP AND CONSOLE PARTS

MDE18PDAYW0 01 – TOP AND CONSOLE PARTS

Written by

in

MDE18PDAYW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10296776
1MAY W10183571
1MAY W10474273
1MAY W10581519
2MAY W10131838
3MAY W10461121
4CONSOLE MDE20PDAGW0
5MAY W10286180
6MAY W10137319
7COVER, DISPLAY
8TOP (WHITE MDE20PDAGW0)
9MAY 3347825
10SCREW
11MAY W10461111
12MAY W10133515
13MAY W10471563
14MAY W10133335
15MAY 8533971
16MAY 3978608
17SCREW
18WIRING HARNESS (MAIN MDE18PDAZW0)
18WIRING HARNESS (MAIN MDE18PDAYW0)
19Screw, 8-32 x 1/32
20MAY W10211244
21MAY W10131839
22CUSHION, METER CASE
23ASSEMBLY, SERVICE DOOR
24ASSEMBLY, DUAL COIN DROP, MDE20PDAZW0
24ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
25MAY W10161476
26SCREW
27METER CASE
28NUT, CAGE
29BOLT
