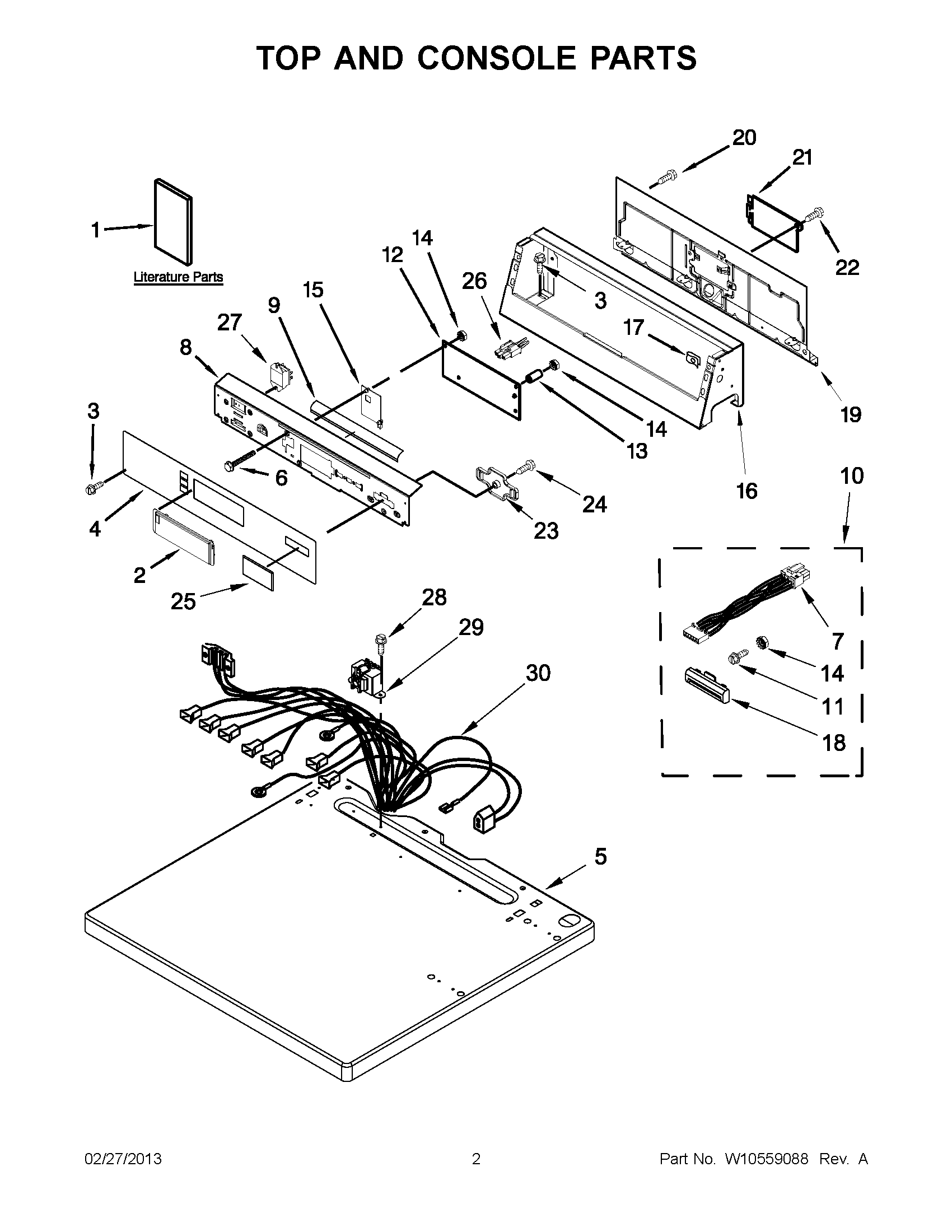

MDE18PRAYW0 01 – TOP AND CONSOLE PARTS

MDE18PRAYW0 01 – TOP AND CONSOLE PARTS

Written by

in

MDE18PRAYW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS CR
1MAY W10183571
1MAY W10474273
2COVER, DISPLAY
3SCREW
4LINER (NOT A SERVICEABLE PART)
5TOP (WHITE)
6SCREW
7CARD READER, HARNESS
8MAY W10461122
9MAY W10133515
10CARD READER, CONVERSION KIT
11SCREW
12MAY W10471563
13STANDOFF, CIRCUIT BOARD
14NUT
15MAY W10161476
16CONSOLE
17NUT, "U"
18BEZEL
19MAY 8317305
20SCREW
21MAY W10286180
22Screw, 8-32 x 1/32
23RETAINER, CARD READER COVER
24MAY 3400618
25COVER, CARD READER
26JUMPER, SWITCH SERVICE/VAULT
27MAY W10133335
28MAY 8533971
29MAY W10131839
30WIRING HARNESS (MAIN MDE18PDAYW0)
