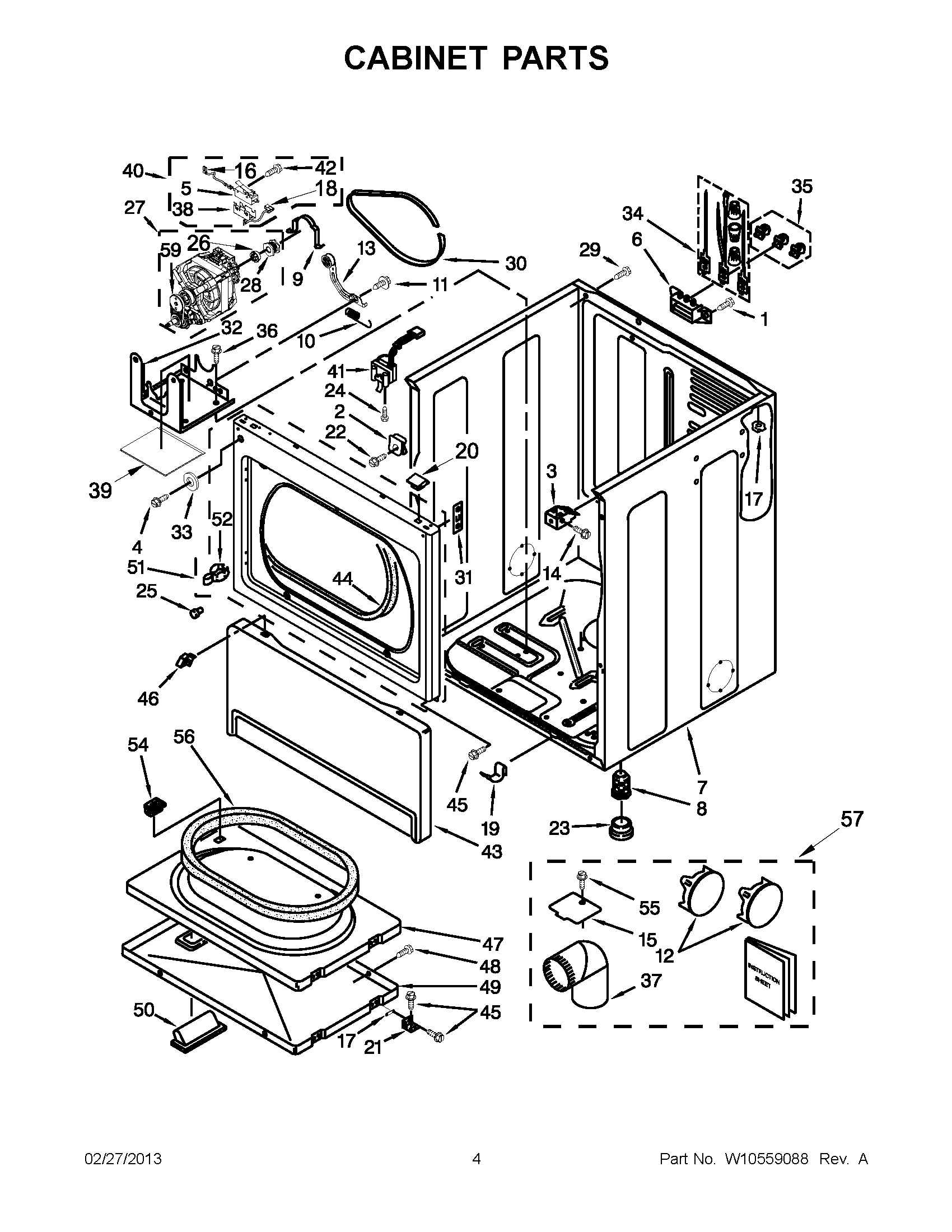

MDE18PRAZW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW, 10-16 X 1/2
2	NUT, "U"
3	CLIP, FRONT PANEL
4	SCREW
5	Switch, Broken Belt
6	MAY 3397659
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY 697750
13	MAY W10344192
14	SCREW
15	MAY 3394331
16	Wire, Belt (To Protector)
17	PLUG, HINGE SCREW
18	MAY 8539892
19	CLIP
20	LOCK TOP
21	ASSEMBLY, HINGE & PIN (SILVER)
22	SCREW
23	BOOT, FOOT
24	SCREW
25	BUMPER
26	MAY 3393657
27	MAY W10396034
28	PULLEY, MOTOR
29	MAY 8533974
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	WASHER
34	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
35	MAY 279393
36	SCREW
37	MAY 49026
38	MAY 8564011
39	DAPENING PANEL
40	MAY W10155571
41	MAY 3406109
42	Bolt, 6-20 x 1 1/4
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	MAY W10323061
48	Screw, 8-18 x 1/2
49	DOOR, FRONT
50	Handle, Door (White)
51	PANEL, FRONT (WHITE)
52	MAY 696144
54	MAY 3392538
55	SCREW
56	MAY 3390735
57	MAY 279818
