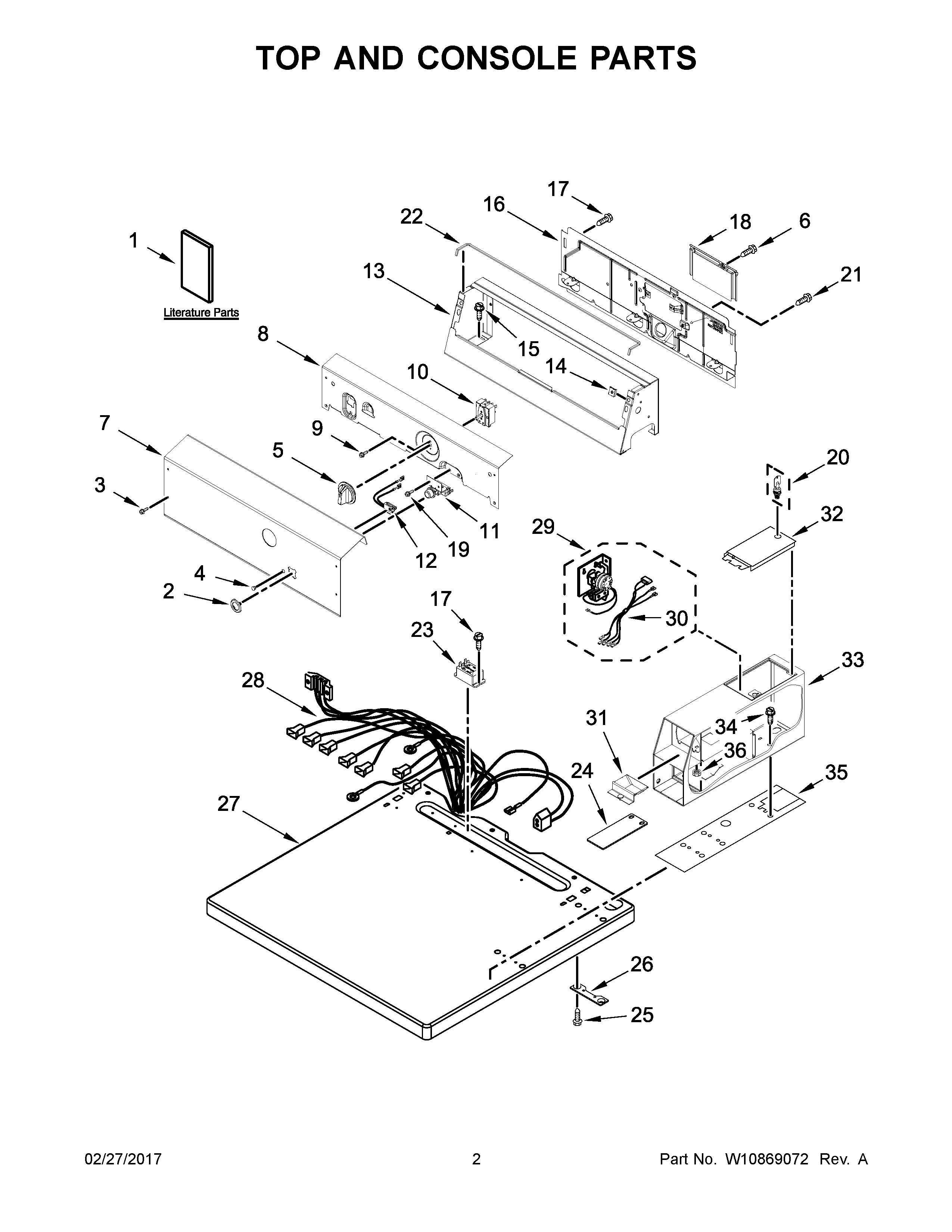

MDE20CSAGW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10868681
1CMAY W10868771
1AMAY W10868694
1BMAY W10868695
2BEZEL – PTS
3SCREW
4INDICATOR LIGHTS ASSEMBLY
5KNOB
6SCREW
7MAY W10845279
8MAY W10461070
9SCREW
10SWITCH, CYCLE SELECTION
11SWITCH, PUSH TO START
12LAMP, INDICATOR
13CONSOLE MDE20PDAGW0
14NUT, "U"
15MAY W10139210
16PANEL, REAR (CONSOLE)
17SCREW
18MAY W10601020
19MAY 8533971
20ASSEMBLY, CAM & SECURITY LOCK
21SCREW
22SEAL, PLATE COVER
23RELAY, HEATER 230V
24MAY W10153513
25SCREW
26MAY 3347825
27TOP (WHITE MDE20PDAGW0)
28MAY W10864825
29MAY W10135270
30MAY W10111029
31MAY W10133509
32ASSEMBLY, SERVICE DOOR
33MAY W10529172
34BOLT
35CUSHION, METER CASE
36MAY W10139060
