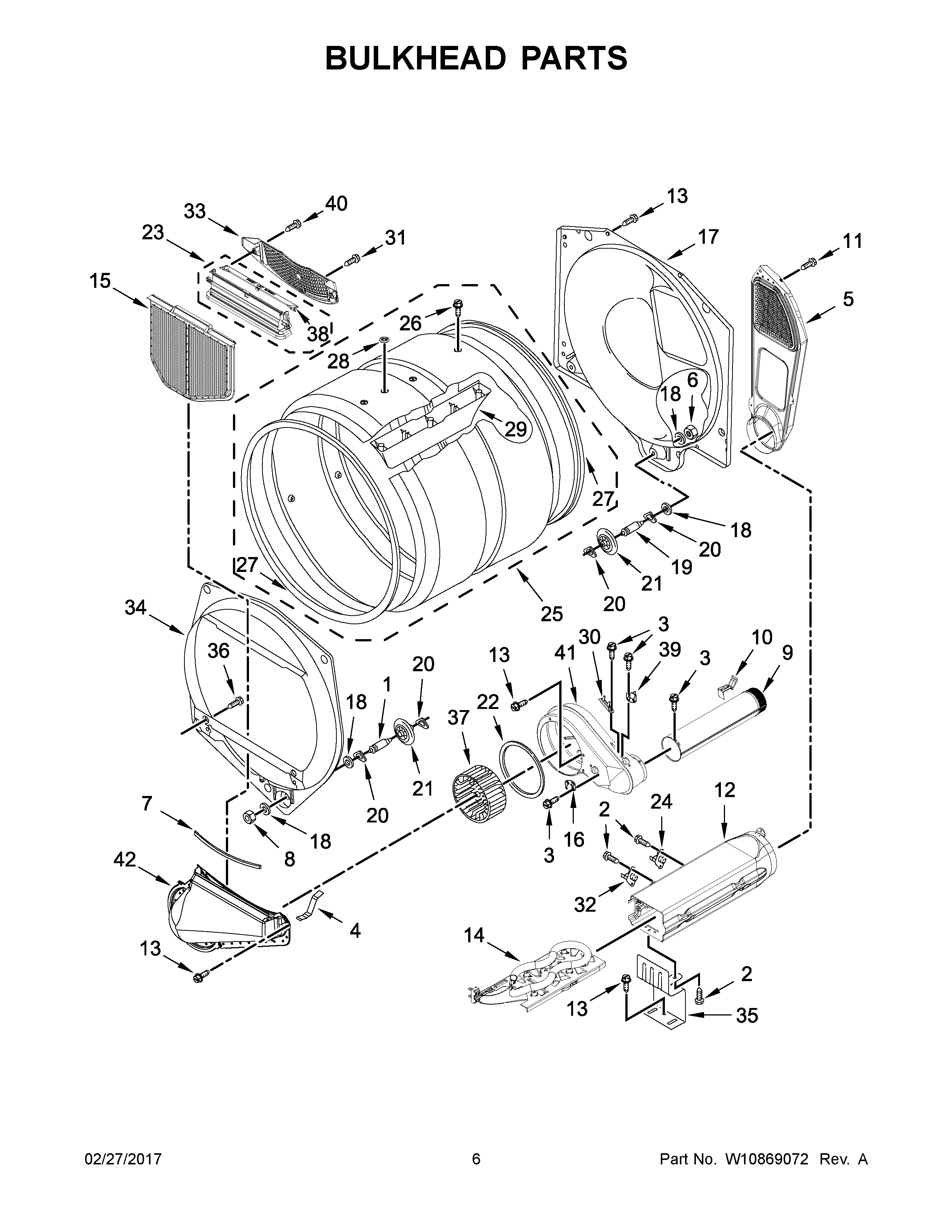

MDE20CSAGW0 04 – BULKHEAD PARTSadmin2025-04-26T10:12:34+00:00MDE20CSAGW0 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | SCREW,8-18 X 3/8 |
| 3 | MAY 8533971 |
| 4 | CLIP, SPRING |
| 5 | ASSEMBLY, AIR DUCT |
| 6 | NUT, HEX (LEFT HAND THREAD) |
| 7 | MAY 697814 |
| 8 | NUT, HEX |
| 9 | Exhaust Pipe |
| 10 | CLIP, EXHAUST |
| 11 | Screw |
| 12 | ASSEMBLY, WELD HEATER BOX |
| 13 | SCREW |
| 14 | Element, Heater |
| 15 | LINT SCREEN (WHITE) |
| 16 | THERMOSTAT 155~F ELECTRONIC |
| 17 | MAY 3387809 |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | SEAL, PLATE COVER |
| 23 | ASSEMBLY, OUTLET HOUSING |
| 24 | Thermal Cut-Off |
| 25 | MAY W10545922 |
| 26 | MAY W10219342 |
| 27 | MAY W10521118 |
| 28 | CAP, PLUG |
| 29 | BAFFLE, DRUM |
| 30 | THERMAL-LIMITER (89 C) |
| 31 | Screw, 8-18 x 1/2 |
| 32 | THERMOSTAT 250° F / 170F NC |
| 33 | GRILL, OUTLET |
| 34 | BULKHEAD, FRONT |
| 35 | MAY 8066099 |
| 36 | SCREW |
| 37 | MAY W10349492 |
| 38 | MAY W10685668 |
| 39 | THERMOSTAT, CYCLING (140F) |
| 40 | SCREW |
| 41 | MAY 8544362 |
| 42 | Lint Duct Assembly |
