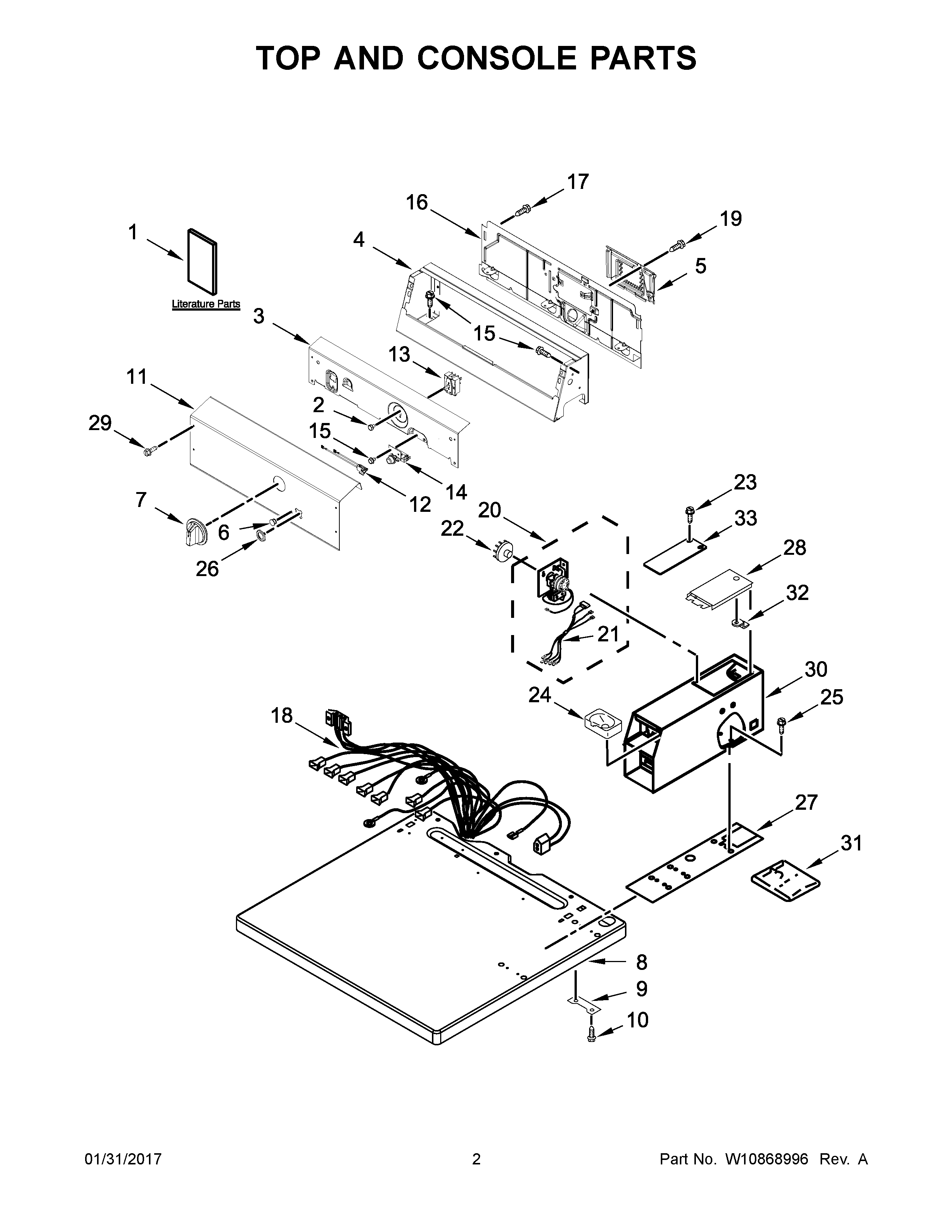

MDE20CSAZW0 02 – TOP AND CONSOLE PARTS

MDE20CSAZW0 02 – TOP AND CONSOLE PARTS

Written by

in

MDE20CSAZW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	WIRING DIAGRAM (MDE18CSAZW0)
1A	MAY W10296776
1	MAY W10868655
2	SCREW
3	MAY W10461070
4	CONSOLE MDE20PDAGW0
5	MAY W10286180
6	INDICATOR LIGHTS ASSEMBLY
7	KNOB
8	TOP (WHITE MDE20PDAGW0)
9	MAY 3347825
10	SCREW
11	MAY W10845278
12	LAMP, INDICATOR
13	SWITCH, CYCLE SELECTION
14	SWITCH, PUSH TO START
15	MAY 8533971
16	PANEL, REAR (CONSOLE)
17	SCREW
18A	MAY W10164588
18	MAY W10129843
19	Screw, 8-32 x 1/32
20	MAY W10135259
21	MAY W10177791
22	Timing Cam (Cam – 3 Pin)
22A	Timing Cam (Cam – 6 Pin)
23	SCREW
24	MAY W10133509
25	BOLT
26	BEZEL – PTS
27	CUSHION, METER CASE
28	ASSEMBLY, SERVICE DOOR
29	SCREW
30	MAY W10529172
31	KIT, VERTICAL 8-COIN
32	MAY W10156125
33	MAY W10153513
