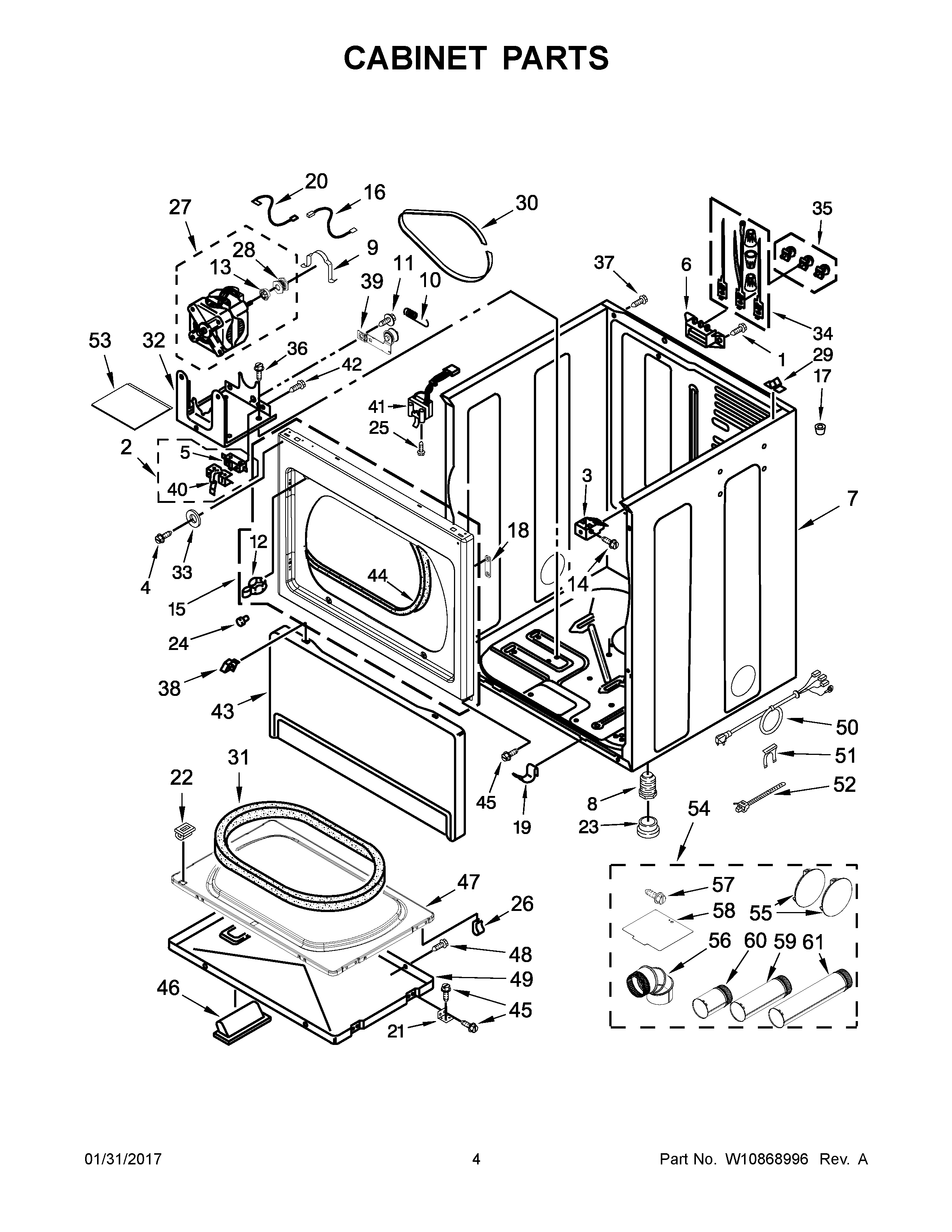

MDE20CSAZW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW, 10-16 X 1/2
2	Switch, Broken Belt
3	CLIP, FRONT PANEL
4	SCREW
5	MAY 3394881
6	MAY 3397659
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY 696144
13	MAY 3393657
14	SCREW
15	PANEL, FRONT (WHITE)
16	MAY W10167612
17	CONE WEDGE
18	PLUG, HINGE SCREW
19	CLIP
20	Wire, Jumper (Broken Belt Switch)
21	ASSEMBLY, HINGE & PIN (SILVER)
22	MAY 3392538
23	BOOT, FOOT
24	BUMPER
25	SCREW
26	NUT, "U"
27	MOTOR
28	PULLEY, MOTOR
29	LOCK TOP
30	BELT, DRIVE
31	MAY 3390735
32	MAY 3387118
33	WASHER
34	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
35	MAY 279393
36	SCREW
37	SCREW
38	RETAINER
39	PULLEY-IDLER ASSEMBLY
40	MAY 8066120
41	MAY 3406109
42	Screw, 6-20 x 1-1/16
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	MAY 342055
46	Handle, Door (White)
47	MAY W10323061
48	MAY W10139210
49	DOOR, FRONT
50	CORD, POWER
51	STRAIN-RELIEF CLIP
52	CABLE TIE
53	MOTOR, SOUND PAD
54	MAY 279818
55	MAY 697750
56	MAY 49026
57	MAY 488729
58	MAY 3394331
59	PIPE, EXHAUST (MEDIUM)
60	MAY 8563750
61	PIPE, EXHAUST (LONG)
