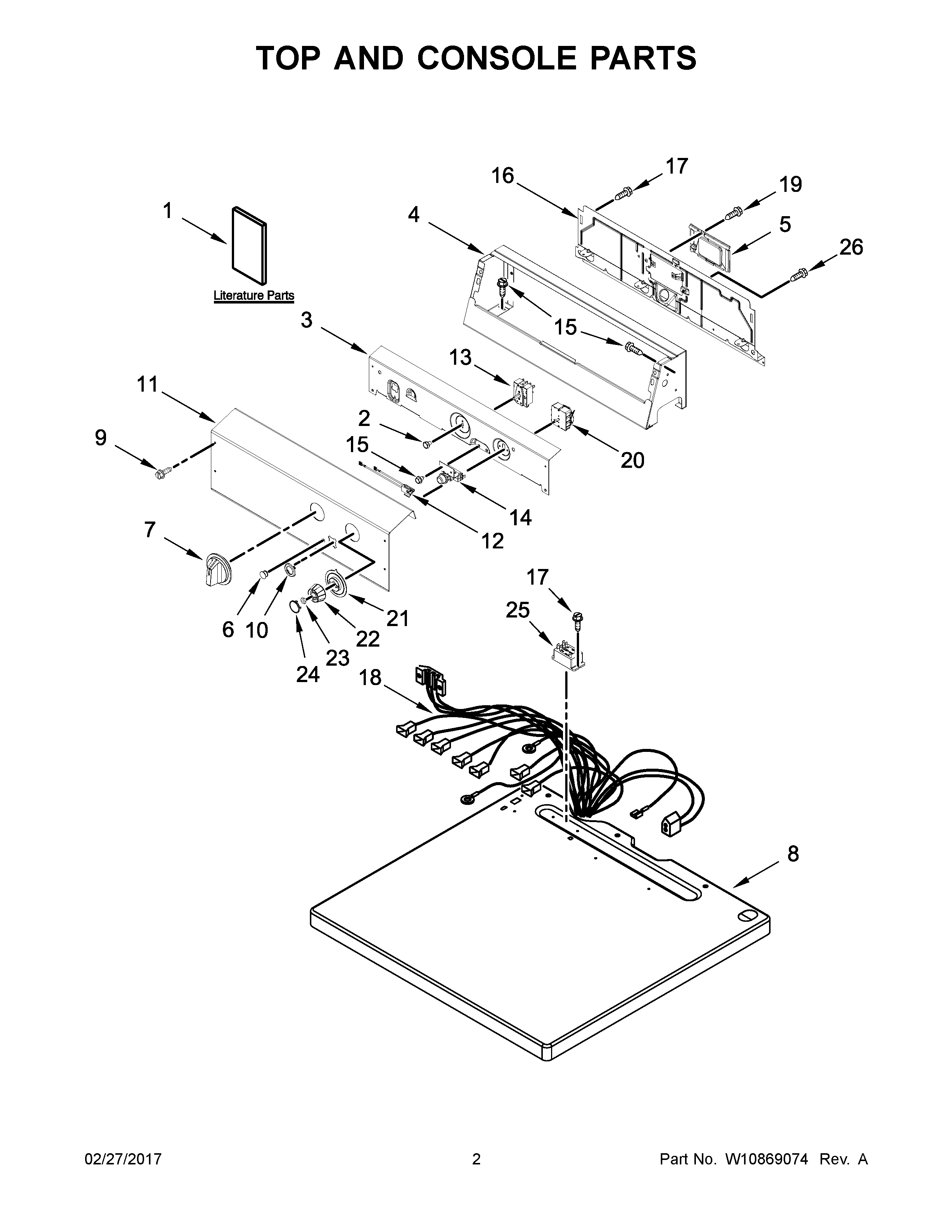

MDE20MNAGW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10868681
1AMAY W10868962
2SCREW
3BACK BRACKET, NON-COIN
4CONSOLE
5MAY W10601020
6INDICATOR LIGHTS ASSEMBLY
7KNOB
8TOP (WHITE)
9SCREW
10BEZEL – PTS
11MAY W10845281
12LAMP, INDICATOR
13SWITCH, CYCLE SELECTION
14SWITCH, PUSH TO START
15MAY 8533971
16PANEL, REAR (CONSOLE)
17SCREW
18MAY W10864827
19SCREW
20MAY W10878421
21SKIRT, DIAL
22MAY W10906058
23NUT, HEX
24CAP, KNOB
25RELAY, HEATER 230V
26SCREW
