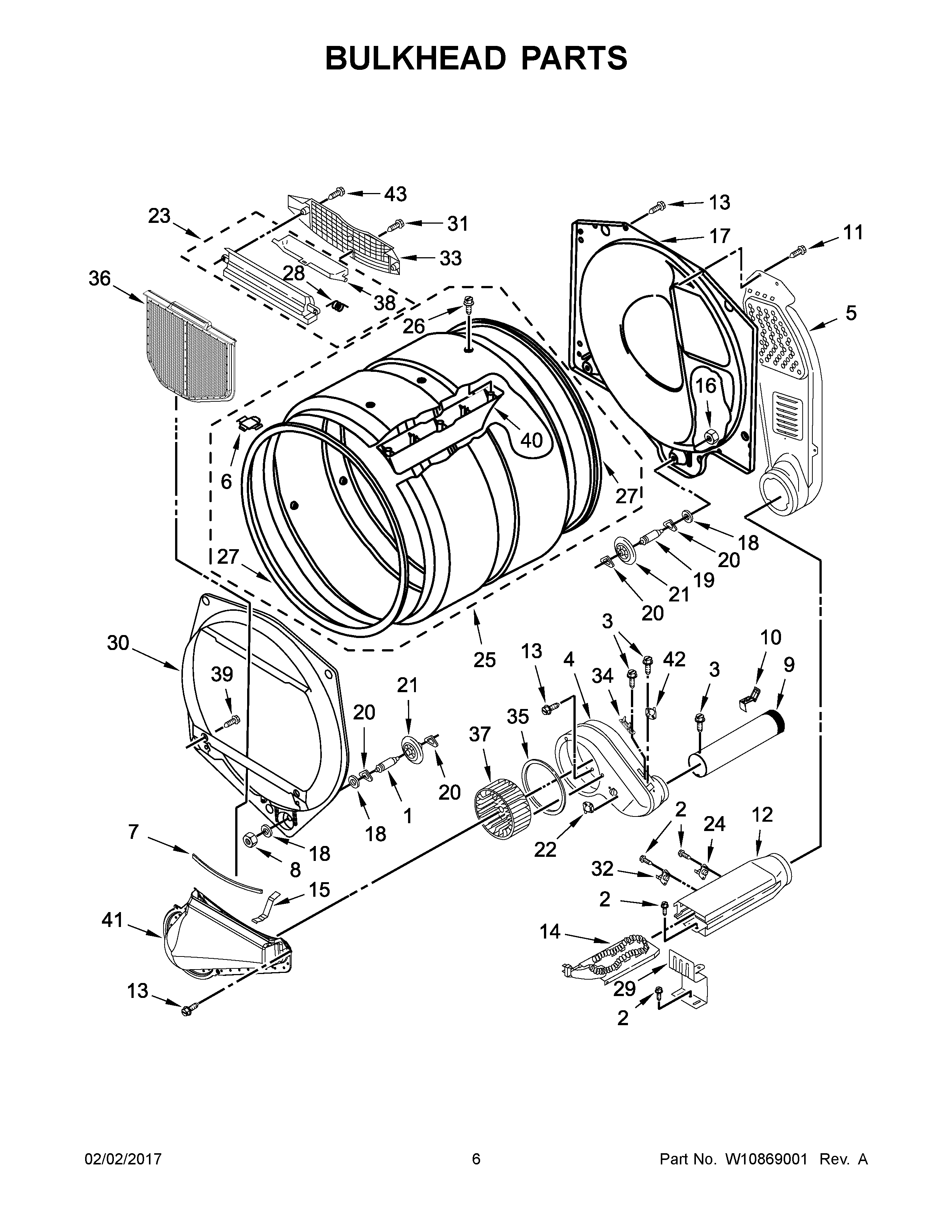

MDE20MNAYW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	MAY 8533971
4	HOUSING, BLOWER
5	ASSEMBLY, AIR DUCT
6	Plug, Drum Hole
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	Screw
12	ASSEMBLY, WELD HEATER BOX
13	SCREW
14A	ELEMENT, HEATER MDE20MNAZW0
14	ELEMENT, HEATER MDE20MNAYW0
15	CLIP, SPRING
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	THERMOSTAT 155~F ELECTRONIC
23	ASSEMBLY, OUTLET HOUSING
24	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	Spring, Lint Screen Door
29	MAY 8066099
30	BULKHEAD, FRONT
31	Screw, 8-18 x 1/2
32	MAY 3391914
33	GRILL, OUTLET
34	Fuse, Thermal (91 C)
35	SEAL, PLATE COVER
36	LINT SCREEN (WHITE)
37	MAY W10349492
38	MAY W10685668
39	SCREW
40	BAFFLE, DRUM
41	Lint Duct Assembly
42	THERMOSTAT
43	SCREW
