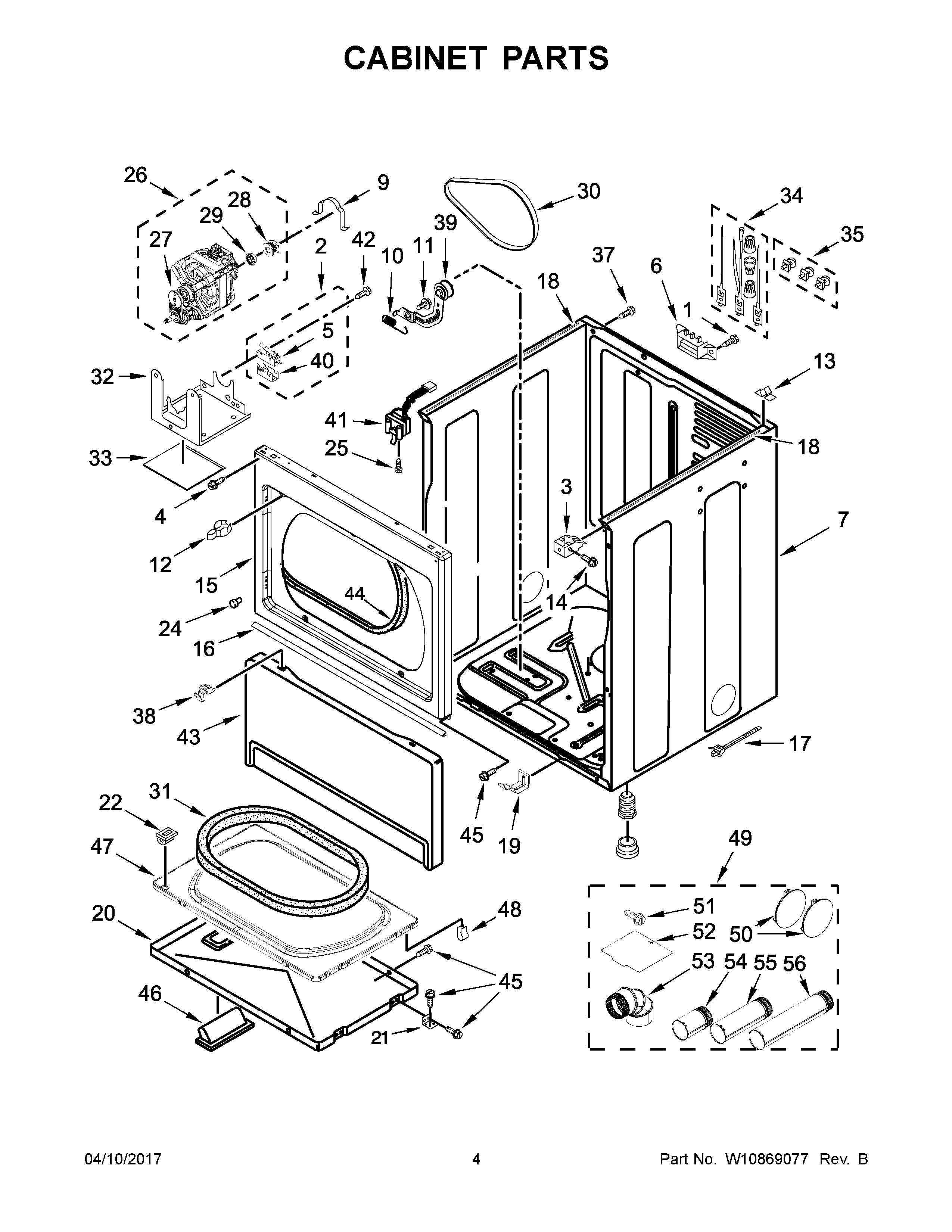

MDE20PNAGW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW, 10-16 X 1/2
2	ASSEMBLY, SWITCH
3	CLIP, FRONT PANEL
4	SCREW
5	ASSEMBLY, SWITCH ACTUATOR
6	MAY 3397659
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY 696144
13	LOCK TOP
14	SCREW
15	PANEL, FRONT
16	MAY W10576519
17	CABLE TIE
18	SEAL-FOAM (IEC)
19	CLIP
20	DOOR, FRONT
21	ASSEMBLY, HINGE & PIN (SILVER)
22	MAY 3392538
23	BOOT, FOOT
24	BUMPER
25	SCREW
26	ASSEMBLY, MOTOR 50 HZ.
27	MAY 3405160
28	MAY W10167237
29	MAY 3393657
30	BELT, DRIVE
31	MAY 3390735
32	MAY W10135695
33	MOTOR, SOUND PAD
34	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
35	MAY 279393
36	SCREW
37	SCREW
38	RETAINER
39	MAY W10344192
40	MAY 8564011
41	MAY W10237959
42	SCREW
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	MAY 342055
46	Handle, Door (White)
47	MAY W10323061
48	NUT, "U"
49	MAY 279818
50	MAY 697750
51	MAY 488729
52	MAY 3394331
53	MAY 49026
54	MAY 8563750
55	PIPE, EXHAUST (MEDIUM)
56	PIPE, EXHAUST (LONG)
