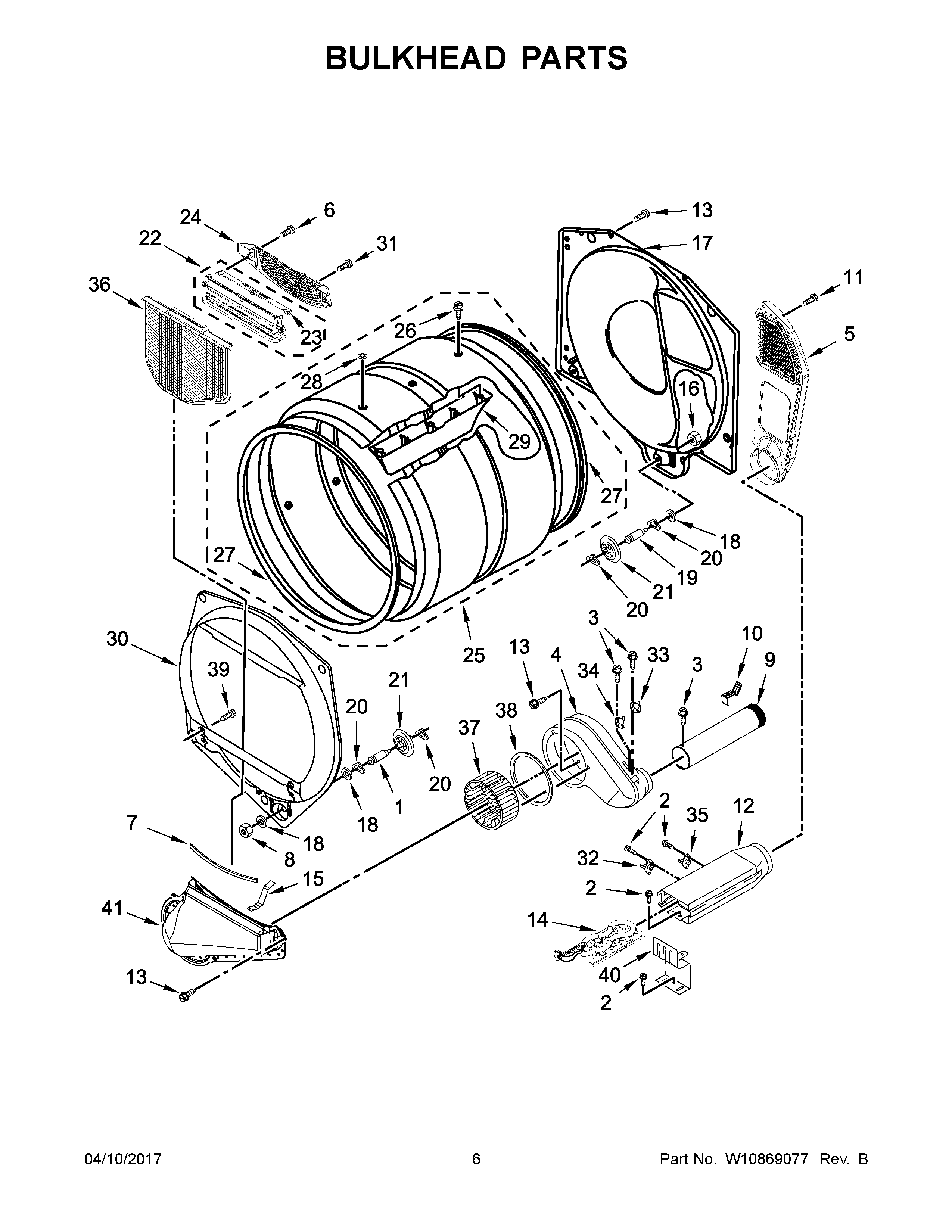

MDE20PNAGW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	MAY 8533971
4	MAY 8544363
5	ASSEMBLY, AIR DUCT
6	SCREW
7	MAY 697814
8	NUT, HEX
9	Exhaust Pipe
10	CLIP, EXHAUST
11	Screw
12	ASSEMBLY, WELD HEATER BOX
13	SCREW
14	Element, Heater
15	CLIP, SPRING
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	ASSEMBLY, OUTLET HOUSING
23	MAY W10685668
24	GRILL, OUTLET
25	MAY W10545922
26	MAY W10219342
27	MAY W10521118
28	CAP, PLUG
29	BAFFLE, DRUM
30	BULKHEAD, FRONT
31	Screw, 8-18 x 1/2
32	THERMOSTAT 250Â° F / 170F NC
33	THERMISTOR
34	THERMAL-LIMITER (89 C)
35	MAY W10154212
36	LINT SCREEN (WHITE)
37	MAY W10349492
38	SEAL, PLATE COVER
39	SCREW
40	MAY 8066099
41	Lint Duct Assembly
