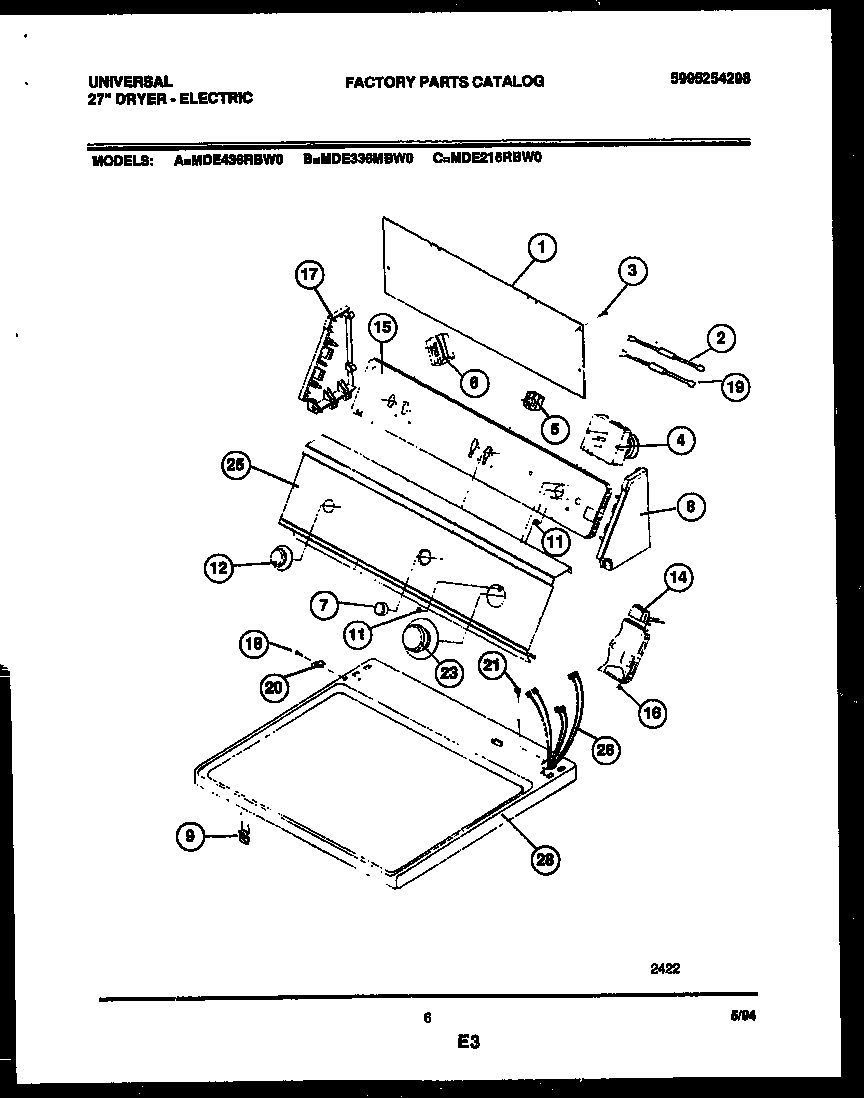

MDE216RBD0 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	5303297177 Frigidaire Dryer Control Timer
4	131062300 Frigidaire Timer
5	WCI 131048000
6	WCI 131259200
7	KNOB-START SWITCH, BLACK
8	WCI 5303291352
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
12	WCI 131118600
14	WCI 5303210285
15	WCI 131297306
16	5303015671 Frigidaire Bracket Termination Screw
17	WCI 5303291344
18	WCI 5303289526
19	RESISTOR, 3.0K
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	KNOB-TIMER
25	WCI 131290100
25	WCI 13129000
25	WCI 131346100
26	WCI 131255900
26	WCI 131266400
26	WCI 131235100
28	WCI 5303931763
28	WCI 131130402
