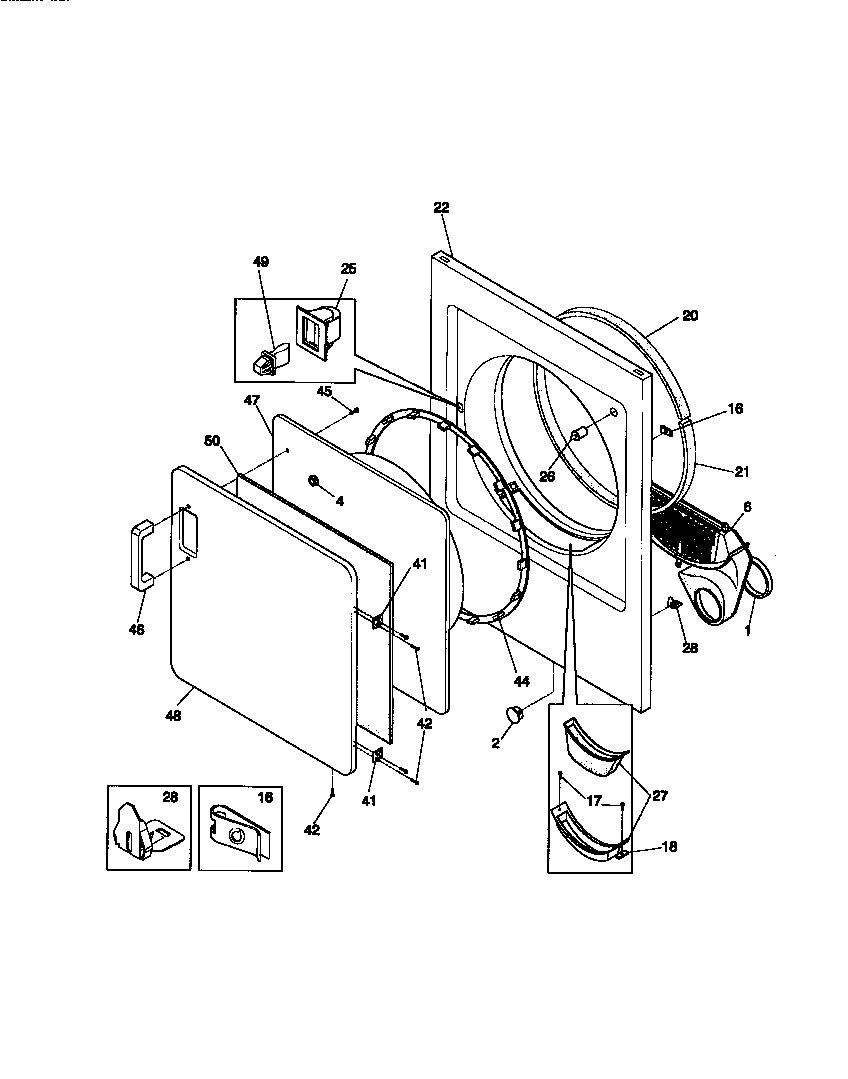

MDE216RBW1 03 – FRONT PANEL/LINT FILTER

MDE216RBW1 03 – FRONT PANEL/LINT FILTER

Written by

in

MDE216RBW1 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
2131397000 Frigidaire Plug
4WCI 3201205
5134417000 Frigidaire Seal
6DUCT-AIR
16WCI 131063700
17131420300 Frigidaire Screw
18CLIP
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21WCI 5303281049
22WCI 5303937118
25131658800 Frigidaire Dryer Door Catch Repair Kit
26SWITCH-DOOR
27WCI 131390300
28CLIP GUIDE (4)
41HINGE, DOOR (2)
42134156200 Frigidaire Screw
44GASKET, DOOR
45WCI 5303281051
46HANDLE-DOOR-WHITE
47PANEL – ID WHITE
48PANEL-OUTER DOOR, WHITE
495303207102 Frigidaire Door Strike
50SHIELD, HEAT
