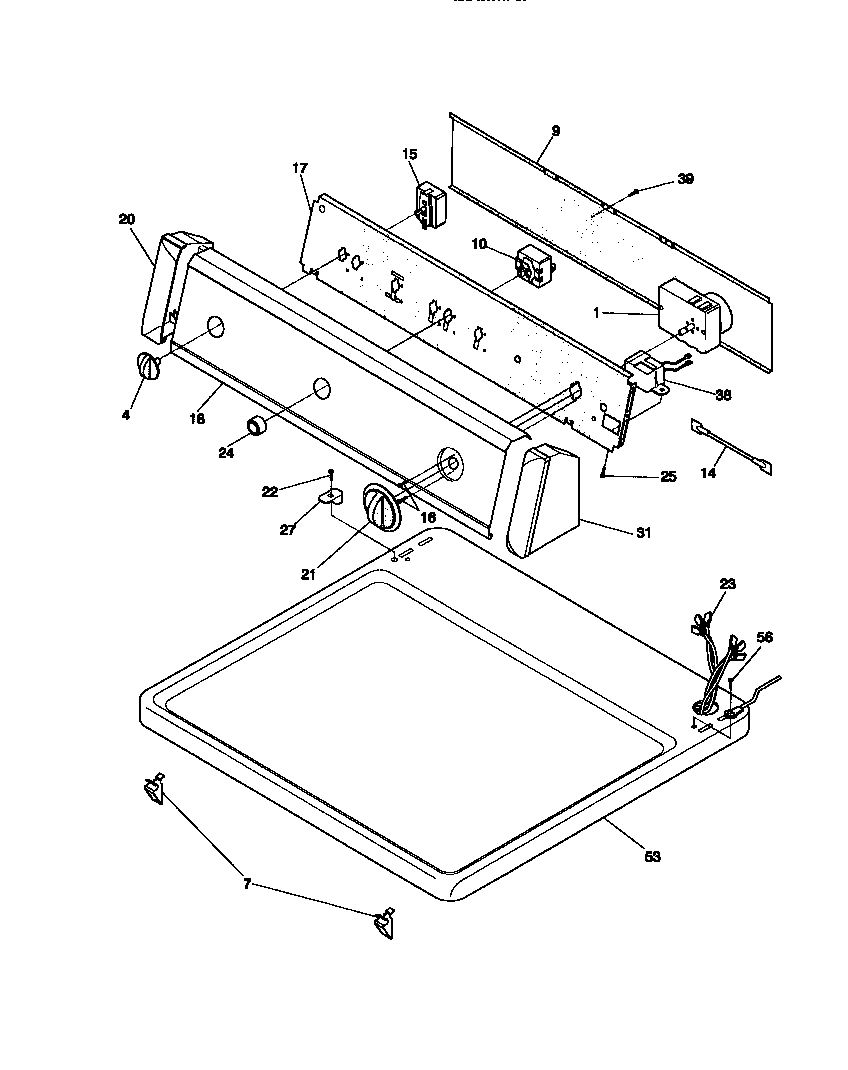

MDE216RBW1 04 – CONTROLS/TOP PANEL

Products

Position	Product
*52962	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	5303297177 Frigidaire Dryer Control Timer
7	3205821 Frigidaire Clip
9	COVER-BACK
10	WCI 131048000
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	PANEL-CONTROL
20	WCI 5303291344
21	KNOB-TIMER
22	WCI 131266300
23	WCI 131255900
24	KNOB-START SWITCH, BLACK
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 5303291352
39	131205100 Frigidaire Screw
53	WCI 131130402
56	131243800 Frigidaire Screw
