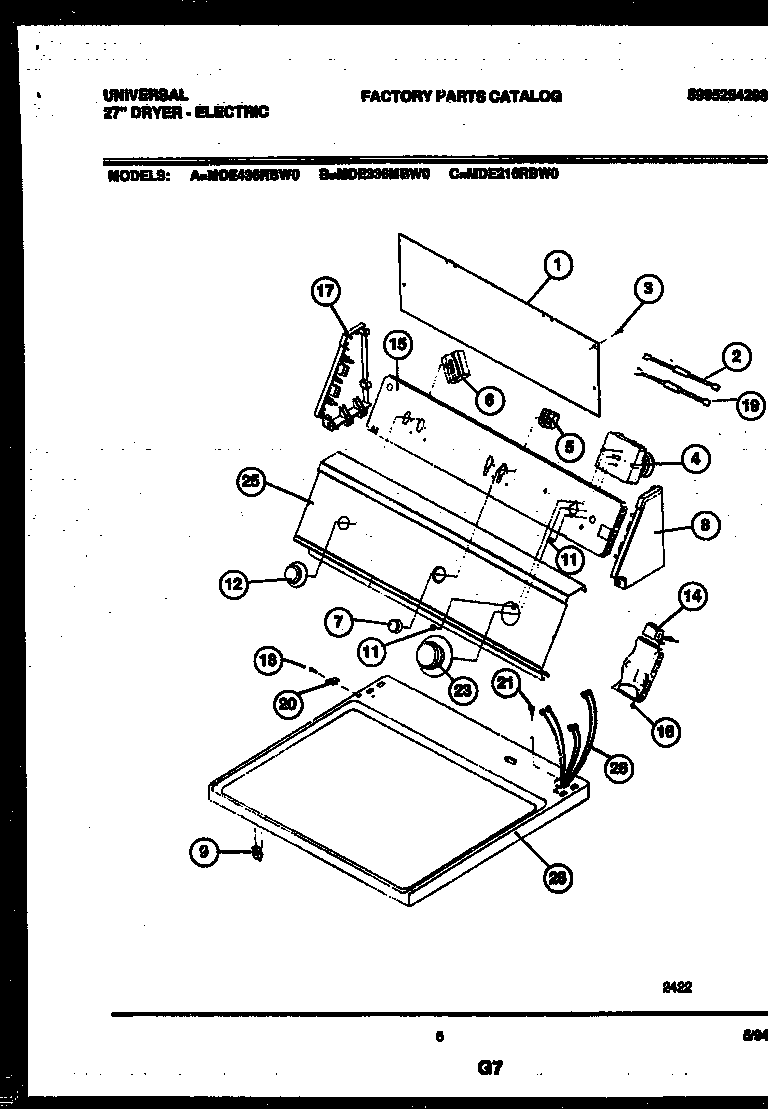

MDE216RBWD0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131062300 Frigidaire Timer
45303297177 Frigidaire Dryer Control Timer
5WCI 131048000
6WCI 131259200
7KNOB-START SWITCH, BLACK
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12WCI 131118600
14WCI 5303210285
15WCI 131297306
165303015671 Frigidaire Bracket Termination Screw
17WCI 5303291344
18WCI 5303289526
19WCI 2105877
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23KNOB-TIMER
25WCI 131290100
25WCI 13129000
25WCI 131346100
26WCI 131235100
26WCI 131255900
26WCI 131266400
28WCI 5303931763
28WCI 131130402
