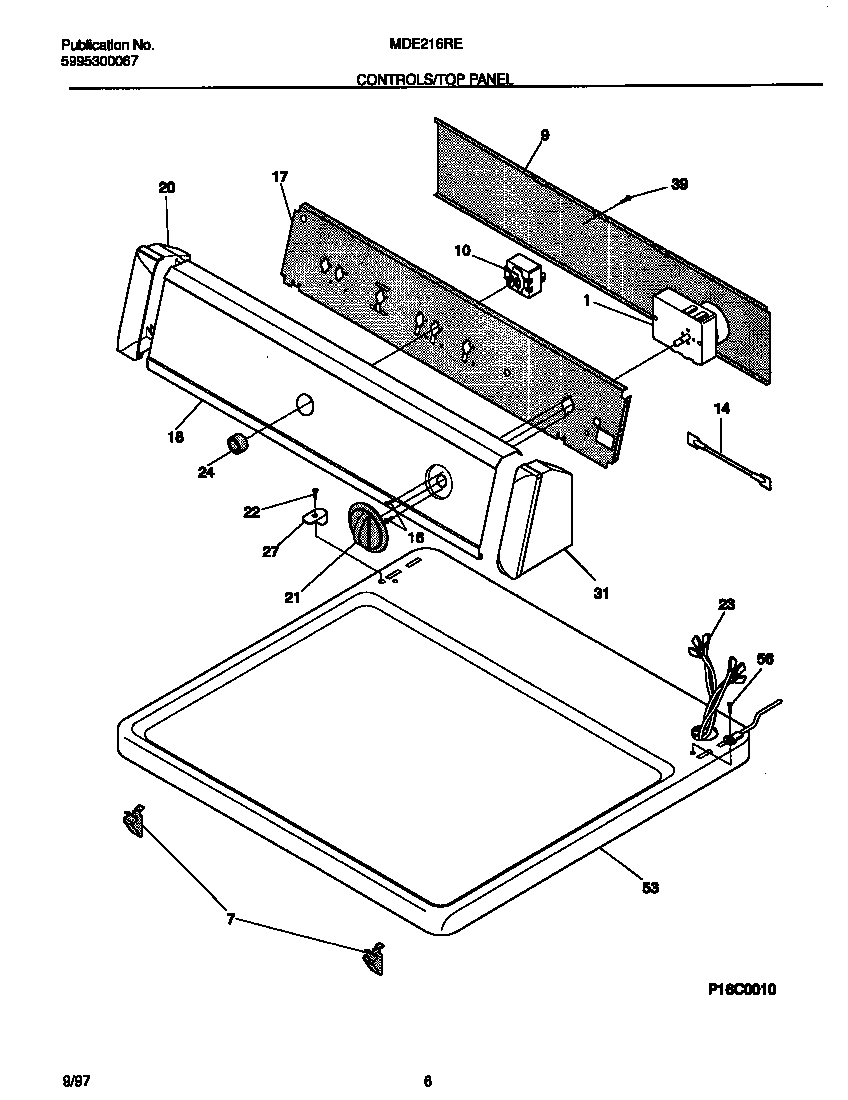

MDE216REW1 04 – CONTROLS/TOP PANEL

MDE216REW1 04 – CONTROLS/TOP PANEL

Written by

in

MDE216REW1 04 – CONTROLS/TOP PANEL

Products

PositionProduct
15303297177 Frigidaire Dryer Control Timer
73205821 Frigidaire Clip
9COVER-BACK
10131469000 Frigidaire Switch-Push/Start P1
14RESISTOR-POWER, 4.4K
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131509100
20WCI 5303291344
21WCI 131118902
22WCI 131266300
23WCI 131516300
24KNOB-START SWITCH, BLACK
27CLIP-CONSOLE MTG
31WCI 5303291352
39131205100 Frigidaire Screw
53WCI 131601318
56131243800 Frigidaire Screw
