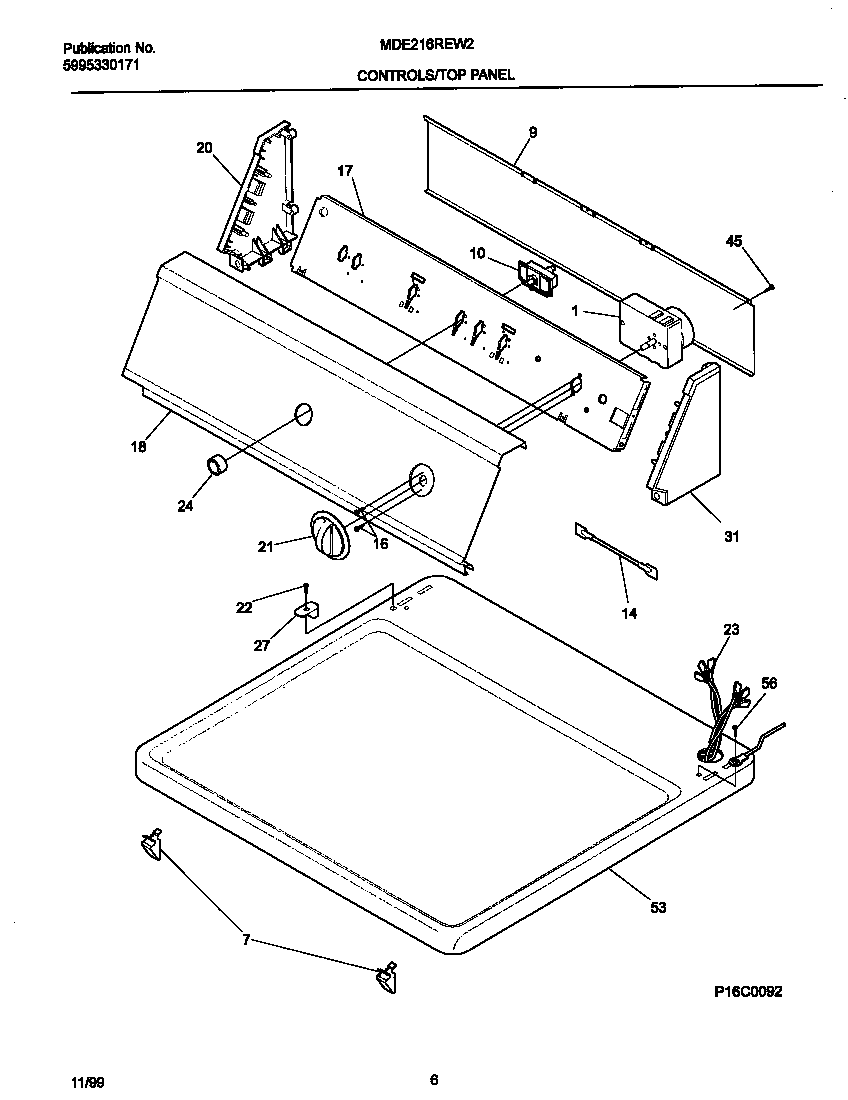

MDE216REW2 04 – CONTROLS/TOP PANEL

Products

Position	Product
*82165	Asmy-bezel black
1	5303297177 Frigidaire Dryer Control Timer
7	3205821 Frigidaire Clip
9	COVER-BACK
10	131469000 Frigidaire Switch-Push/Start P1
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 131509100
20	WCI 5303291344
21	WCI 131118902
22	WCI 131266300
23	WCI 131844700
24	KNOB-START SWITCH, BLACK
27	CLIP-CONSOLE MTG
31	WCI 5303291352
45	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
