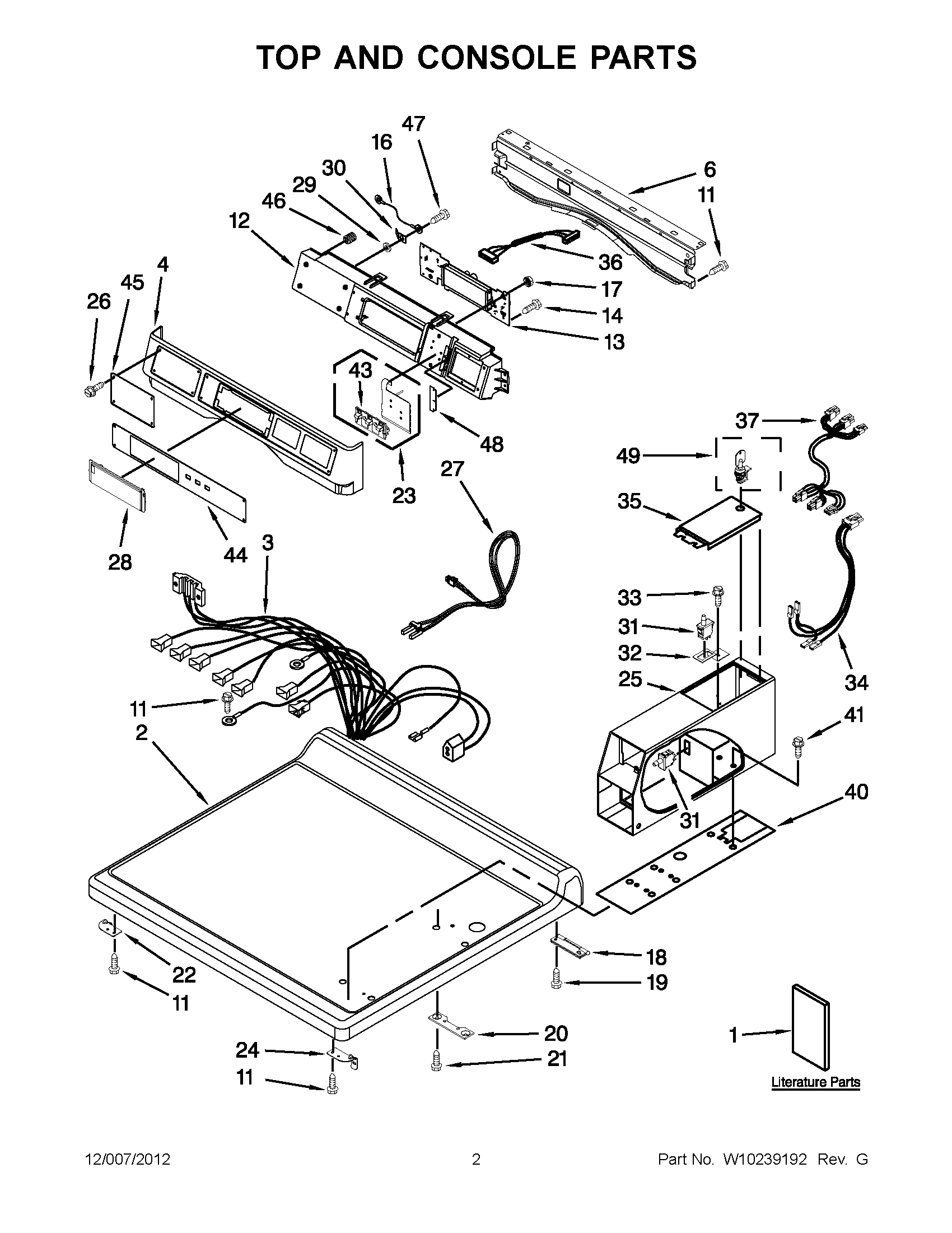

MDE22PDAGW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10239198
1	MAY W10233250
1	MAY W10239197
2	MAY W10137411
3	MAY W10111045
4	MAY W10137459
6	MAY 8565237
11	MAY W10080700
12	MAY W10137427
13	MAY W10166343
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	SCREW
20	MAY 3347825
21	SCREW
22	MAY W10137445
23	SWITCH, MEMBRANE & BACKER PLATE
24	MAY W10137444
25	CASE, METER
26	SCREW
27	COIN-OPTIC SENSOR ASSEMBLY (WHITE)
28	Cover, Display
29	MAY W10189075
30	MAY 3373818
31	MAY W10131838
32	MAY W10133508
33	MAY W10139210
34	MAY W10139456
35	ASSEMBLY, SERVICE DOOR
36	MAY W10166307
37	MAY W10166308
40	MAY W10137448
41	MAY W10223792
41	BOLT, METER CASE MOUNTING (SCREW)
43	BUTTON, PUSH
44	MAY W10135194
45	DISPENSER, FASCIA
46	INSERT
47	Screw 8-32 x 1/4
48	MAY W10187276
49	ASSEMBLY, CAM & SECURITY LOCK
