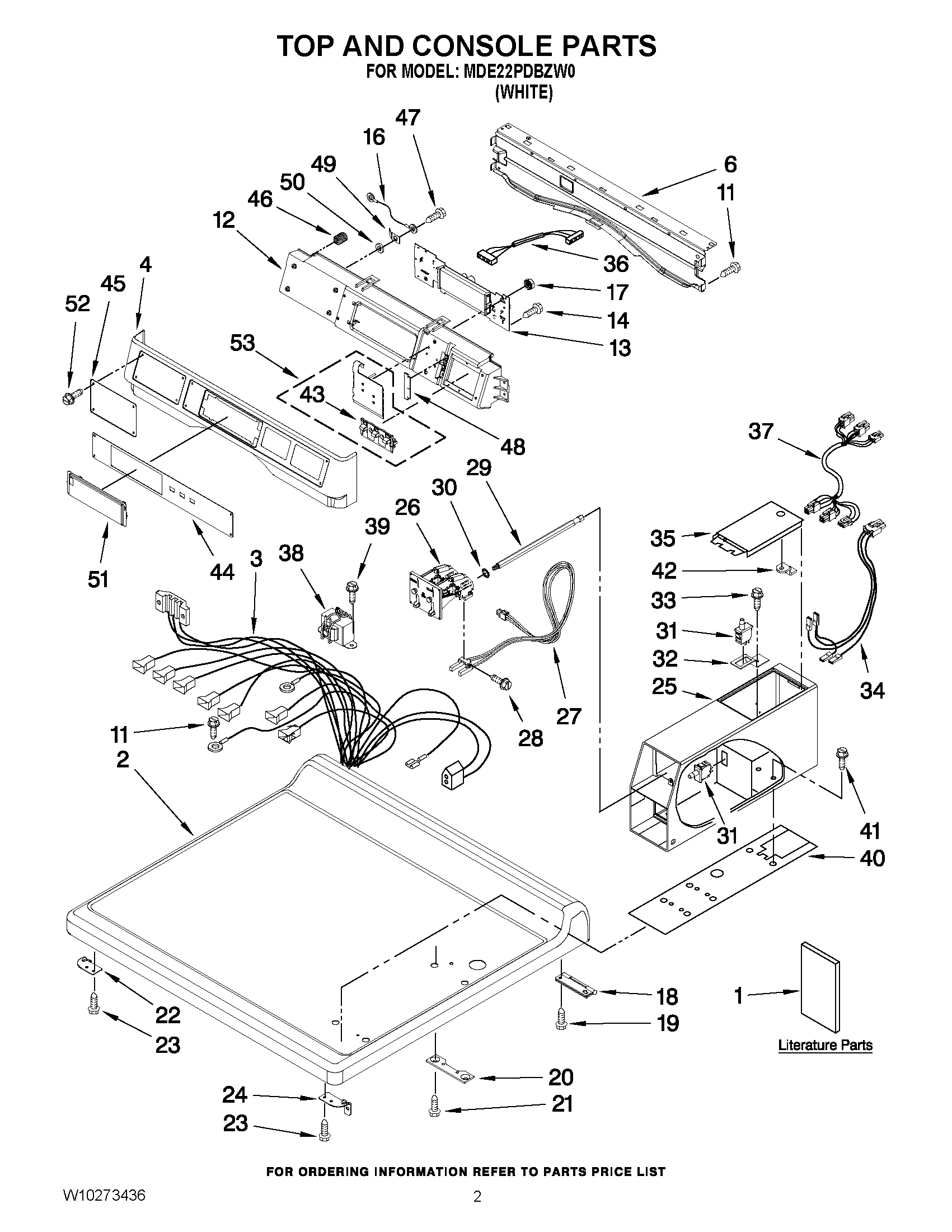

MDE22PDBZW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10273436
1	MAY W10239200
1	INSTALLATION INSTRUCTION
2	MAY W10137411
3	MAY W10166306
4	MAY W10137459
6	MAY 8565237
12	MAY W10137427
13	MAY W10166360
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	MAY 3347825
21	SCREW
22	MAY W10137445
23	SCREW
24	MAY W10137444
25	CASE, METER
26	Coin Drop Assy.
27	Coin Optic Sensor Assembly
28	SCREW
29	MAY W10137319
30	Washer
31	MAY W10131838
32	MAY W10133508
33	MAY W10139210
34	MAY W10139456
35	ASSEMBLY, SERVICE DOOR
36	MAY W10166307
37	MAY W10166308
38	MAY W10131839
39	MAY 8533971
40	MAY W10137448
41	MAY W10223792
41	BOLT, METER CASE MOUNTING (SCREW)
42	MAY W10156125
43	BUTTON, PUSH
44	MAY W10137438
45	DISPENSER, FASCIA
46	INSERT
47	Screw 8-32 x 1/4
48	MAY W10187276
49	MAY 3373818
50	MAY W10189075
51	Cover, Display
52	SCREW
53	SWITCH, MEMBRANE & BACKER PLATE
