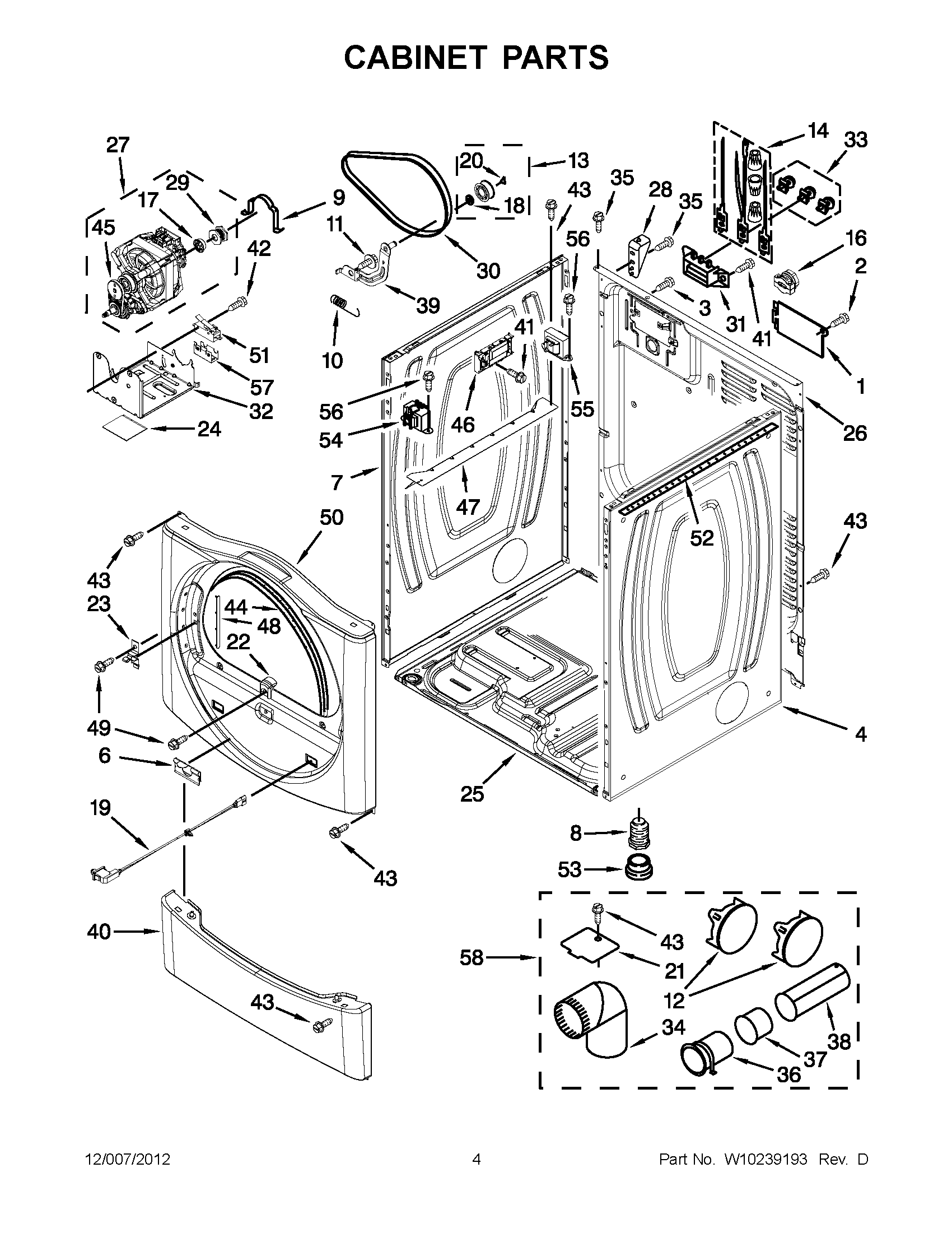

MDE22PNAGW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8576583
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 8565048
6	MAY 8519459
7	MAY 8565054
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
16	Clip, Strain Relief
17	MAY 3393657
18	MAY 233520
19	MAY W10251066
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	DAPENING PANEL
25	MAY W10225178
26	MAY W10225180
27	ASSEMBLY, MOTOR (50 HZ.)
28	MAY W10137398
29	MAY W10167237
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY 49026
35	MAY W10080700
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	MAY 8540621
41	MAY 8533971
42	SCREW
43	SCREW
44	MAY 3387242
45	MAY 3405160
46	BOARD, CONTROL
47	Bracket, Control
48	Plug, Front Panel
49	MAY W10080710
50	PANEL, FRONT
51	ASSEMBLY, SWITCH
52	SEAL-FOAM (IEC)
53	BOOT, FOOT
54	TRANSFORMER
55	TRANSFORMER, 240 – 120 VAC
56	MAY W10080820
57	MAY 8564011
58	MAY 279818
