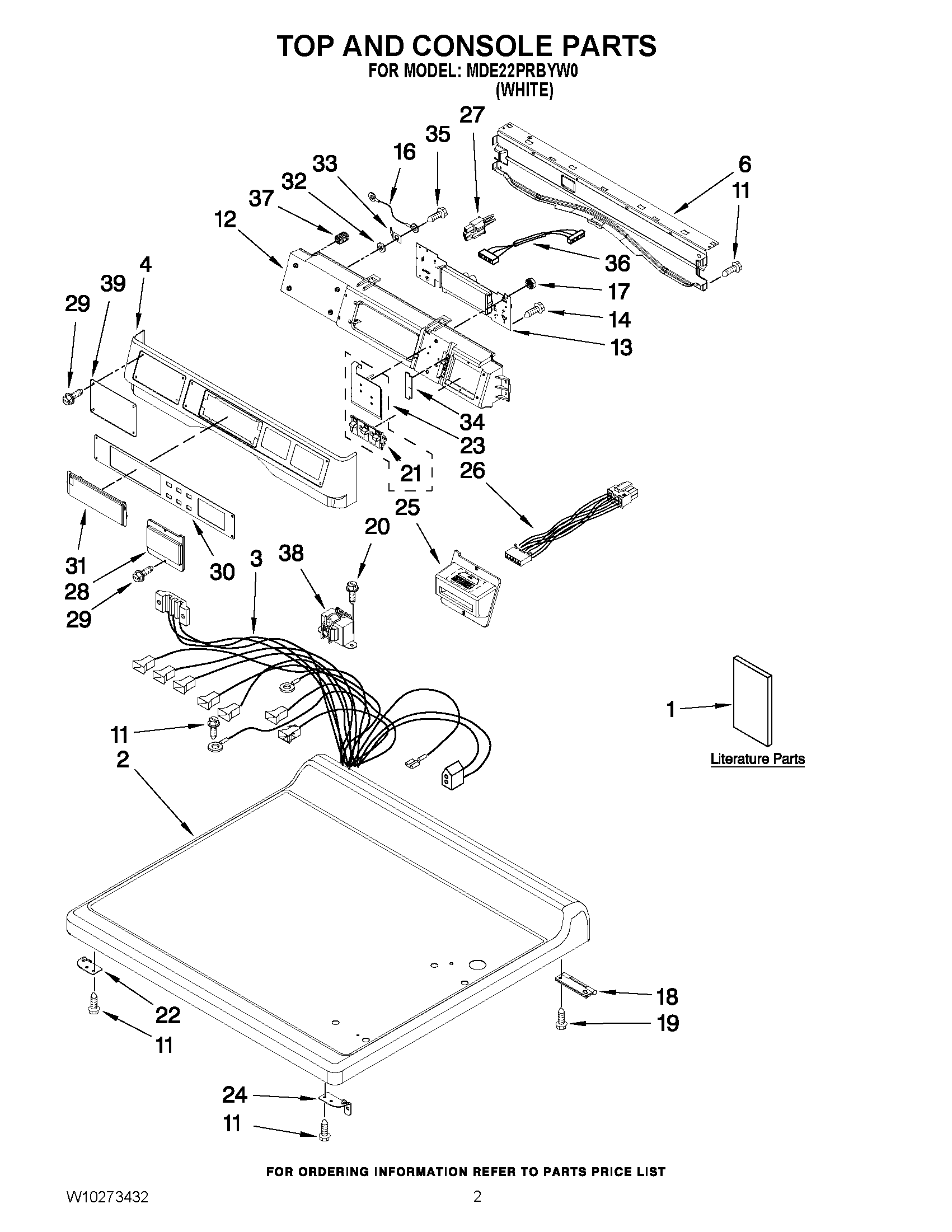

MDE22PRBYW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10239200
1	INSTALLATION INSTRUCTION
1	MAY W10165325
1	MAY W10273432
2	TOP (WHITE)
3	MAY W10111005
4	MAY W10137459
6	MAY 8565237
11	SCREW
12	MAY W10137427
13	MAY W10166363
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	MAY 8533971
21	BUTTON, PUSH
22	MAY W10137445
23	SWITCH, MEMBRANE & BACKER PLATE
24	MAY W10137444
25	MAY W10137454
26	CARD READER, HARNESS
27	JUMPER, SWITCH SERVICE/VAULT
28	MAY W10137477
29	SCREW
30	MAY W10137439
31	Cover, Display
32	MAY W10189075
33	MAY 3373818
34	MAY W10187276
35	Screw 8-32 x 1/4
36	MAY W10166307
37	INSERT
38	MAY W10131839
39	DISPENSER, FASCIA
