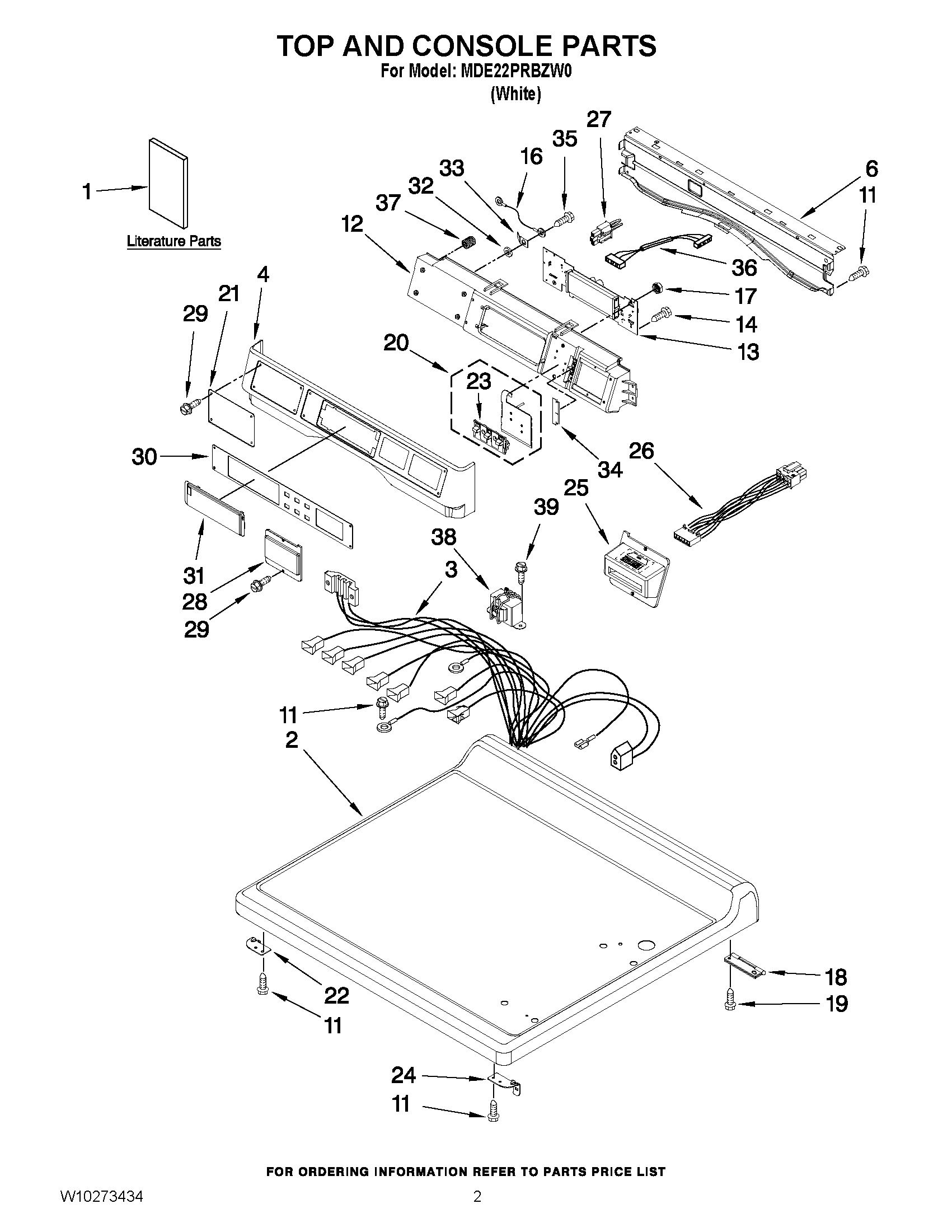

MDE22PRBZW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10239200
1	INSTALLATION INSTRUCTION
1	MAY W10273434
1	MAY W10165325
2	TOP (WHITE)
3	MAY W10166306
4	MAY W10137459
6	MAY 8565237
11	SCREW
12	MAY W10137427
13	MAY W10166363
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	SWITCH, MEMBRANE & BACKER PLATE
21	DISPENSER, FASCIA
22	MAY W10137445
23	BUTTON, PUSH
24	MAY W10137444
25	MAY W10137454
26	CARD READER, HARNESS
27	JUMPER, SWITCH SERVICE/VAULT
28	MAY W10137477
29	SCREW
30	MAY W10137439
31	Cover, Display
32	MAY W10189075
33	MAY 3373818
34	MAY W10187276
35	Screw 8-32 x 1/4
36	MAY W10166307
37	INSERT
38	MAY W10131839
39	MAY 8533971
