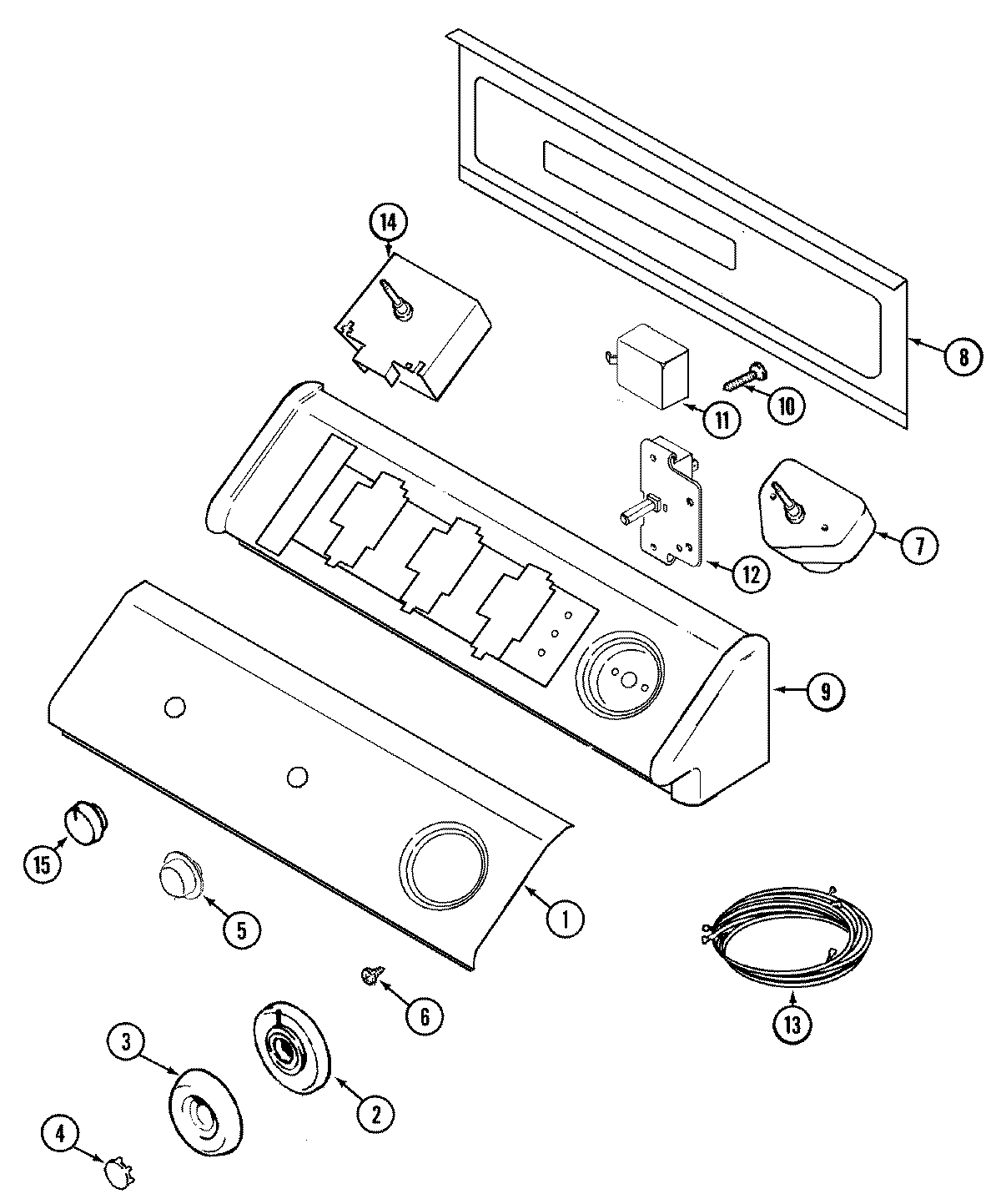

MDE2300AZW 03 – CONTROL PANEL

Products

PositionProduct
1MAY 33002528
1MAY Y22002339
2WP33001621 Whirlpool Dial Knob
3WP22001659 Whirlpool Timer Knob
4WP22001664 Whirlpool Timer Knob
5MAY 33001619
6WP90767 Whirlpool Screw
7WP33001624 Whirlpool Timer
8MAY 33001806
9MAY 22002285
10MAY 216423
11MAY 33001623
12MAY 33001861
13MAY 33001920
14MAY 33001642
15WP22001663 Whirlpool Selector Knob
16MAY 33002531
16MAY 33002525
