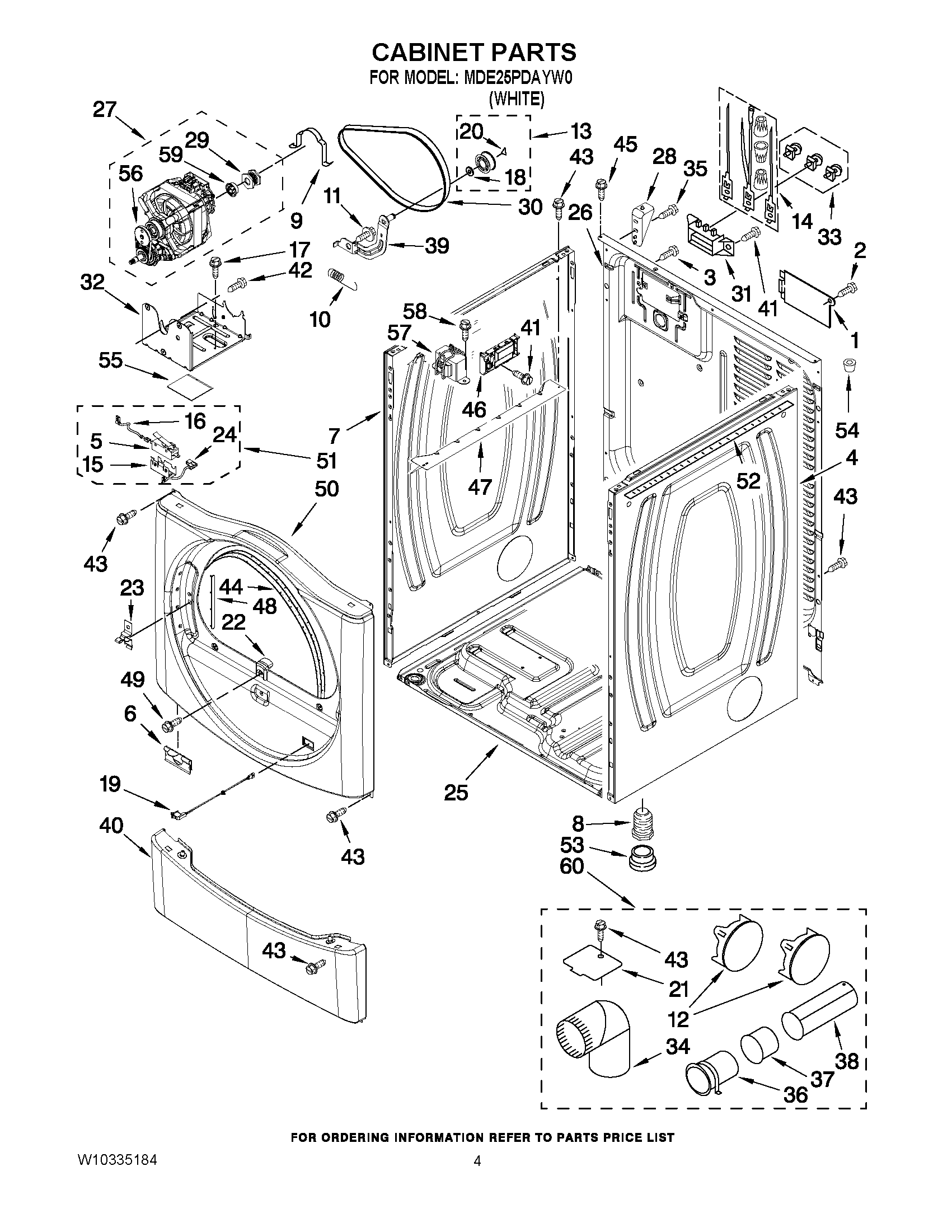

MDE25PDAYW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279818
NI	MAY 279810
1	MAY W10286180
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 8565048
5	Switch, Broken Belt
6	MAY 8519459
7	MAY 8565054
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8564011
16	Wire, Belt (To Protector)
17	SCREW
18	MAY 233520
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	MAY 8539892
25	MAY 8565046
26	MAY 8565059
27	MOTOR ASSEMBLY 60 HZ.
28	MAY W10137398
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY 49026
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	MAY 8540621
42	Bolt, 6-20 x 1 1/4
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY W10166305
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
50	MAY W10117421
51	MAY W10155571
52	SEAL-FOAM (IEC)
53	BOOT, FOOT
54	CONE WEDGE
55	DAPENING PANEL
56	MAY 3405160
57	MAY W10131839
58	MAY 8533971
59	MAY 3393657
